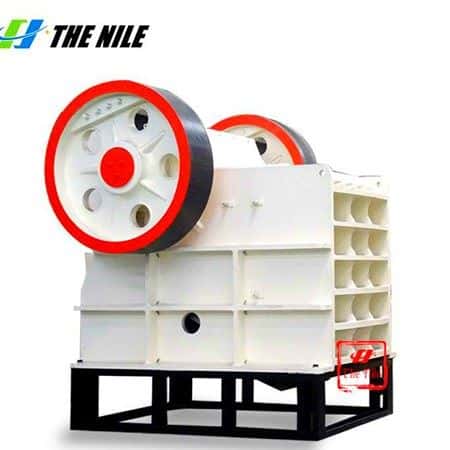

Processing Materials: Stationary jaw crusher is widely applied in industries such as metallurgy, chemical industry, building materials, electric power, and transportation, which mainly used for crushing dolomite, granite, river pebble, quartzite, calcite, and other materials.
Technical Parameters
Model | Max. Feeding size | Discharge size | Capacity | Motor power | Weight | Dimension |
Pe150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
Pe250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
Pe400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
Pe400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
Pe500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
Pe600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
Pe750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
Pe900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
Pe1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
Pex150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
Pex250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
Pex250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
Pex250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
Working Principle of Stationary Jaw Crusher
When the stationary jaw crusher is working, the motor drives the eccentric shaft to rotate through the belt pulley, so that the movable jaw periodically approaches and leaves the fixed jaw, which makes the material changes from large to small by squeezing, rubbing, and grinding multiple times and discharged from the discharge port to complete the crushing.
Performance Advantages of Stationary Jaw Crusher
1. Advanced manufacturing technology and excellent material quality.
Using advanced manufacturing technology and high wear-resistant materials makes the whole jaw crusher equipment is more durable.
2.Special structure, high output, and energy saving. Deepen the "V-shaped" deep cavity, no dead corners, and uniform particle size of the finished product.
3.Reasonable feeding port design and large capacity. The new type of tooth guard increases the effective area of jaw plate crushing and production capacity.
4.High operating efficiency, stability, and reliability. The delicate design of flywheel parameters makes the operation of the jaw crusher machine more stable and reliable.
Technical Parameters of Stationary Jaw Crusher
Model | Max. Feeding size | Discharge size | Capacity | Motor power | Weight | Dimension |
Pe150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
Pe250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
Pe400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
Pe400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
Pe500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
Pe600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
Pe750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
Pe900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
Pe1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
Pex150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
Pex250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
Pex250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
Pex250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
