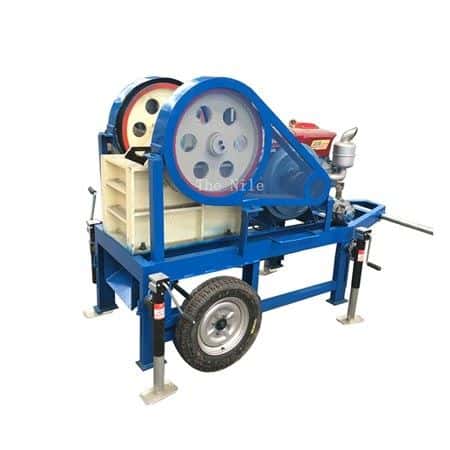

Applied Field: Diesel engine crusher is widely used for crushing various materials like stone, granite, trap rock, coal, manganese ore, iron ore, fused aluminum, oxide, fused calcium carbide, limestone, quartzite, alloys, etc. The application of tires makes the machine more convenient to move and adapt to various applications, especially when mining places lack electricity or need to move machines frequently.
Working Principle of Diesel Engine Crusher

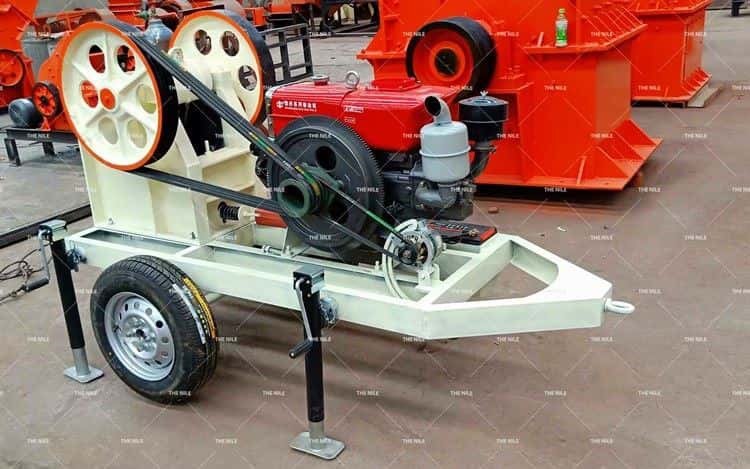

Diesel engine crusher drives the belts and the belt wheel make the movable jaw up and down through the eccentric shaft. Whenthat movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, so that the materials can be crushed. When the angle becomes bigger, the crushed materials are discharged from the crushing chamber.
Advantages of Diesel Engine Crusher
1.Small size. It's more convenient to place, which suitable for small and medium enterprises.
2.Easy maintenance and repair. Due to the simple structure of the diesel engine crusher, it is easy for staff to check and replace parts.
3.Convenient transfer. It can move freely on the sand and gravel field, which adapt to all kinds of the complex working environments. For example, in some areas where electricity cannot be connected, it can be powered by diesel fuel to achieve normal operation of the equipment.
4.Designed and produced by own factory. Diesel engine crusher has been designed and produced by Nile Machinery. It has been years in the making and crafted with the highest care and foresight. This series of diesel engine crusher is the most efficient crusher for small scale crushing projects.
Technical Parameters of Diesel Engine Crusher
Model | Max. feeding size | Discharge size | Capacity | Motor power | Weight |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 |
