Processing Materials: Diesel engine drive jaw crusher max. feeding size is 130-210mm, output size is 10-60mm, capacity is 1-20 tph. It's mainly used for crushing materials including granite, basalt, limestone, river stone, sandstone, iron ore, copper ore, building construction, construction wastes, etc.
Working Principle of Diesel Engine Drive Jaw Crusher

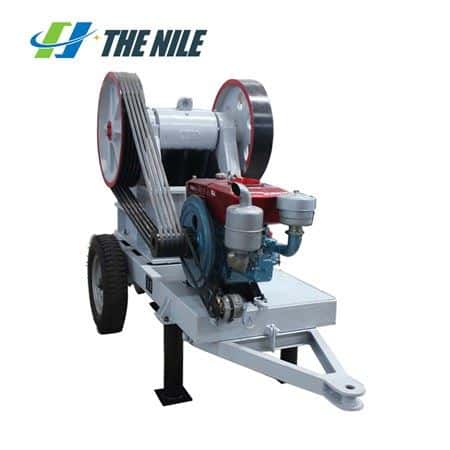

The electromotor of the diesel engine drive jaw crusher drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or split when the movable jaw plate moves towards the fixed jaw together with the movable jaw. When movable jaw and plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while the electromotor rotates continuously and the movable jaw crushes and then discharges the raw material periodically.
Advantages of Diesel Engine Drive Jaw Crusher
1. Long service life and high crushing efficiency.
2. Easy replacement of wearing and spare parts.
3. Less costly and easy to install.
4. Large crushing ratio, uniform product size, simple structure and convenient maintenance
Technical Parameters of Diesel Engine Drive Jaw Crusher
Model | Max. feeding size | Discharge size | Capacity | Motor power | Weight |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 |
