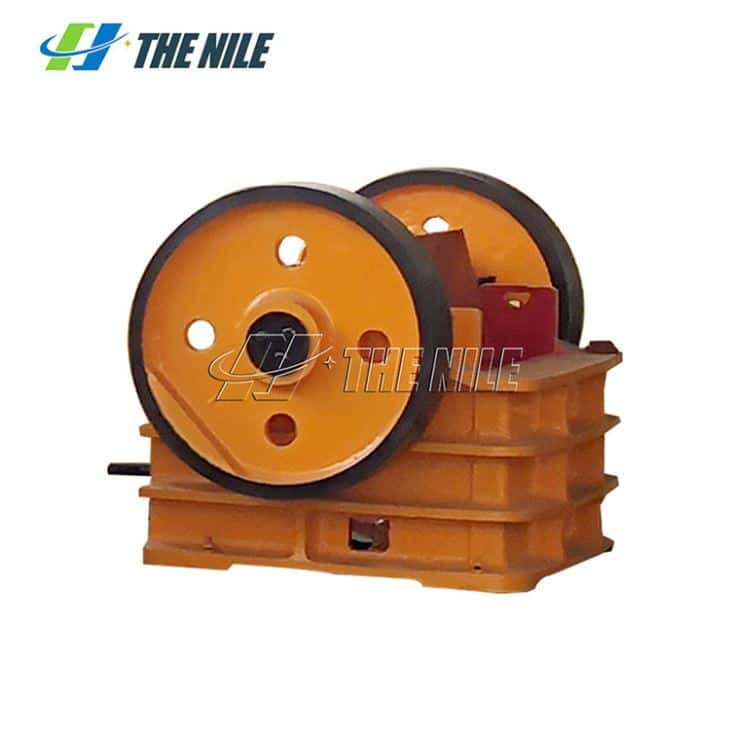

Product Description: Jaw crusher plate is a part of stone jaw crusher which is in direct contact with the ore. Although the structure of the jaw crusher plate is simple, it has a vital impact on the productivity, product size, particle shape and crushing force of the jaw crusher.
1. Material of Jaw Crusher Plate
The jaw crusher plate used in jaw crusher generally adopts manganese 13zgmn13, which is characterized by surface hardening under impact load, forming a hard and wear-resistant surface, while still maintaining the original toughness of the inner metal. Therefore, it is a kind of wear-resistant material widely used in crusher.
2.Modification Planof Jaw Crusher Plate

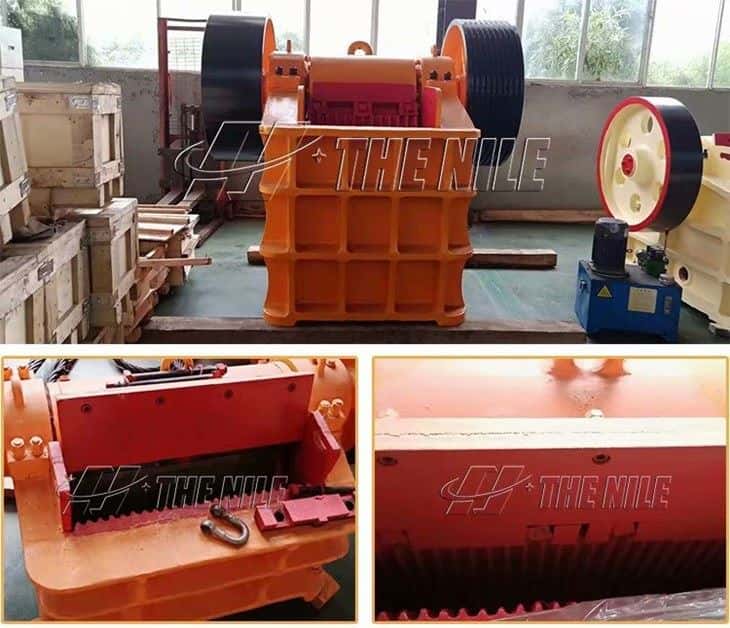

In the transformation, the working part of the jaw crusher is fixed plate and moving plate. The moving plate is fixed on the moving jaw, and its main wear parts are concentrated in the middle part. In the transformation, the movable plate was not modified, mainly the fixed plate. After the transformation of the fixed plate, it's connected with the frame body and increase the weight, which has no adverse impact on the work of the whole crusher.
3.The service life of Jaw Crusher Plate
Thejaw crusherplate bears a lot of impact extrusion pressure, so it is very worn. In order to prolong its service life, we can study it from two aspects: one is to find the material with high wear resistance; the other is to reasonably determine the structural design and geometric size of the jaw crusherplate.
If you want to learn more about thefeatures and performanceof jaw crusher plate, you can leave a message to us or email:mining@nile.ltd,we will reply to you within 24 hours.
Technical Parameters
Model | Max. feeding size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Diemension (mm) |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
PE400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
PE400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
PE500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
PE600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
PE750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
PE900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
PE1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
PEX250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
PEX250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
PEX250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
