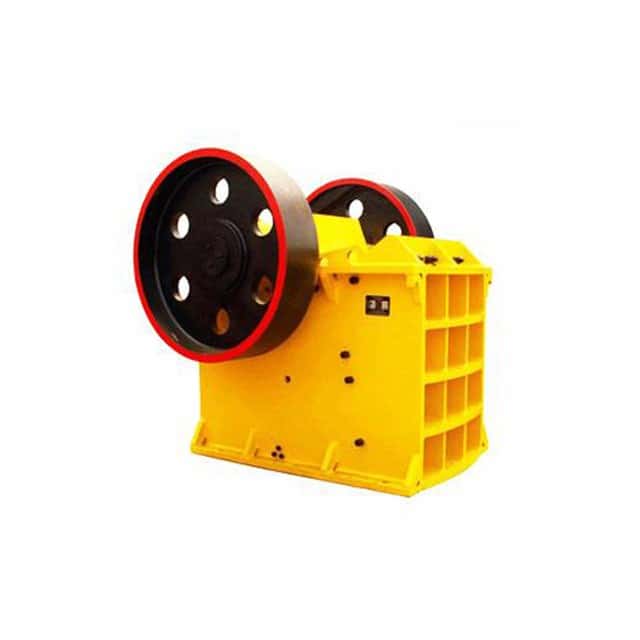

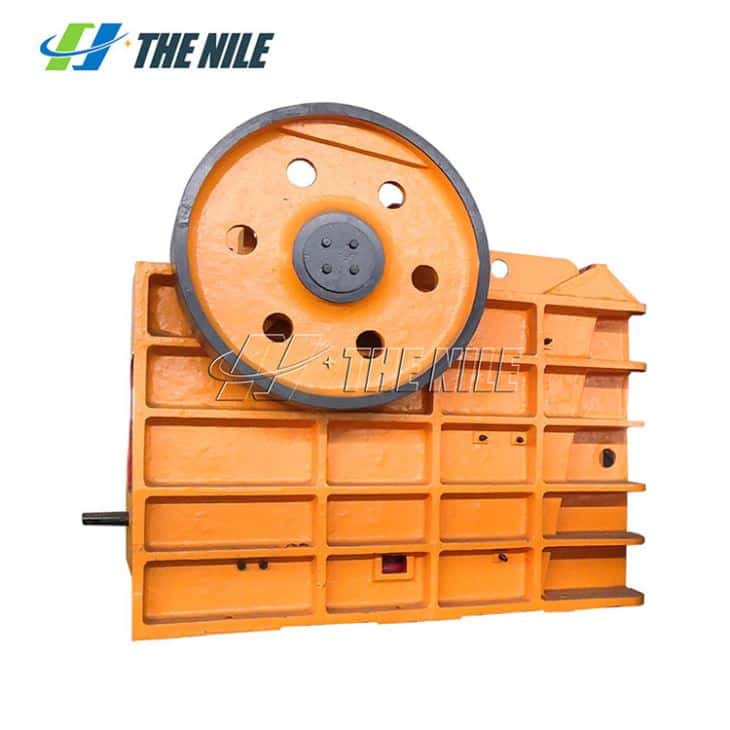

Jaw Crusher 600x900

How to choose a suitable jaw crusher600x900

1. Crushing characteristics and average grade of raw materials

2. The required volume of the final product

3. The size range of the finished product

4. The target percentages of each size range

5. All steps in the balancing process

Disassembly of jaw crusher 600x900

1.First, screw out the baffle bolt of jaw crusher 600x900, cut off the dry oil lubricating oil pipe, hang the thrust plate on the crane hook or other lifting equipment, then release the spring at one end of the horizontal connecting rod, pull the movable jaw to the fixed jaw direction, and take out the thrust plate. If you want to take out the rear thrust plate of jaw crusher 600x900, pull the connecting rod together with the front thrust plate and movable jaw to take out the rear thrust plate.

2.After the thrust plate jaw crusher 600x900 is removed, cut off the thin lubricating oil pipe and the cooling water pipe, support it with a bracket under the connecting rod, and then remove the connecting cap before lifting out the connecting rod.

3.The main shaft of jaw crusher 600x900 should be removed together with pulley and flywheel.

4.Move the motorof jaw crusher 600x900(together with the belt) as close as possible to the jaw crusher along the slide rail, and remove the V-belt. Then lift the shaft with a crane.

5.In order to remove the movable jawof jaw crusher 600x900, the dry oil lubricating oil pipe must be cut off first. Then remove the pull rod, bearing cover, and pull the movable jaw out by using a crane or other lifting equipment.
