Applications Field:Jaw crushing plant can be used during the first stage and second stage crushing unit. The jaw crushing plant is well suited for a variety of applications, including rock quarries, sand, and gravel, mining, construction and demolition recycling, construction aggregates, road and railway construction, metallurgy, and water conservancy.
Working principle

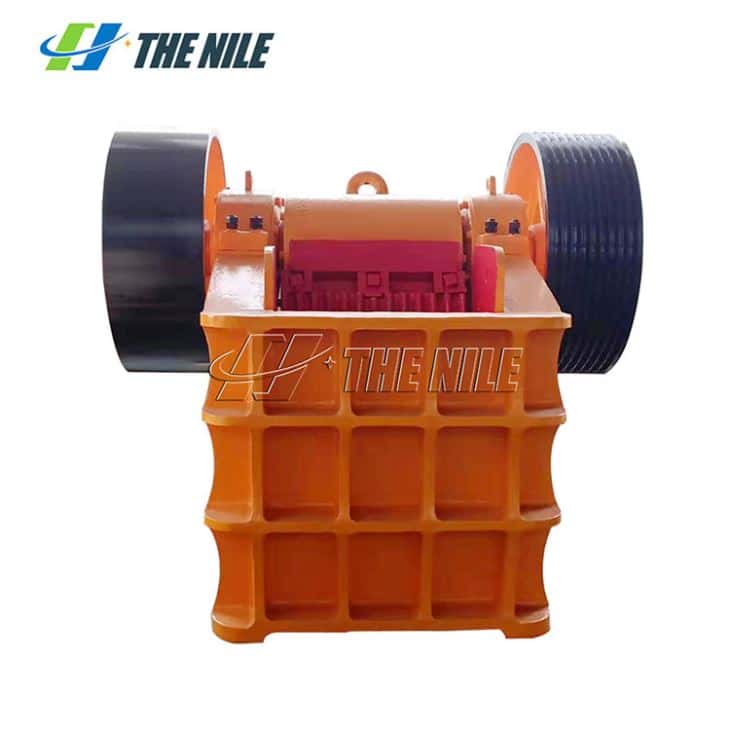

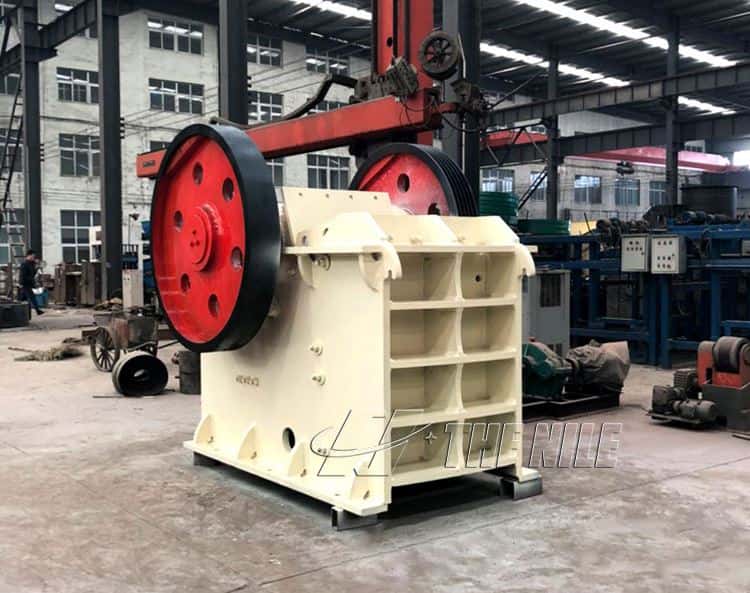

A jaw crushing plant uses compressive force for breaking material. The swing jaw of the jaw crusher moves up and down around the eccentric shaft. When the moving jaw rises, the material is crushed by extrusion, splitting, and impact between the two jaw plates; when the moving jaw goes down, the moving jaw plate leaves the fixed jaw plate, and the crushed material is discharged from the lower opening of the crushing chamber. As the motor rotates continuously, the crushing maneuvering cycle motion crushes and excretes the material to achieve continuous production.
Advantages
1.Easy operation
The structure of the jaw crushing plant is simple, which allows easy operation.
2.Easy Maintenance
The lubrication system of jaw crusher plant has an outstanding performance.
3.Low Cost
The jaw crushing plant price is considered to be cheaper than other stone crushers.
If you want to know our jaw crushing plant price, welcome to contact with us through online customer services, our engineer will provide technicalinformation, specific solution and latest price about our stone jaw crusher for you as soon as possible.
Technical Parameters
Model | Max. feeding size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Diemension (mm) |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
PE400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
PE400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
PE500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
PE600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
PE750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
PE900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
PE1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
PEX250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
PEX250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
PEX250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
