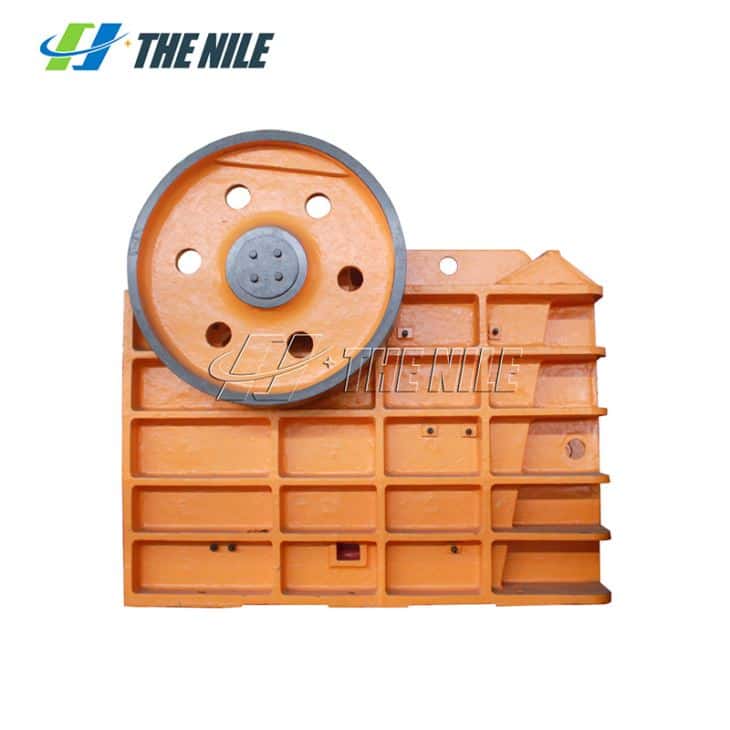

Applied Field: 400x600 Jaw crusher is a piece of ubiquitous crushing equipment, which is widely used in building materials, metallurgy, chemical industry, and other fields. 400x600 Jaw crusher has a very good crushing effect on river pebble, granite, iron ore, quartz stone, and other materials.
Characteristics of 400x600 Jaw Crusher
1. It's small size and less land occupation, which is more suitable for users with limited space.
2. 400×600 Jaw crusher has a large crushing ratio, high efficiency and can do the long-time operation without fault.
3. Energy-saving of single 400×600 jaw crusher is 40% - 50%, which can save electricity cost by 50000-80000 yuan per year.
4. Simple structure, convenient operation, saving maintenance time, and cost.
5. Environmental protection, no pollution, reduce dust, noise, and other pollution problems.
Beside 400x600jaw crusher, we could also provide the mobile jaw crushing plant, jaw crusher Pe600*900,etc according to customers’ requirements. If you want to get more information on our stone jaw crusher price and cone crusher manuals, welcome to contact usby 008615137168510directly!
Technical Parameters
Model | Max. feeding size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Diemension (mm) |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
PE400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
PE400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
PE500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
PE600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
PE750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
PE900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
PE1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
PEX250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
PEX250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
PEX250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
