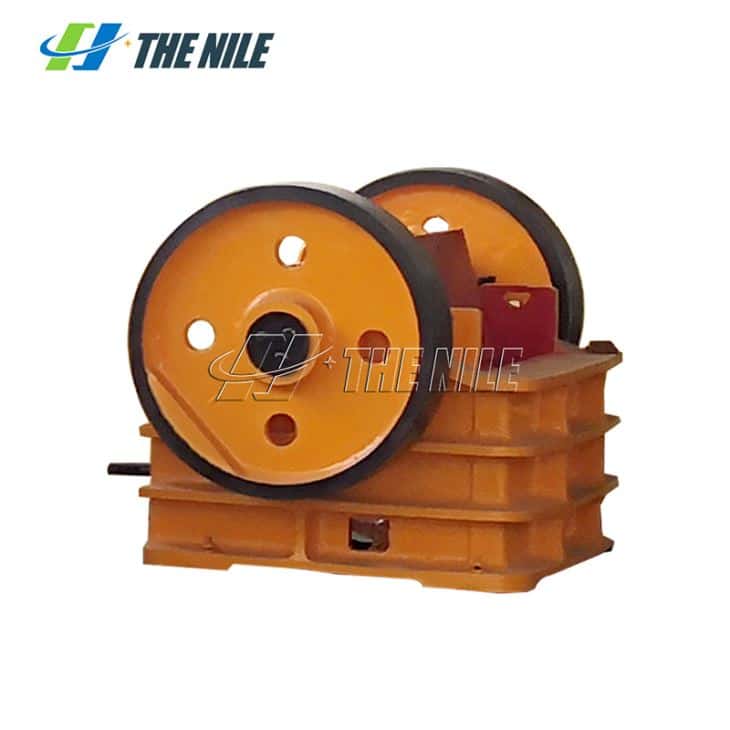

Processing Materials: Jaw crusher mining can process the material which compression strength less than 350MPA like limestone, pebble, basalt, granite, quartz, tailings, slag etc. Applied Field: Jaw crusher mining is widely used in mining, smelting, buliding material, highway, railway, conservancy, chemical industry.
Popular Applications for Jaw Crusher Mining

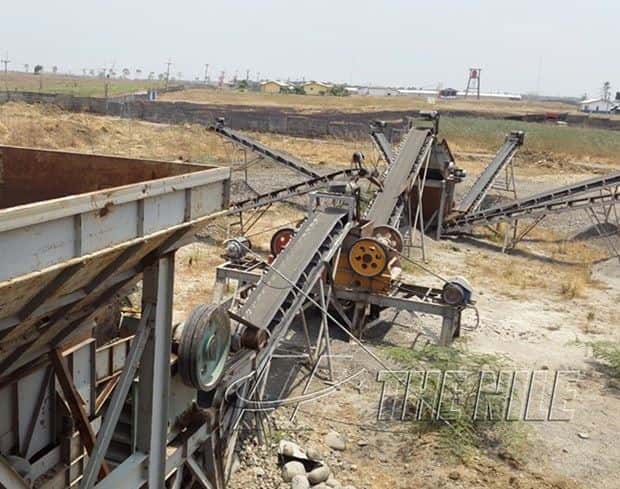

Jaw crusher can be used during the first stage and second stage crushing unit. The jaw crusher is well suited for a variety of applications, including rock quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, road and railway construction, metallurgy and water conservancy.
Price of Jaw Crusher Mining
Generally speaking, the price of jaw crusherminingis affected by many factors such as equipment manufacturer, specification, quality, region, market demand, etc. Different jaw crusher manufacturers have different performance,quality and priceabout jaw crusher mining. Therefore, customers must purchase the jaw crusherfrom regular manufacturers.Nile Machinery specializes injaw crusher mining with 30 years of rich production experienceand provide a one-stop solution for you: Online Inquiry ---Customized Solution ---Fast Shipping--- Full After-sales Service.
Technical Parameters
Model | Max. feeding size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Diemension (mm) |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
PE400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
PE400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
PE500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
PE600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
PE750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
PE900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
PE1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
PEX250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
PEX250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
PEX250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
