The Jaw Crusher Machine can be widely applied in mining, smelting, building materials, highways, etc.

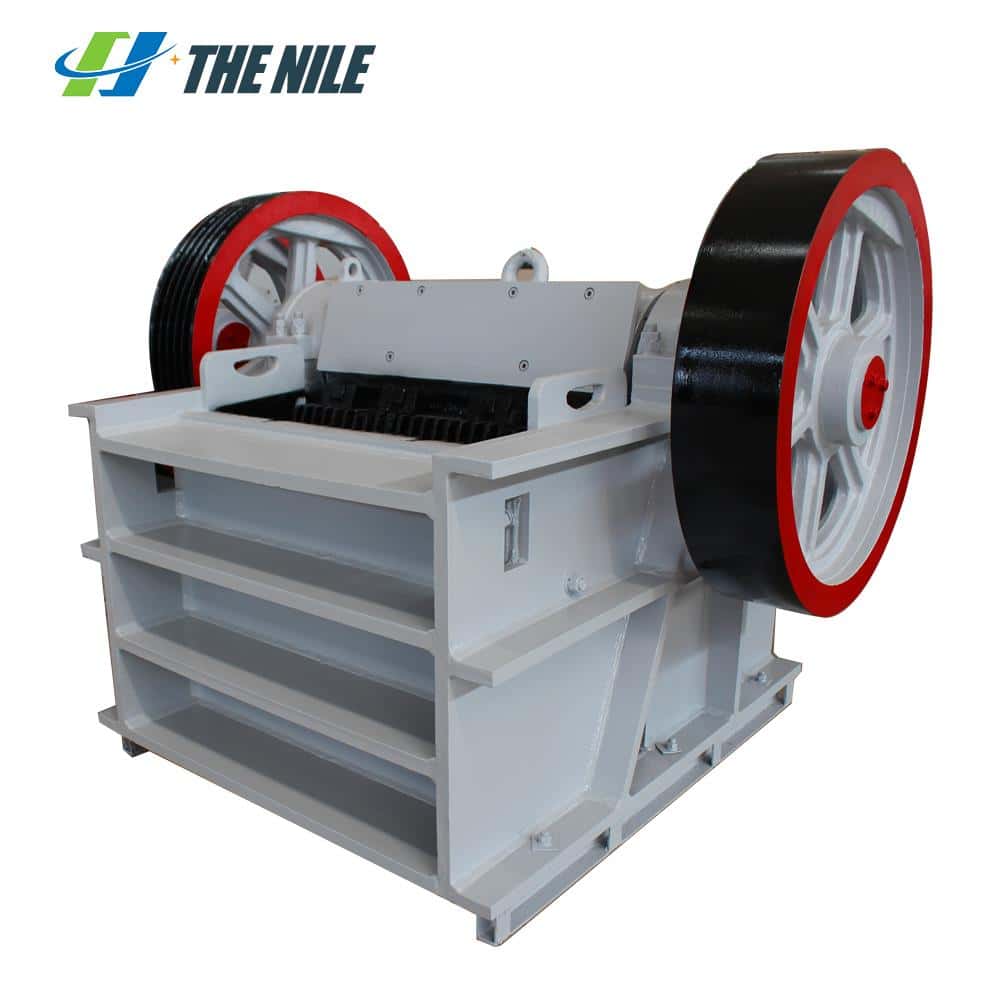

Product Description ofJaw Crusher Machine
This kind of Jaw Crusher Machine is made of high quality material with advanced technology. The wide adjustment range of its discharge port effectively increases the flexibility of the equipment, making itcan meet various production requirements. It uses advanced digital component processing equipment, which makes its internal structure more precise, and the deeper crushing cavity ensures higher production efficiency.
In addition, the Jaw Crusher Machineis designed in strict accordance with the national environmental protection standards, the noise generated during work is low, and the supporting dust removal equipment effectively reduces dust pollution. It also adopts the design of deep V crushing cavity. The cavity is deep but there is no dead zone, the material will not block in the crushing cavity, which can effectively improve the production efficiency.The Jaw Crusher Machine can be widely applied in mining, smelting, building materials, highways, etc.
Benefits ofJaw Crushers
Open back for easilymaintenance
Deep crushing cavity and energy efficiency
Strong stability, long service life
Wide range of the discharging adjustment and multi-purpose
Simple operation, convenient maintenance
Low noise and dust
High crushing efficiency

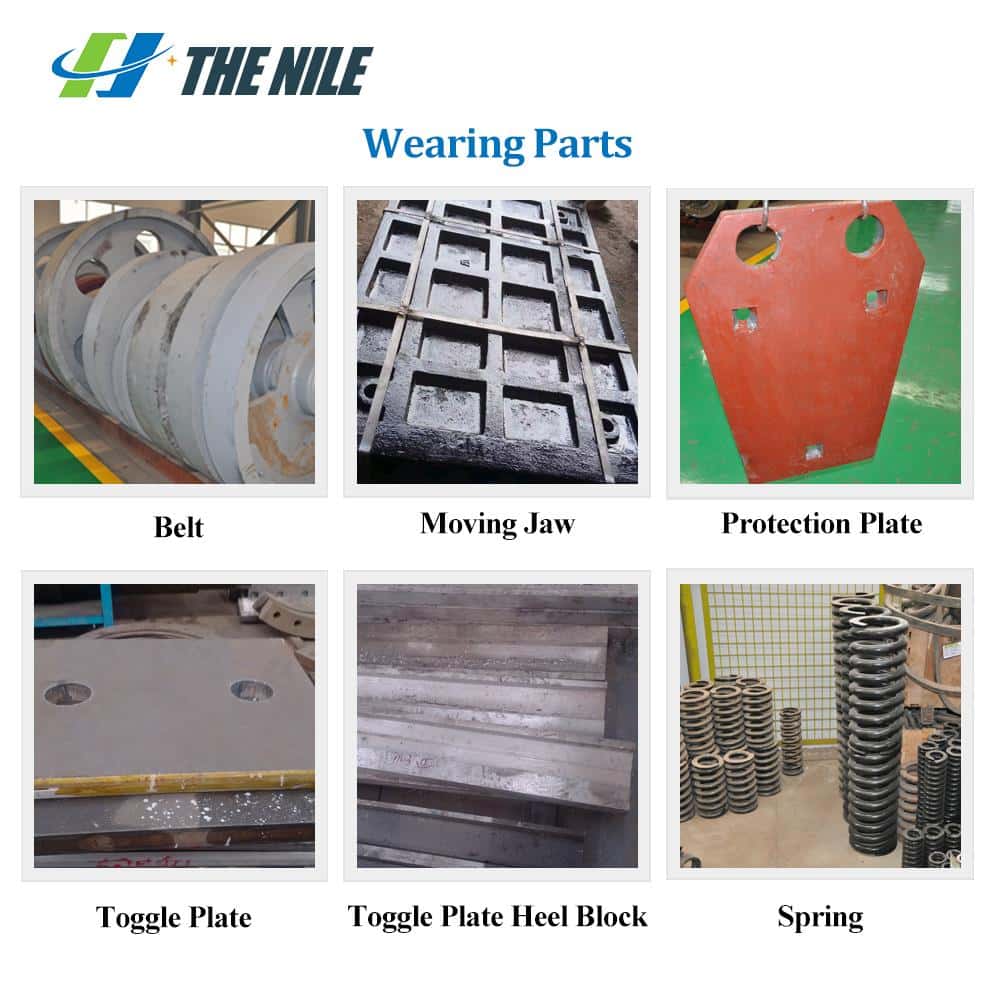

High wear-resistant plates and protection plates
Widely used for crushing process of various metal ores and non-metal ores
Our Customers
Model | Max. feeding size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Diemension (mm) |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
PE400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
PE400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
PE500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
PE600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
PE750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
PE900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
PE1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
PEX250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
PEX250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
PEX250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
