Processing Materials: Jaw stone crusher is widely applied in metallurgy, mining, cement, chemical industry, ceramics, and other industries, as well as water conservancy engineering, highway construction, construction gravel, machine-made sand processing, and other fields. It's suitable for medium and fine crushing of various soft and medium-hard ores and stone materials, such as granite, marble, basalt, limestone, quartzite, river pebble, iron ore, etc.
Technical Parameters
Model | Max. Feeding size | Discharge size | Capacity | Motor power | Weight | Dimension |
Pe150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
Pe250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
Pe400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
Pe400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
Pe500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
Pe600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
Pe750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
Pe900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
Pe1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
Pex150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
Pex250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
Pex250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
Pex250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |

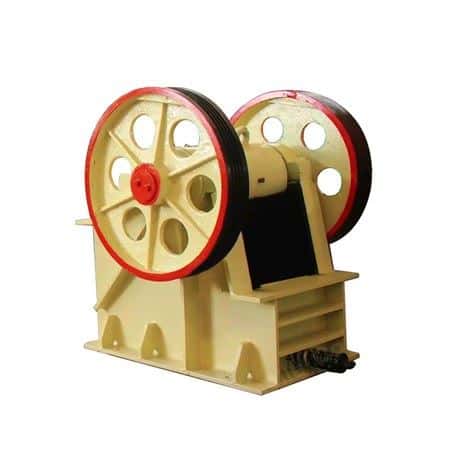

The Structure of Jaw Stone Crusher
Jaw stone crusher is mainly composed of eccentric shaft with stronger bearing capacity, flywheel with better performance, new detachable frame, jaw plate made of manganese steel alloy material, bearing seat with optimized structure, advanced hydraulic adjustment device, centralized lubrication system, and other components, which adopts the bending extrusion crushing mode.
Advantages of Jaw Stone Crusher
1.Stable operation and high output. Compared with other products of the same specification, the output of the jaw crusher can be increased by 30% - 50%.
2.High crushing rate. The thickness of the jaw plate is increased, the crushing force is greatly improved, and the crushing efficiency is effectively improved.
3.Smooth operation. Through the optimization of the overall structure and counterweight part, the operation of the stone jaw crusher equipment is more stable and reliable.
4. Good dustproof effect. The vacuum cleaners of jaw crusher machines are equipped with a dust bag device. When dust enters the filter bag, the dust cloth bag expands rapidly in an instant and shaken off by the opposite direction of the airflow, which makes the dust attached to the bag surface quickly leaves the filter bag, falls into the ash bin, and discharged by the ash unloading valve to achieve the goal of dust removal.
Technical Parameters of Jaw Stone Crusher
Model | Max. Feeding size | Discharge size | Capacity | Motor power | Weight | Dimension |
Pe150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
Pe250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
Pe400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
Pe400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
Pe500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
Pe600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
Pe750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
Pe900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
Pe1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
Pex150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
Pex250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
Pex250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
Pex250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
