Portable Jaw Crusher

Processing Materials: Portable jaw crusher is mainly used for crushing river pebble, granite, limestone, quartz stone, construction waste, iron ore, etc, which is widely applied in mining, smelting, building materials, highways, railways, water conservancy, and chemical industries and many other industries with compressive strength not exceeding 320 MPa.

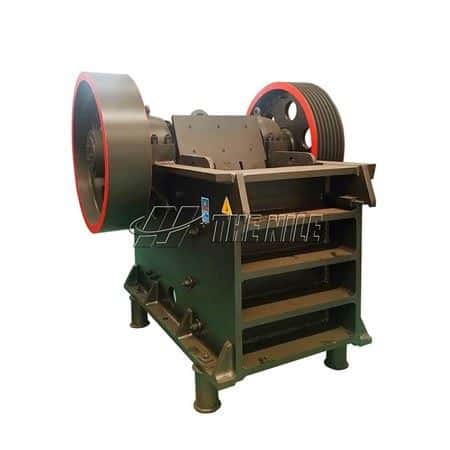

Portable Jaw Crusher

Technical Parameters

Model

Max. Feeding size
(mm)

Discharge size
(mm)

Capacity
(t/h)

Motor power
(kw)

Weight
(t)

Dimension
(mm)

Pe150*250

125

10-40

1-3

5.5

0.7

1000*870*990

Pe250*400

210

20-60

5-20

15

2.8

1300*1090*1270

Pe400*600

340

40-100

16-60

30

7

1730*1730*1630

Pe400*900

340

40-100

40-110

55

7.5

1905*2030*1658

Pe500*750

425

50-100

40-110

55

12

1980*2080*1870

Pe600*900

500

65-160

50-180

75

17

2190*2206*2300

Pe750*1060

630

80-140

110-320

90

31

2660*2430*2800

Pe900*1200

750

95-165

220-450

160

52

3380*2870*3330

Pe1000*1200

850

195-265

315-500

160

55

3480*2876*3330

Pex150*750

120

18-48

8-25

15

3.8

1200*1530*1060

Pex250*750

210

15-60

13-35

30

6.5

1380*1750*1540

Pex250*1000

210

15-60

16-52

37

7

1560*1950*1390

Pex250*1200

210

15-60

20-61

45

9.7

2140*2096*1500

Working Principle of Portable Jaw Crusher

The crushing mode of the portable jaw crusher is curved extrusion. The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the moving jaw rises, the angle between the elbow plate and the moving jaw becomes larger, which promotes the moving jaw plate to approach the fixed direction. At the same time, the material is crushed by extrusion, rubbing, and grinding. When the moving jaw goes down, the angle between the elbow plate and the moving jaw becomes smaller, and the moving jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring. At this time, the crushed materials are discharged from the lower mouth of the crushing cavity.

Portable Jaw Crusher for Sale

Product Advantages of Portable Jaw Crusher

1.The finished product has a good grain shape. When the portable jaw crusher equipment is in the crushing work, the material block forms a large up and down rolling movement at the lower part of the moving jaw, which makes the crushed material easy to be discharged in the shape of a cube, reducing the flake components like in the traditional crushing products, and has the characteristics of good product particle shape and good product quality.

2.Cost saving. Because jaw crusher adopts advanced technology, it can make the crushing parts more impact and improve the striking efficiency. The structure of portable jaw crusher is compact and its operation is simple in the production process, so does not need too many workers and reduces the labor force of workers, which can save a certain amount of cost for customers.

3. High production volume. Compared with the crushing equipment of the same scale, the stone jaw crusher not only has a lighter weight, fewer components, and more compact structure, but also has a better degree of filling in the crushing cavity, the loaded material blocks are evenly crushed, and the lower end of the movable jaw is forced to push out the finished product for discharge, so the productivity is higher, which is 30-45% higher than that of the crushing equipment of the same specification.
