Processing Materials: Secondary impact crusher can crush all kinds of coarse, medium, and fine materials (granite, limestone, concrete, etc.) with feed particle size no more than 500 mm and compressive strength no more than 350 MPa, which is widely used in various ore crushing, railway, highway, energy, cement, chemical industry, construction, and other industries.

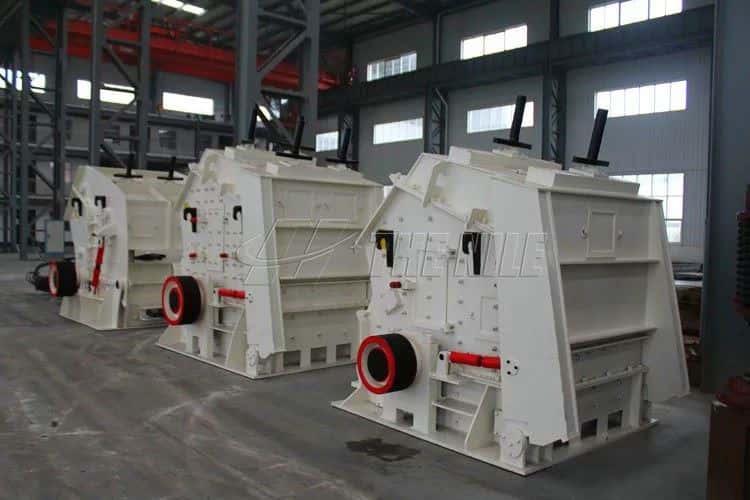

Introduction of Secondary Impact Crusher
Secondary impact crusher is a sand production line equipment, mainly used for coarse, medium, and fine crushing of limestone, burnt lime, basalt, granite, calcium carbide, concrete, slag, cement block, and other materials to produce sand and gravel aggregates. It is widely used in construction materials, railway, highway roadbed, hydropower dam area construction, and construction industry.
Advantages of Secondary Impact Crusher
1.Secondary impact crusher adopts high strength / high chromium material with high hardness and strong wear resistance, which can effectively improve the service life of the equipment.
2.Adopting a unique tooth-shaped counterattack liner. The secondary impact crusher using toothed plates is especially suitable for hard rock crushing, saving energy, and high yield.
3.The finished aggregate has a good grain shape. The stone is broken by a Secondary impact crusher into cube stone, which is used in building construction, highway subgrade construction, water conservancy project, and so on.
4.The price of a Secondary impact crusher is low.
Technical Parameters of Secondary Impact Crusher
Model | Rotor Size | Feed Openning Size | Max. Feeding Size | Output Size | Capacity | Motor Power |
PF-0607 | 644*740 | 320*770 | 100 | 5-60 | 10-20 | 30 |
PF-0807 | 850*700 | 400*730 | 300 | 5-60 | 15-30 | 30-45 |
PF-1008 | 1000*800 | 400*830 | 300 | 5-60 | 30-50 | 37-55 |
PF-1010 | 1000*1050 | 400*1080 | 350 | 5-60 | 50-80 | 55-75 |
PF-1210 | 1250*1050 | 400*1080 | 350 | 5-60 | 70-120 | 110-132 |
PF-1212 | 1250*1250 | 400*1300 | 350 | 5-60 | 100-120 | 132-160 |
PF-1214 | 1250*1400 | 400*1430 | 400 | 5-60 | 130-180 | 160-200 |
PF-1315 | 1320*1500 | 680*1520 | 400 | 5-60 | 160-250 | 180-260 |
PF-1320 | 1320*2000 | 680*2030 | 400 | 5-60 | 300-350 | 300-375 |
