Applied Field: Horizontal shaft impact crusher can crush all kinds of coarse, medium and fine cubic materials, such as granite, limestone and concrete, etc, which is widely used in the secondary and tertiary crushing of various ores and medium-hard materials such as railway, highway, energy, cement, etc., and construction industry.

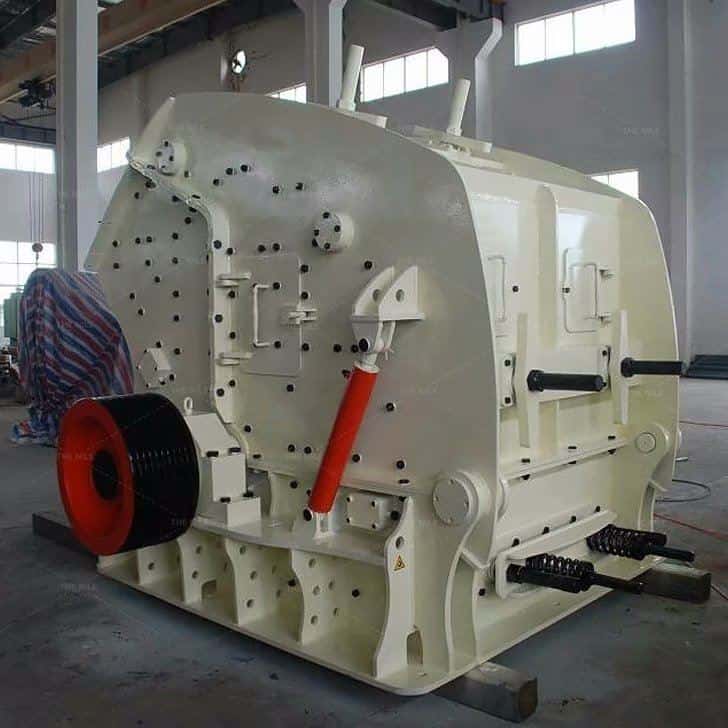

Introduction of Horizontal Shaft Impact Crusher
The horizontal shaft impact crusher can produce good cubic grain shape products with the latest manufacturing technology and unique structural design.
Advantages of Horizontal Shaft Impact Crusher
1.The horizontal shaft impact crusher has easy maintenance and reliable performance.
2.The horizontal shaft impact crusher has a unique and simple structure.
3.The horizontal shaft impact crusheris equipped with a high chromium or high manganese hammer and special impact liner.
4.The horizontal shaft impact crushercan efficiently crush hard rock while saving energy.
5.The open discharge design of horizontal shaft impact crusher can solve virtually any size reduction problem.

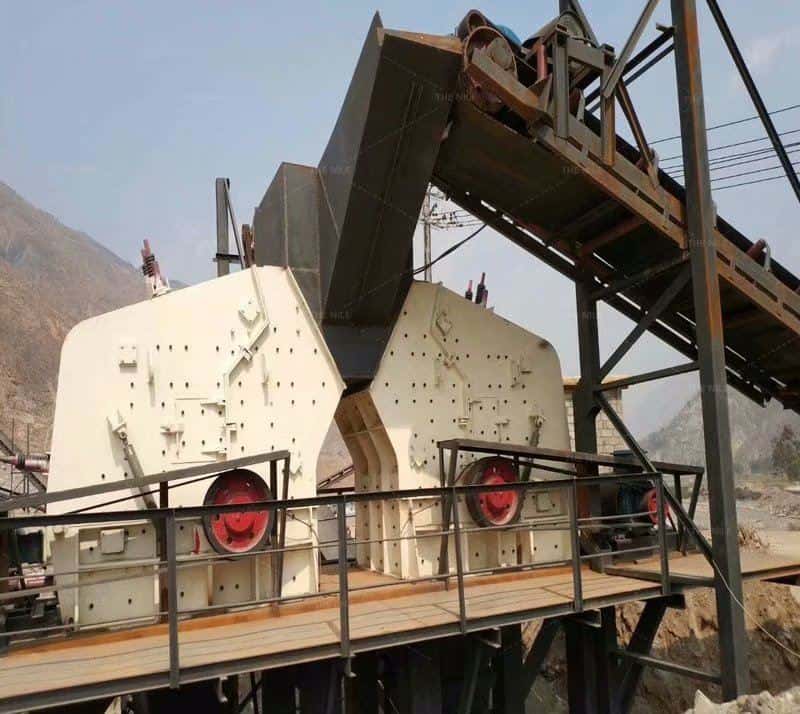

6.The crushing system of horizontal shaft impact crusher has been successfully proved in many applications: coal, mine, underground and underground, natural stone, recycled concrete, and building debris.
Model | Rotor Size | Feed Openning Size | Max. Feeding Size | Output Size | Capacity | Motor Power |
PF-0607 | 644*740 | 320*770 | 100 | 5-60 | 10-20 | 30 |
PF-0807 | 850*700 | 400*730 | 300 | 5-60 | 15-30 | 30-45 |
PF-1008 | 1000*800 | 400*830 | 300 | 5-60 | 30-50 | 37-55 |
PF-1010 | 1000*1050 | 400*1080 | 350 | 5-60 | 50-80 | 55-75 |
PF-1210 | 1250*1050 | 400*1080 | 350 | 5-60 | 70-120 | 110-132 |
PF-1212 | 1250*1250 | 400*1300 | 350 | 5-60 | 100-120 | 132-160 |
PF-1214 | 1250*1400 | 400*1430 | 400 | 5-60 | 130-180 | 160-200 |
PF-1315 | 1320*1500 | 680*1520 | 400 | 5-60 | 160-250 | 180-260 |
PF-1320 | 1320*2000 | 680*2030 | 400 | 5-60 | 300-350 | 300-375 |
