High-efficiency fine crusher, also known as new type fine crusher. The machine has a wide range of uses and is practical and reliable. It is especially suitable for the production of refractory materials, cement, quartz sand, steel sand, and other hard and brittle materials. The high-efficiency fine crusher machine is a high-efficiency and energy-saving crushed stone sand-making equipment.
Product description:
The high-efficiency fine powder crusher is currently the most effective and reliable stone crushing machine. It is widely used in the production of high-quality stone materials in machine-made artificial sand, highway, railway, water conservancy, airports, construction, cement, refractory, metallurgy, and other industries.
Features of high-efficiency fine crusher for sale:
1. High output and uniform crushing particle size
2. The wearing parts are made of high-quality steel, and the hammer is more durable.
3. Long product life and low maintenance cost
4. Simple structure and convenient operation

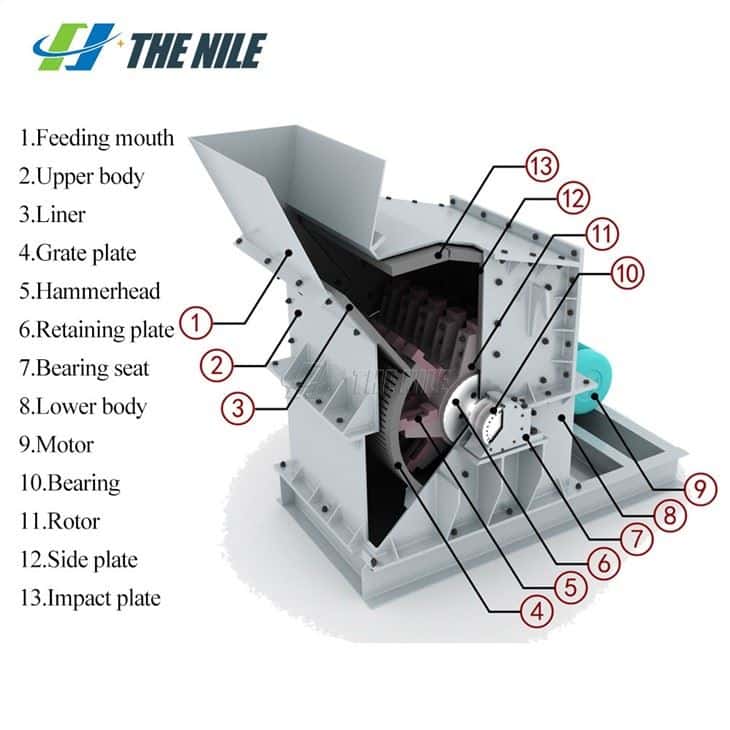

The working principle of the high efficiency fine grinding crusher：
The materials to be crushed enter the crushing cavity of the high-efficiency fine stone crusher one by one and fall on the high-speed rotating movable hammerhead. After the impact between the hammer and the counterattack plate, the material is crushed for the first time in the hammering zone. After the material has been repeatedly hammered and counterattacked with high-frequency many times, it descends to the middle partition, forming accumulation, slipping, and falling on the high-speed rotating material thrower. Then it is thrown to the counter-attack plate at high speed to collide, fall and fall. Forced counterattack, crushing, and grinding are carried out by the movable plate hammer. Therefore, the material undergoes multiple compound crushing, scouring, and grinding during the process of falling under its own weight. So as to achieve the ultra-fine effect.
Company strength:
The Nile Machinery Co., Ltd. is committed to designing more than 10 types of equipment including stone crushing equipment, gold beneficiation equipment, mineral ore beneficiation equipment, and sand making equipment, which are widely used in electric power, metallurgy, mining, quarry, and other industries. The products are exported to all parts of the world, especially in Europe, America, Asia, and Africa, and are well received by customers.
| Model | Quantity of hammers | input size | power | capacity | dimension |
| mm | kw | t/h | m | ||
| 800*400 | 860 | ≤40 | 37-45 | 10-20 | 2.1*1.4*1.7 |
| 800*600 | 860 | ≤50 | 45-55 | 15-25 | 2.1*1.62*1.7 |
| 800*800 | 860 | ≤60 | 45-55 | 20-30 | 2.1*1.84*1.96 |
| 1010*1010 | 720 | ≤80 | 55-75 | 40-60 | 2.1*1.84*1.96 |
| 1200*1000 | 590 | ≤100 | 90-110 | 50-70 | 2.45*1.6*1.96 |
| 1200*1200 | 590 | ≤100 | 110-132 | 70-109 | 3.0*2.16*2.5 |
| 1400*1400 | 540 | ≤120 | 132-160 | 120-160 | 3.0*2.36*2.55 |
| 1600*1600 | 460 | ≤120 | 220-250 | 160-200 | 3.0*2.76*2.5 |
| 1800*1800 | 420 | ≤150 | 280-315 | 200-240 | 3.0*3.26*3.15 |
