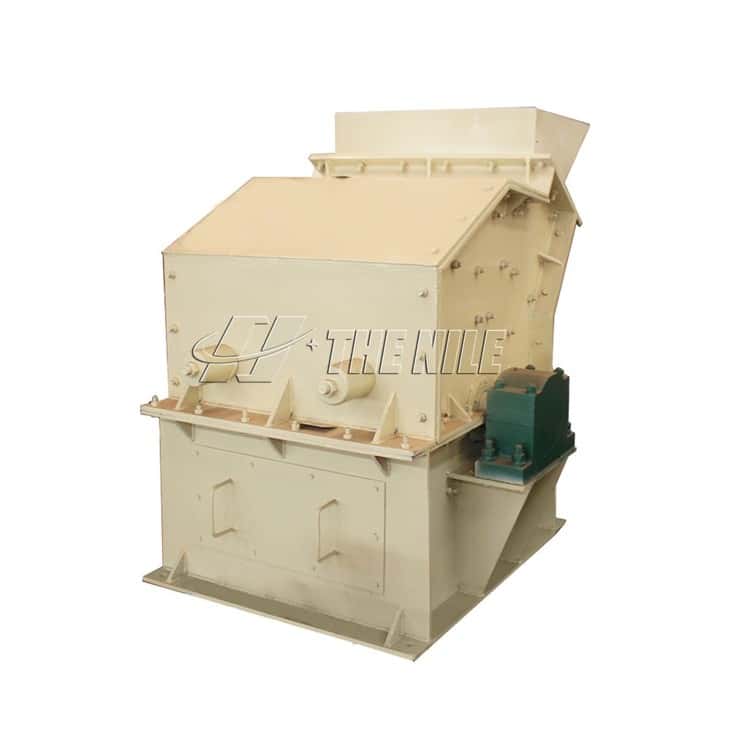

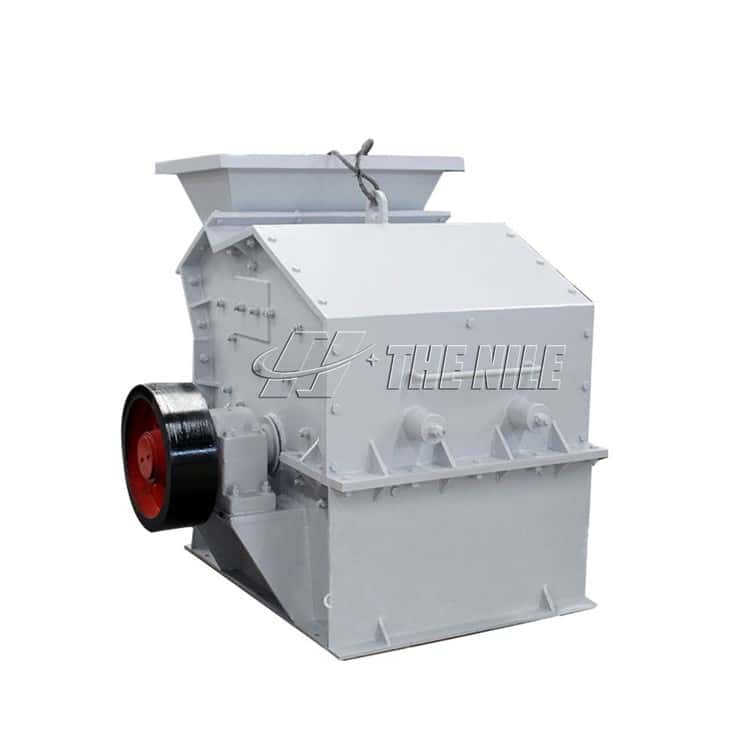

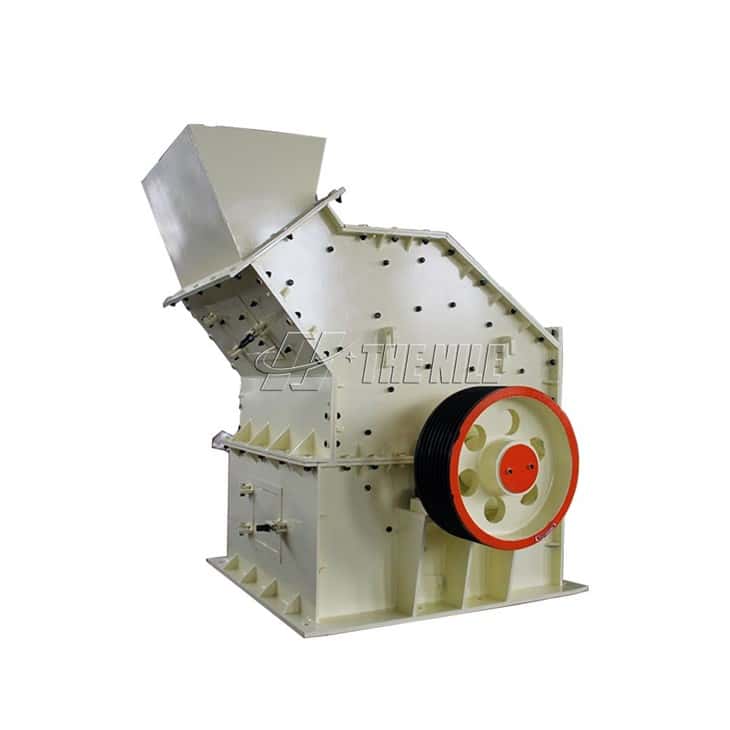

The high-efficiency fine crushing machine, also known as the new type fine crusher, is the most effective and reliable stone crushing machine at present. It is widely used for fine crushing and medium crushing of various hard and brittle materials such as cement, refractory materials, quartz sand, steel sand, and so on.
Product description

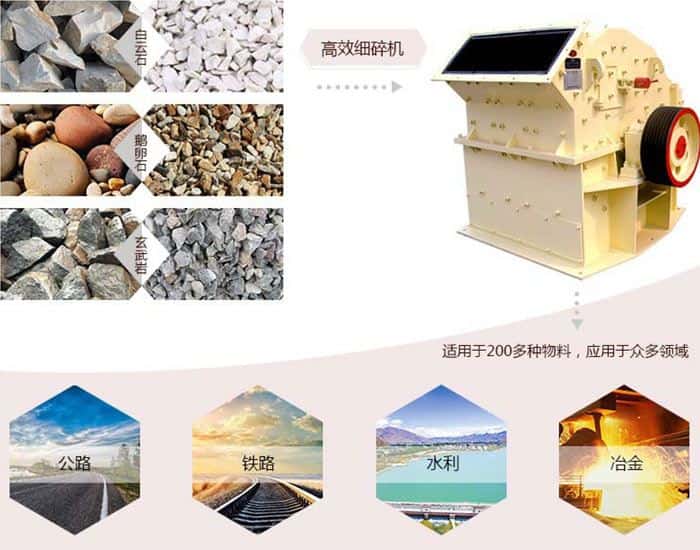

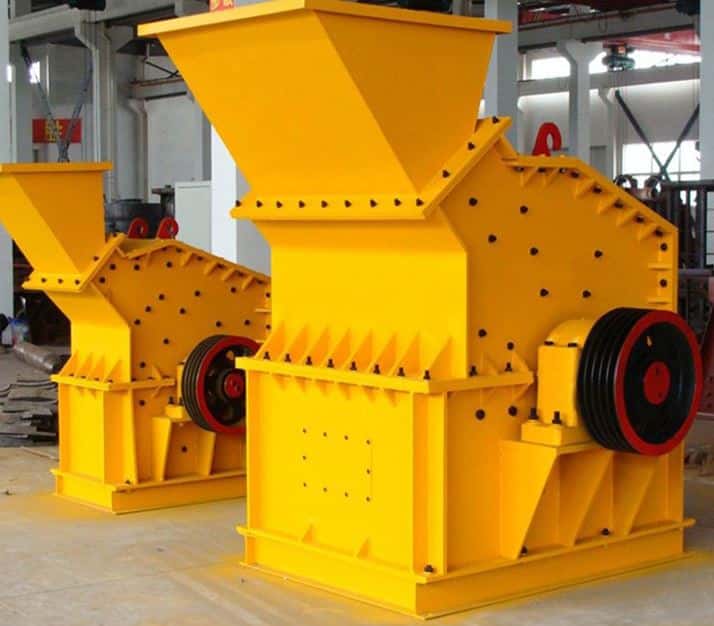

The high-efficiency fine crushing machine is developed by our technical department combining the working principles of various types of fine crushers and user needs. The fine crusher not only has high work efficiency but also has a long service life, and is widely used in the production of high-quality stone materials in industries such as highways, railways, construction, metallurgy, and mining.
The working principle of the fine stone crusher
The fine crusher machine is continuous operation equipment. The materials to be crushed enter the crushing cavity of the fine crusher one by one, and the hammer on the rotor of the fine crusher first crushes the materials. After being repeatedly hammered and counter-attacked with high frequency, the material drops to the middle partition, forming accumulation and slipping, and then it falls on the high-speed rotating material throwing plate, and then it is thrown to the counter-attack plate at high speed to collide and fall. And the movable plate hammer is forced to counterattack, crush and grind, and the materials that meet the requirements are discharged from the discharge port.
Features of high efficiency fine crushing machine:

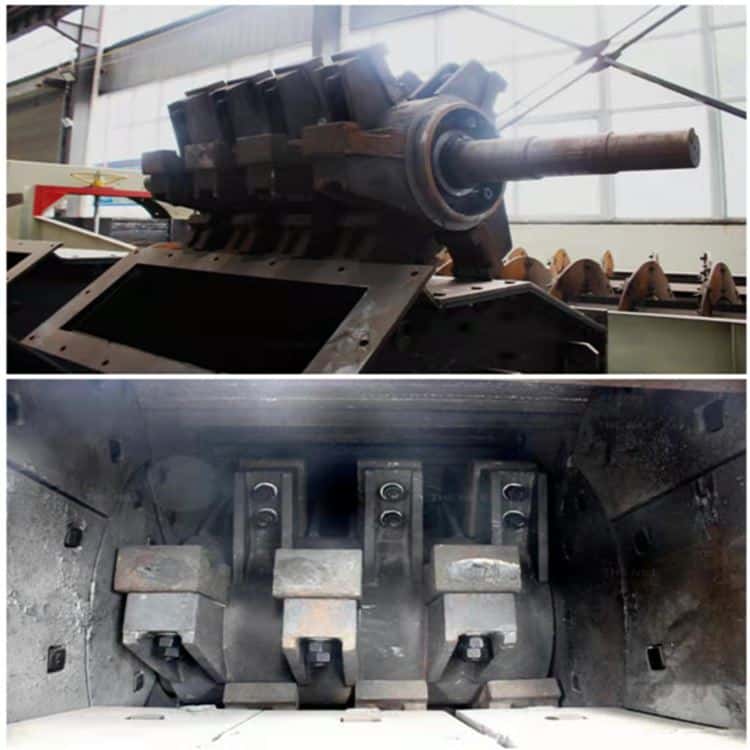

1. The wearing parts of the high-efficiency fine stone crusher are made of high-quality steel, and the hammer has stronger wear resistance
2. High working efficiency, with two functions of fine crushing and coarse grinding
3. The product has a good grain shape and few needle-like materials.
4. Low working noise, low dust pollution, energy-saving, and environmental protection.
The structure of the high-efficiency fine crusher for sale:

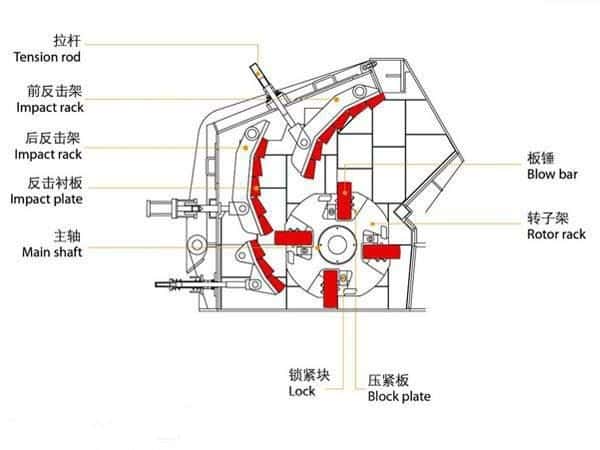

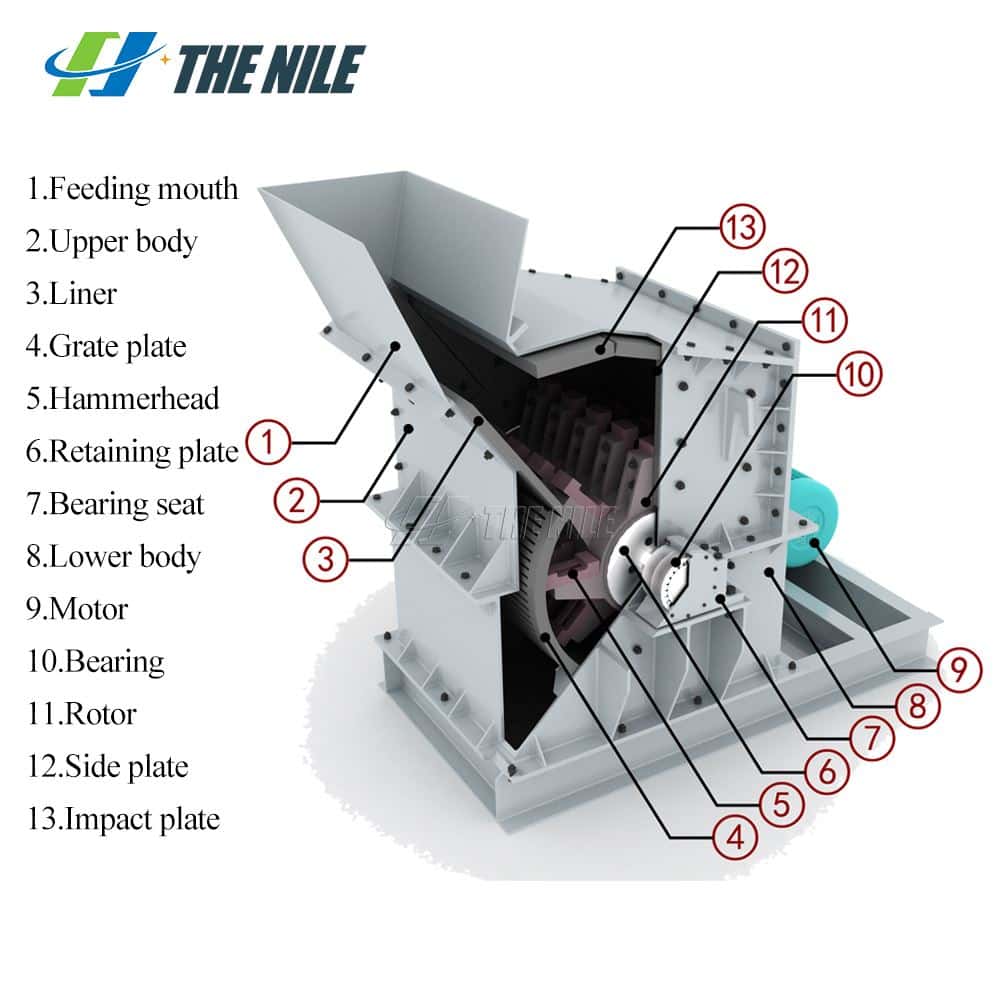

The fine crusher is mainly composed of a counterattack plate device, a sidelining plate, a front lining plate device, a sieve plate device, a counterattack plate, and upper and lower shells.

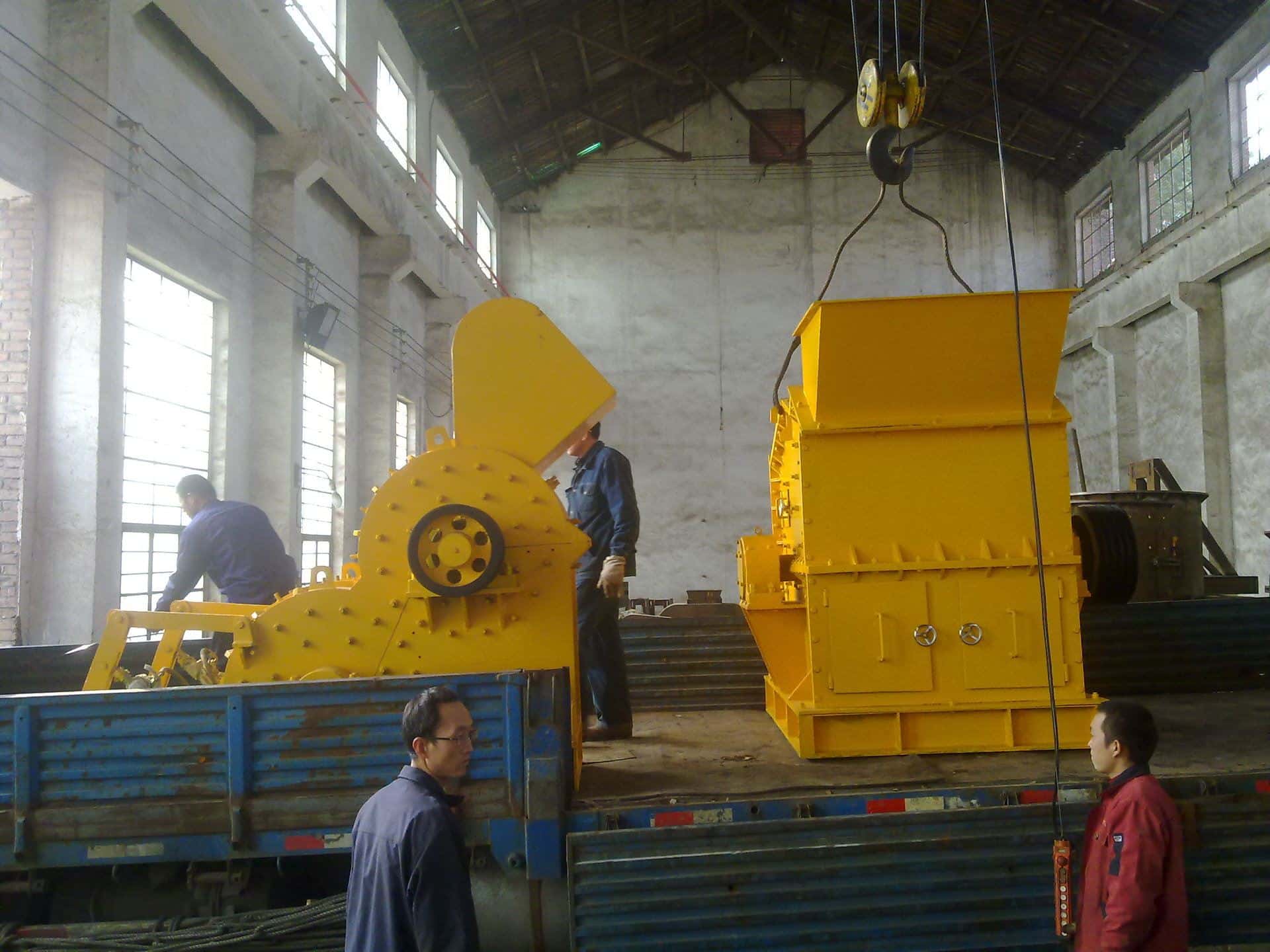

Packaging and shipping
Customer visit
Company Profile:

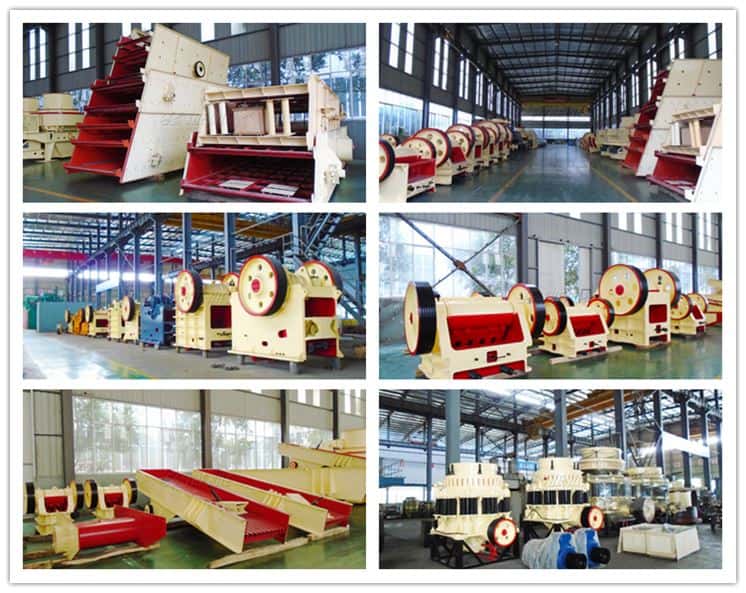

The Nile Machinery Equipment Co., Ltd. is a metallurgical machinery professional machinery factory that specializes in mining equipment research and development, manufacturing, sales, and provides professional mining processing plant workflow design, plant installation, equipment maintenance, and mineral processing technical guidance services. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Uganda, Mozambique, South America, the Middle East, and many other countries and regions. At present, we have established our own overseas warehouses in Sudan and Kenya, and we also have our offices in most parts of Africa. You can observe the machinery up close and buy directly, saving transportation costs and time.
Overseas service:
1. We have engineers in Kenya, Sudan, and Uganda, they will provide professional installation and training skills.
2. We have factories and warehouses in Kenya and China. When your wearing parts are damaged, you can go directly to the factory to buy them, which is convenient and quick.
3. Our products have been distributed all over China and exported to Europe, America, Asia, and African countries. Our sales managers and engineers know the local situation very well, and we will provide you with the most suitable solution.
| Model | Quantity of hammers | input size | power | capacity | dimension |
| mm | kw | t/h | m | ||
| 800*400 | 860 | ≤40 | 37-45 | 10-20 | 2.1*1.4*1.7 |
| 800*600 | 860 | ≤50 | 45-55 | 15-25 | 2.1*1.62*1.7 |
| 800*800 | 860 | ≤60 | 45-55 | 20-30 | 2.1*1.84*1.96 |
| 1010*1010 | 720 | ≤80 | 55-75 | 40-60 | 2.1*1.84*1.96 |
| 1200*1000 | 590 | ≤100 | 90-110 | 50-70 | 2.45*1.6*1.96 |
| 1200*1200 | 590 | ≤100 | 110-132 | 70-109 | 3.0*2.16*2.5 |
| 1400*1400 | 540 | ≤120 | 132-160 | 120-160 | 3.0*2.36*2.55 |
| 1600*1600 | 460 | ≤120 | 220-250 | 160-200 | 3.0*2.76*2.5 |
| 1800*1800 | 420 | ≤150 | 280-315 | 200-240 | 3.0*3.26*3.15 |
