1. Feeding size: 120mm-300mm
2. More than 90% of final products below 5mm
3. Even particle size, higher output, more durable plate hammer
4. Lower motor power, don't need thirdly crushing
5. Simple structure,easy maintenance and stable running

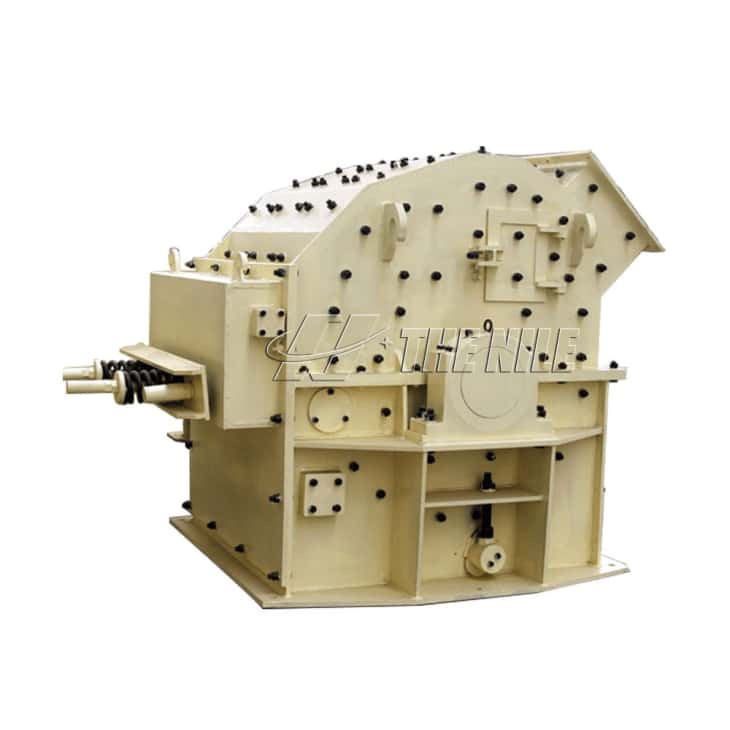

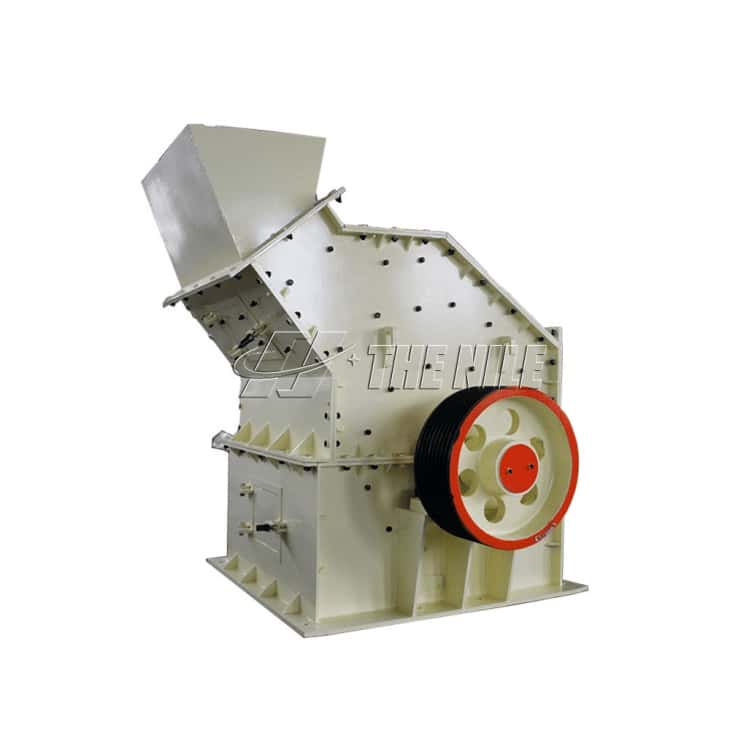

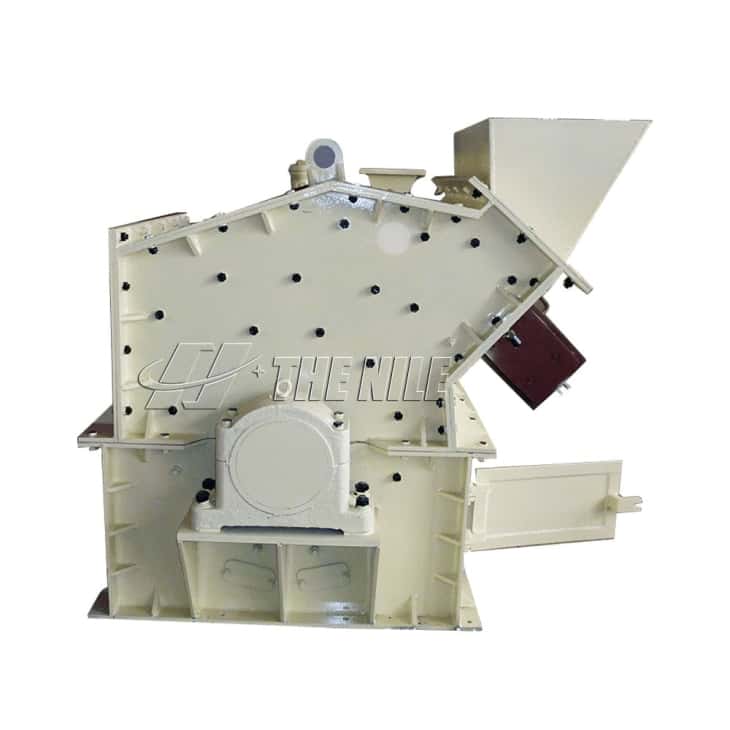

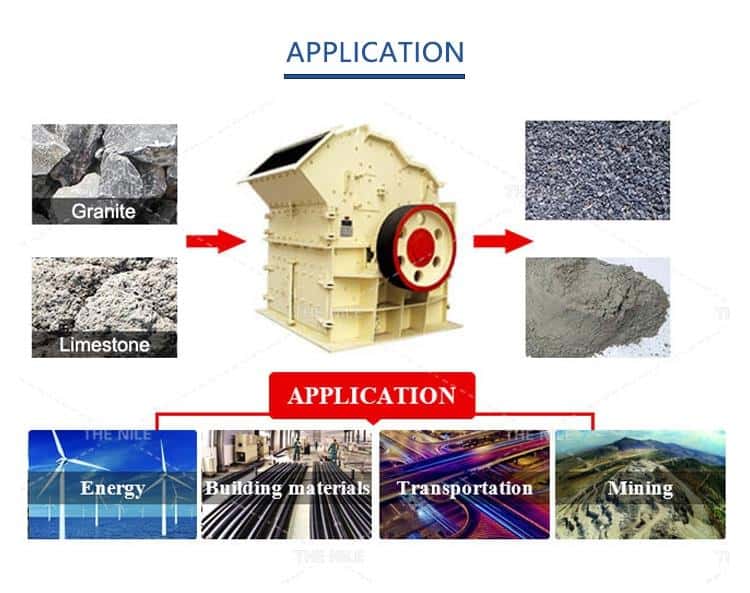

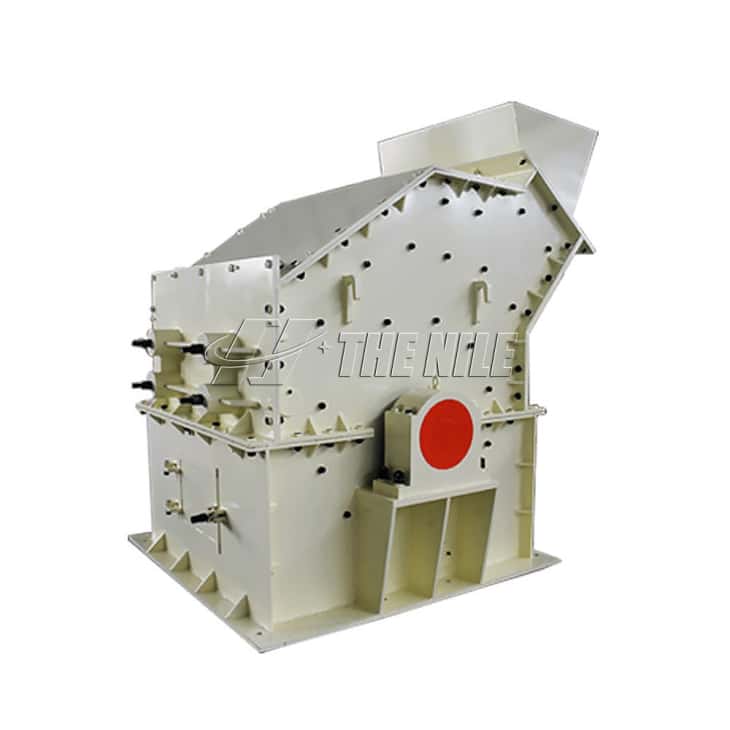

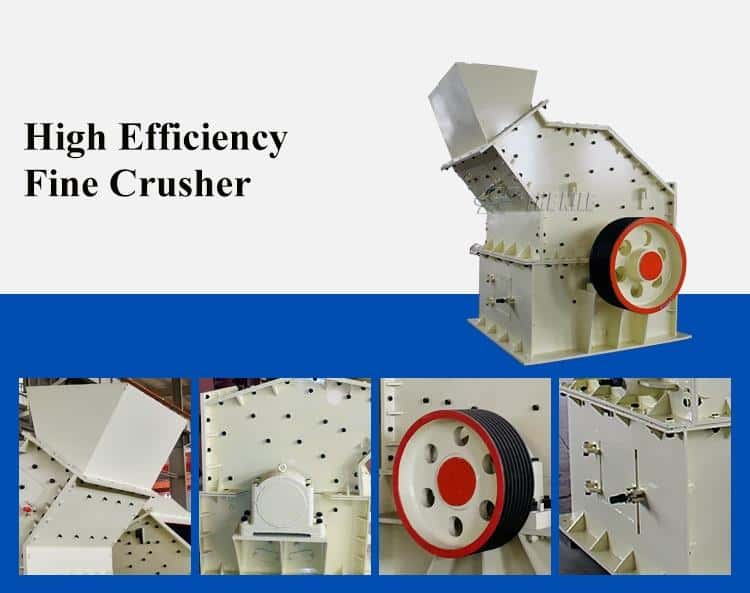

High efficiency fine crusher with good quality factory price High-efficiency fine crusher, also known as fine crusher, is especially suitable for making fine and medium crushed gravel, refractories, cement, quartz sand, steel sand and other hard and brittle materials. It is an efficient and energy-saving sand making equipment. Compared with the traditional fine crusher, it is a more advanced, effective, reliable and practical fine crusher equipment, and it is also the best-selling equipment. |
Main Features
1. Feeding size: 120mm-300mm
2. More than 90% of final products below 5mm
3. Even particle size, higher output, more durable plate hammer
4. Lower motor power, don't need thirdly crushing
5. Simple structure,easy maintenance and stable running

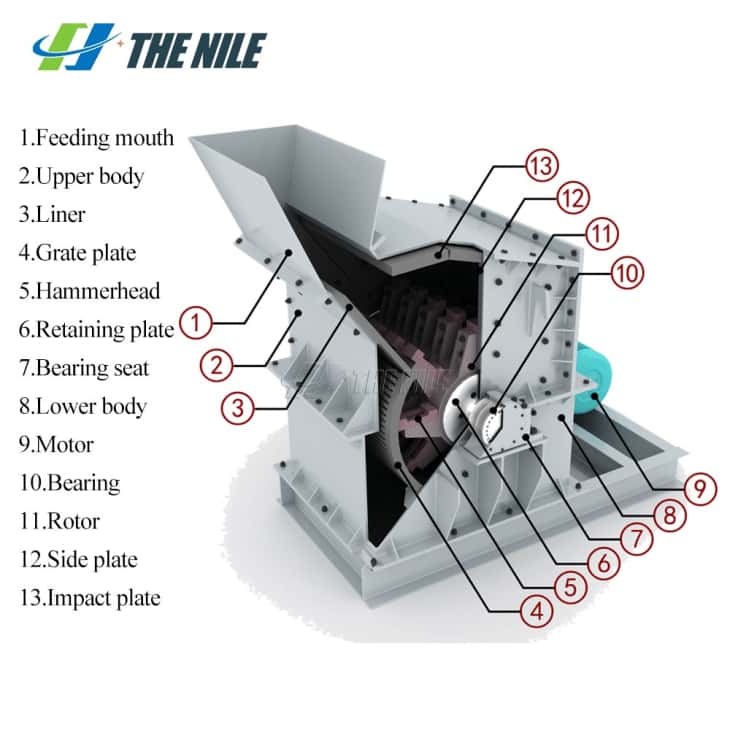

Working Principle When the Fine Crusher is working, materials are crushed primarily in the first crushing chamber by the high speed moving rotor against the hammer, and then enter the secondary chamber for fine crushing, at last, the final materials are discharged. |

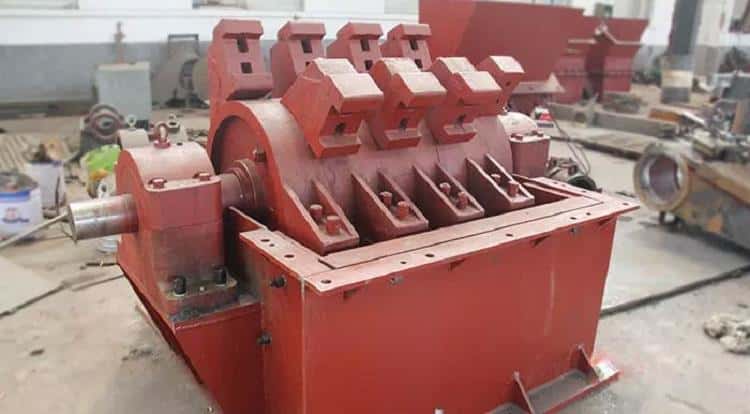

Details
Packing&Shipping
Standard package in wooden boxes or containers
Our Service ● Pre-sales service: We provide you with prophase plan, process flow design and manufacturer equipment according to your special needs. ● Sales service: Send technicians to your site guiding the installation and adjustment, training operators and finishing the check and accept together with you. ● After-sales service: To establish long term friendship, we will pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free. ● Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term. |
Model | Feed Size | Output Size | Capacity | Motor Power | Rotor speed | Dimension |
800*400 | ≤120 | ≤10 | 30-40 | 37-45 | 860 | 2.1*1.4*1.7 |
800*600 | ≤180 | ≤10 | 40-50 | 45-55 | 860 | 2.1*1.62*1.7 |
800*800 | ≤180 | ≤10 | 50-70 | 45-55 | 860 | 2.1*1.84*1.96 |
1010*1010 | ≤180 | ≤10 | 60-75 | 55-75 | 720 | 2.1*1.84*1.96 |
1200*1000 | ≤180 | ≤10 | 100-110 | 90-110 | 590 | 2.45*1.6*1.96 |
1200*1200 | ≤180 | ≤10 | 120-150 | 110-132 | 590 | 3*2.16*2.5 |
