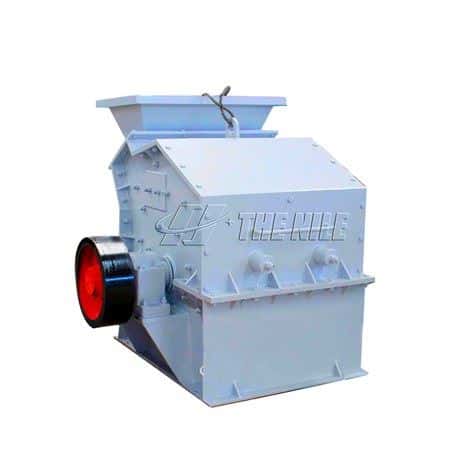

Fine Stone Crusher

Technical Parameters

Working Principle of Fine Stone Crusher

When the fine stone crusher works, the rotor rotates at high speed driven by the motor. The material enters the first crushing chamber and falls on the high-speed rotating hammerhead. After the impact between the hammering and the impact plate, the material is initially crushed in the hammering zone. Then it enters the second fine crushing cavity for crushing, falls on the middle baffle plate to form accumulation and slide, then falls on the material throwing plate of the lower rotating rotor, and is thrown to the impact plate at high speed to enter collision and fall, and is forced to impact, crush and grind by the mobile plate hammer. Then the finished materialis discharged from the discharge port and achieves an ultra-fine effect.

Performance Characteristics of Fine Stone Crusher

1. The wearing parts of the equipment are cast with wear-resistant materials, which are more wear-resistant and durable than the traditional fine stone crusher.

2. Stone fine crusher adopts grate plate design, steel type hard extrusion, and crushing, which improve the production efficiency by 45%.

3. Fast running speed and low power consumption with saving 30% energy compared with the traditional roller press.

4. Exquisite production technology, simple structure, convenient maintenance, and strong production capacity.
