Applied Field: Fine crusher machine is suitable for crushing various brittle materials, such as coal gangue, fine sandstone, limestone, slag, etc with compressive strength no more than 100MPa and the surface moisture, not more than 15%.

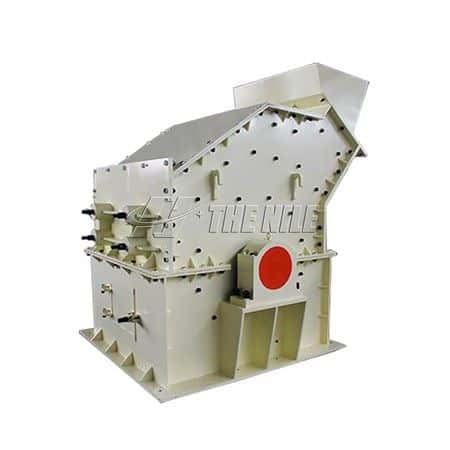

Working Characteristics of Fine Crusher Machine
The investment of fine crusher machine is lower than that of traditional crushing equipment of the same scale. The fine crusher machine has stable and reliable operation performance, simple process, structure, and convenient maintenance with large production capacity and long service life of hammerhead, which is widely used in the machine-made aggregate, high-grade highway, railway, water conservancy, construction, cement, refractory, metallurgy, and other industries to produce high-quality stone materials.
Classification of Fine Crusher Machine
1.Classification by working principle: According to the working principle, the fine crusher machines can be divided into four categories: hammer fine crusher, impact fine crusher, roller fine crusher, and coarse grinding mill.
2.Classification by Shape: Fine crusher machines can be divided into two categories according to the shape: vertical fine crusher machine and horizontal fine crusher machine. vertical fine crusher is also known as column mill.
3.Other Classification: Integral hammer type fine crusher, split hammer type fine crusher, reversible hammer crusher, vertical shaft hammer crusher, etc.
←No more
Feed Size | Output Size | Capacity | Motor Power | Rotor speed | Dimension | |
800*400 | ≤120 | ≤10 | 30-40 | 37-45 | 860 | 2.1*1.4*1.7 |
800*600 | ≤180 | ≤10 | 40-50 | 45-55 | 860 | 2.1*1.62*1.7 |
800*800 | ≤180 | ≤10 | 50-70 | 45-55 | 860 | 2.1*1.84*1.96 |
1010*1010 | ≤180 | ≤10 | 60-75 | 55-75 | 720 | 2.1*1.84*1.96 |
1200*1000 | ≤180 | ≤10 | 100-110 | 90-110 | 590 | 2.45*1.6*1.96 |
1200*1200 | ≤180 | ≤10 | 120-150 | 110-132 | 590 | 3*2.16*2.5 |
