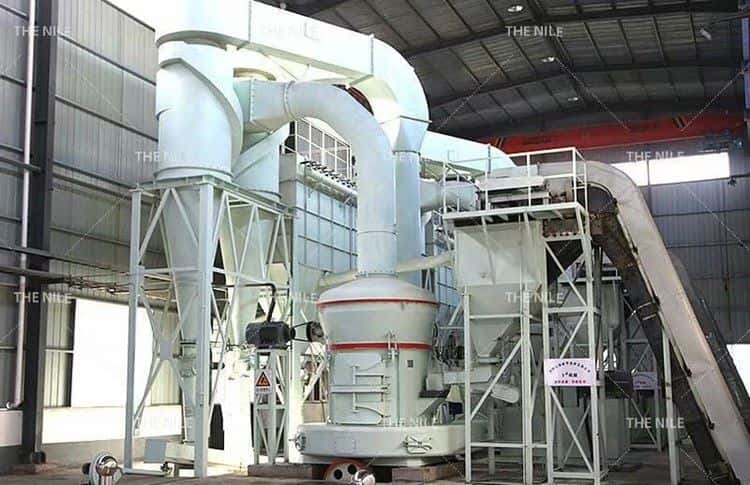

Product Introduction: Raymond mill grinder machine is mainly composed of main engine, analyzer, fan, finished product cyclone separator, micro powder cyclone separator, and air duct. The main engine of the Raymond mill grinder machine is composed of frame, air inlet volute, blade, grinding roller, grinding ring, and cover.
Working Process of Raymond Mill Grinder Machine
After material grinding, the fan blows the air into the main engine shell, blows up the powder, and then it is sorted by the analyzer located above the grinding chamber. The fine and coarse materials fall into the grinding chamber for regrinding. The fineness meets the specification and flows into the cyclone collector with the air flow. After collecting, it is discharged through the powder outlet, which is the finished product. The air flow is returned to the fan by the return air pipe at the upper end of the cyclone collector. The wind path is circulating and flows under negative pressure. The air volume increase part of the circulating air path is discharged through the exhaust gas pipe between the fan and the main engine, and enters into the small cyclone collector for purification treatment.
Performance Characteristics of Raymond Mill Machine
1.The whole machine of Raymond mill machine is vertical structure with small floor area and strong systematicness. It can form an independent production system from raw material rough processing to conveying to powder making and final packaging.
2.Compared with other grinding equipment, the pass through rate of Raymond mill grinder machine is as high as 99%.
3.The transmission device of the main engine in the Raymond mill grinder machine adopts a closed gearbox and belt wheel, which is stable in transmission and reliable in operation.
4.The important parts of Raymond mill grinder machine are made of high-quality castings with fine technology, which ensures the durability of the whole equipment.
5. The electric system of Raymond mill grinder machine adopts centralized control with advanced and reasonable selection and high degree of automation.
Model | Roller Number | Roller Size | Feeding Size | Output Size | Capacity | Motor Power | Weight |
3R1510 | 3 | 150*100 | 15 | 0.2-0.044 | 0.3-1.2 | 7.5 | 2 |
3R2115 | 3 | 210*150 | 15 | 0.2-0.044 | 0.4-1.6 | 15 | 3.6 |
3R2615 | 3 | 260*150 | 20 | 0.2-0.044 | 0.8-2.5 | 18.5 | 4.2 |
3R2715 | 3 | 270*150 | 20 | 0.2-0.044 | 0.9-2.8 | 22 | 4.8 |
3R2715 | 3 | 300*150 | 20 | 0.2-0.044 | 1.2-3.5 | 30 | 5.3 |
4R3016 | 4 | 300*160 | 20 | 0.2-0.044 | 1.2-4 | 30 | 8.5 |
4R3216 | 4 | 320*160 | 25 | 0.2-0.044 | 1.8-4.5 | 37 | 15 |
5R4121 | 5 | 410*210 | 30 | 0.2-0.044 | 3-9.5 | 75 | 24 |
