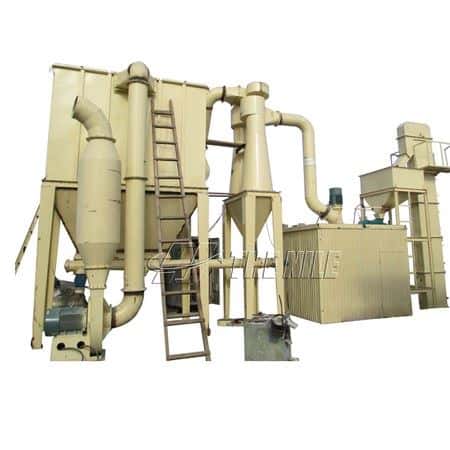

Ultrafine Grinding Mill

Working Principle of Ultrafine Grinding Mill

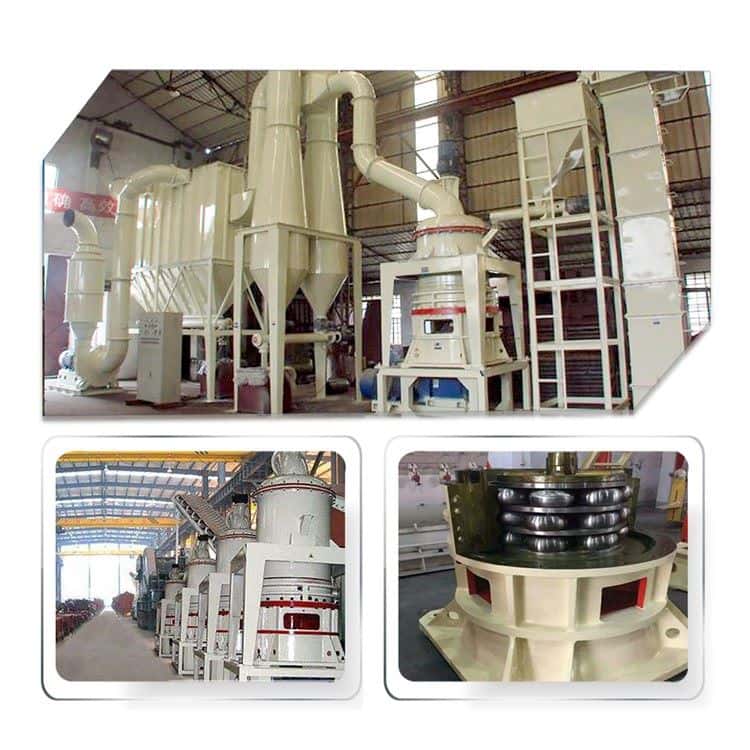

In the grinding chamber, the grinding roller assembly of ultrafine grinding mills suspended on the grinding roller hanger through the cross arm shaft. The grinding roller hanger is fixedly connected with the main shaft and the blade holder. The pressure spring is tightly pressed against the suspension wall of the grinding roller shaft chamber by the tension rod. On the outer end, with the cross arm shaft as the fulcrum, the grinding roller is tightly pressed on the inner surface of the grinding ring by spring pressure. When the motor is driven, the blade mounted on the blade holder rotates synchronously with the grinding roller. The grinding roller rotates and revolves around its own axis while rolling in the inner circle of the grinding ring. The analyzer drives the analyzer impeller to rotate through the motor transmission device, and the analyzer adjusts the rotation speed to achieve the purpose of milling.

Technical Advantages and Characteristics of Ultrafine Grinding Mill

1. The utilization rate of wear materialS is high, which is four times the service life of Raymond mill.

2. The effect of processing fine sand is better than that of other grinding mills.

3. Ultrafine grinding mill is a kind of high-efficiency equipment for power plant desulfurization.

4. As pre-grinding before ball milling, the milling efficiency of the ultrafine grinding mill can be increased by 50%.

5. Ultrafine grinding mill is mainly used for the pre-grinding of various brittle materials WITH the hardness is less than Mohs hardness 9.
