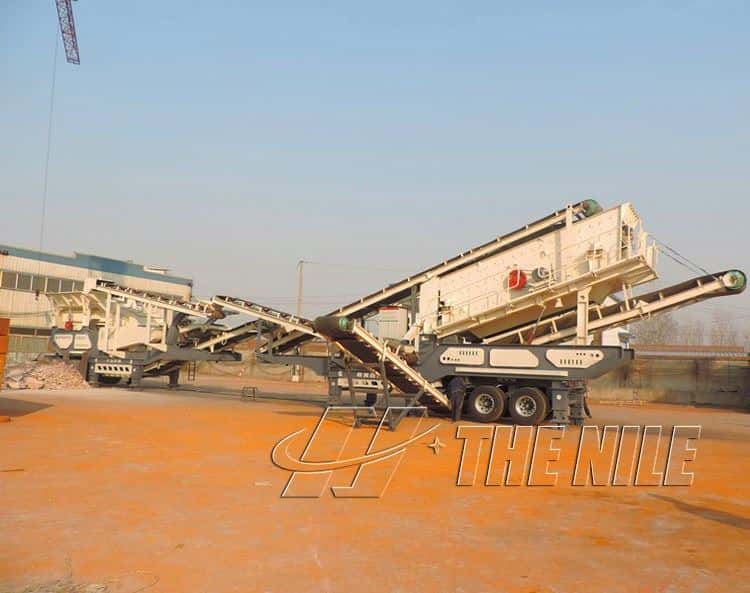

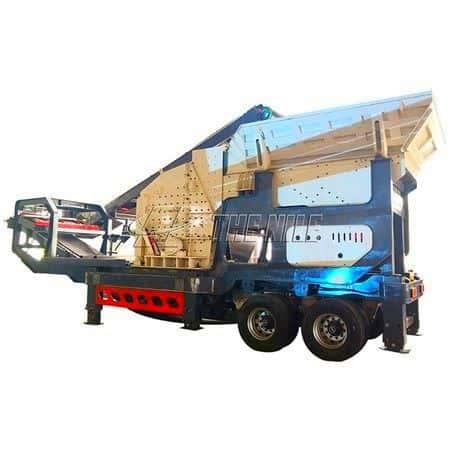

Applied Fields: Tire mobile crusher is a series of rock and construction waste crushing equipment, which is widely used in mine ore crushing, construction waste recycling, construction aggregate production, highway, railway, road and bridge construction, and other industries. Its appearance has greatly expanded the concept of crushing operation.
Technical Parameters
Mobile jaw crusher plant | PP600 | PP750 | PP900 | PP1060 | PP1200 | PP1300PEX | |
Crusher plant size | Length(m) | 8.6 | 9.6 | 11.1 | 13.3 | 15.8 | 9.4 |
Width(m) | 2.5 | 2.5 | 3.8 | 2.9 | 2.9 | 2.7 | |
Height(m) | 3.8 | 3.5 | 3.5 | 4.4 | 4.5 | 4.0 | |
Jaw crusher | Feed size(mm) | 340 | 425 | 500 | 630 | 750 | 250 |
Output size(mm) | 40-100 | 50-100 | 65-160 | 230-290 | 195-265 | 20-90 | |
Capacity(t/h) | 16-60 | 40-110 | 50-180 | 230-290 | 315-500 | 16-105 | |
Motor power(kw) | 30 | 55 | 75 | 90 | 160 | 55 | |
Vibrating feeder | Capacity(m3/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 | 10-60 |
cubage(m3/h) | 3 | 4 | 7 | 10 | 10 | 3 | |
Width(mm) | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 | |
Conveyor belt | Width(mm) | 400 | 500 | 500 | 650 | 800 | 500 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | 0.8-2 | 1.0-2 | 0.8-2 | |
Classification of Tire Mobile Crusher
The tire type mobile crushing station can be divided into four series: cone type mobile crushing station, jaw type mobile crushing station, impact type mobile crushing station, and screening crawler type mobile crushing station.
Applicable Materials of Tire Mobile Crusher
Tire-type mobile crusher station is widely used in mine ore crushing, construction waste recovery, construction aggregate production, highway, railway, road, and bridge construction, and other industries. It is used for crushing all kinds of hard rock and ore materials, such as granite, basalt, marble shale, sandstone, quartzite, limestone, iron ore, copper ore, manganese ore, coal gangue, non-ferrous metal ore, cobble, and construction waste of urban demolition.
Features of Tire Mobile Crusher
1.Flexible movement and fast production. Wheel-type mobile crushers can be moved directly into and out of the processing site, with a small turning radius, intelligent operation, and high production efficiency.
2.Use as you go. It can be processed directly in the material site, with flexible combination, strong adaptability, excellent performance, and reliable structure.
3.The processing flow is optional. The integrated whole set of units can be screened before crushing or crushed before the screening. The specific crushing process is selected according to the requirements.
4.Save the cost of enterprise operation. Tire mobile crushing plant saves the infrastructure construction link, saves the overall production cost, reduces the material transportation cost, and reduces the material and man-hour consumption.
5.A variety of crushing processing options are available. For coarse crushing, medium crushing and fine crushing, different crushing degrees can be selected according to requirements.
Technical Parameters of Tire Mobile Crusher
Mobile jaw crusher plant | PP600 | PP750 | PP900 | PP1060 | PP1200 | PP1300PEX | |
Crusher plant size | Length(m) | 8.6 | 9.6 | 11.1 | 13.3 | 15.8 | 9.4 |
Width(m) | 2.5 | 2.5 | 3.8 | 2.9 | 2.9 | 2.7 | |
Height(m) | 3.8 | 3.5 | 3.5 | 4.4 | 4.5 | 4.0 | |
Jaw crusher | Feed size(mm) | 340 | 425 | 500 | 630 | 750 | 250 |
Output size(mm) | 40-100 | 50-100 | 65-160 | 230-290 | 195-265 | 20-90 | |
Capacity(t/h) | 16-60 | 40-110 | 50-180 | 230-290 | 315-500 | 16-105 | |
Motor power(kw) | 30 | 55 | 75 | 90 | 160 | 55 | |
Vibrating feeder | Capacity(m3/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 | 10-60 |
cubage(m3/h) | 3 | 4 | 7 | 10 | 10 | 3 | |
Width(mm) | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 | |
Conveyor belt | Width(mm) | 400 | 500 | 500 | 650 | 800 | 500 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | 0.8-2 | 1.0-2 | 0.8-2 | |
