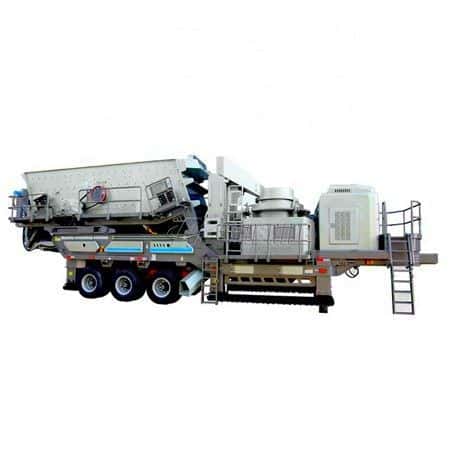

Movable Stone Crusher

Technica Parameters

Characteristic of Movable Stone Crusher

1.The movable stone crusher can be used for climbing operations to meet the crushing requirements of mines, hydropower stations, coal mines, and other projects.

2.The products of the mobile crushing station are light in weight, small in volume, and especially suitable for working in narrow sites.

3.The mobile crusher saves fuel, and the fuel-saving rate is up to 25%.

4.The mobile crushing station has the advantages of convenient transportation, crawler walking, no damage to the road surface, equipped with multi-functional accessories, and wide adaptability.

5.The mobile crushing station comes with a power unit-optimized design.

Advantages of Movable Stone Crusher

1.Equipped with high-performance crushers: PE jaw crusher, PF impact crusher, or cone crusher.

2.Feeder and vibrating screen integrated with the crusher.

3.Integrated vehicle-mounted installation of belt conveyor, vibrating screen, and crusher under the screen.

4.The steering traction shaft is convenient for road transportation and site depth.

5. Vehicle-mounted installation support, fast and convenient equipment site stationing.

6. The vehicle-mounted motor and control box are integrated.

7. According to the size of the feeding and discharging particle size in the crushing operation, movable stone crusher can be divided into three types of coarse crushing, medium crushing, and fine crushing: they are the mobile jaw crusher series, the counterattack series mobile crushing station and the cone crusher mobile crushing station.

Daily maintenance

1.The movable stone crusher equipment shall be lubricated as required, and the small and medium-sized equipment shall be lubricated regularly with grease and lubricating oil. In large equipment, if a cone crusher and large jaw crusher are used, there is a forced lubrication system. At this time, we should always pay attention to observe the oil temperature, oil pressure, flow, and other parameters. Tighten loose fasteners.

2.During the operation of the equipment, always pay attention to the noise and vibration of the equipment. If excessive noise or vibration occurs, stop the machine for inspection immediately. After troubleshooting, the no-load restart should be carried out according to the starting sequence.

3.During the operation of the equipment, pay attention to the quality and yield of the product. When the quality and yield are abnormal, failures such as the blockage of the crusher and the screening machine or the damage of the screen surface may occur.
