Mobile stone jaw crushing station for sale is a kind of latest rock crushing equipment, mainly used for metallurgy, building materials, hydropower, and other materials that often require relocation operations, especially for mobile stone operations such as highways, railways, and hydropower projects. Users can adopt a variety of configurations according to the types, scales, and requirements of finished materials.
Product description:

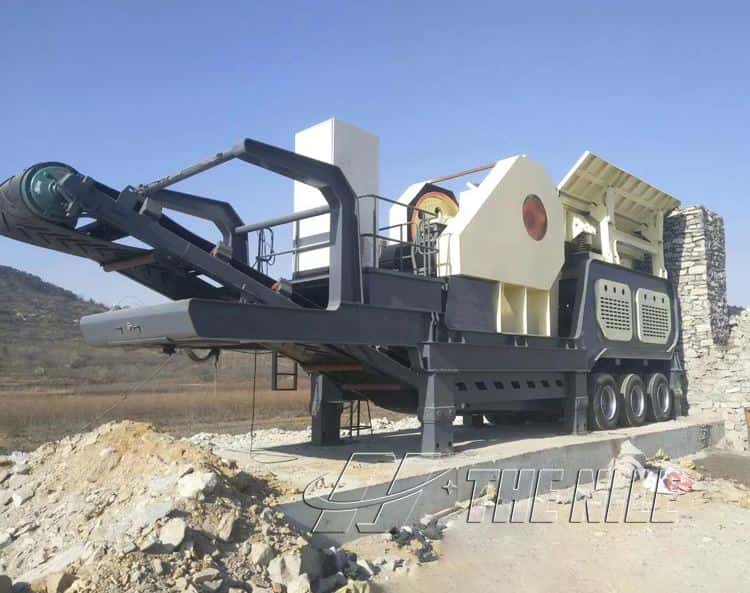

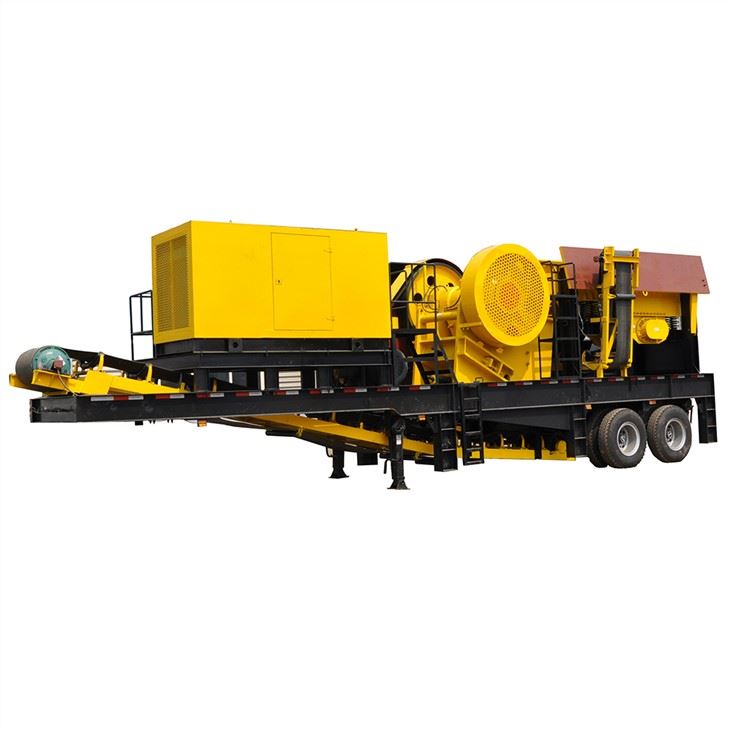

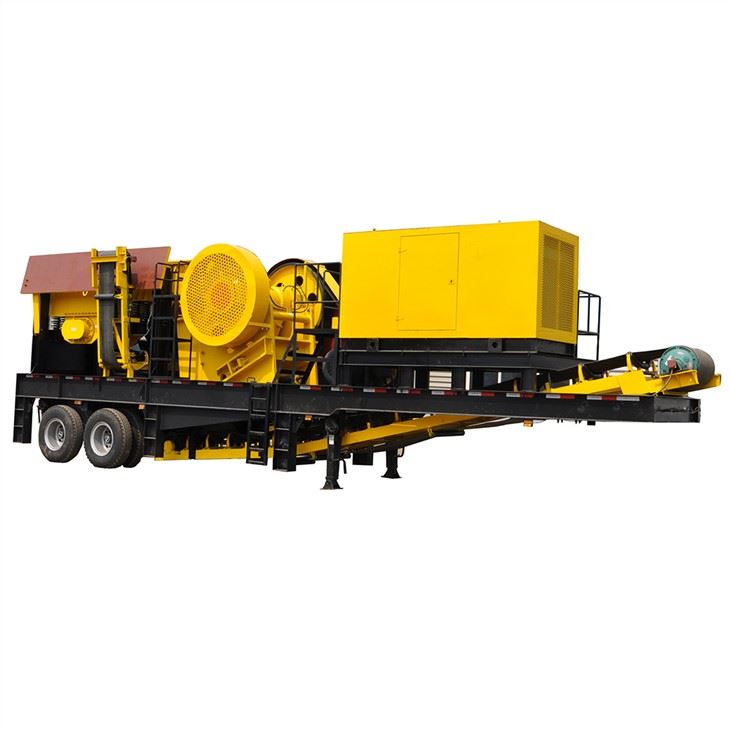

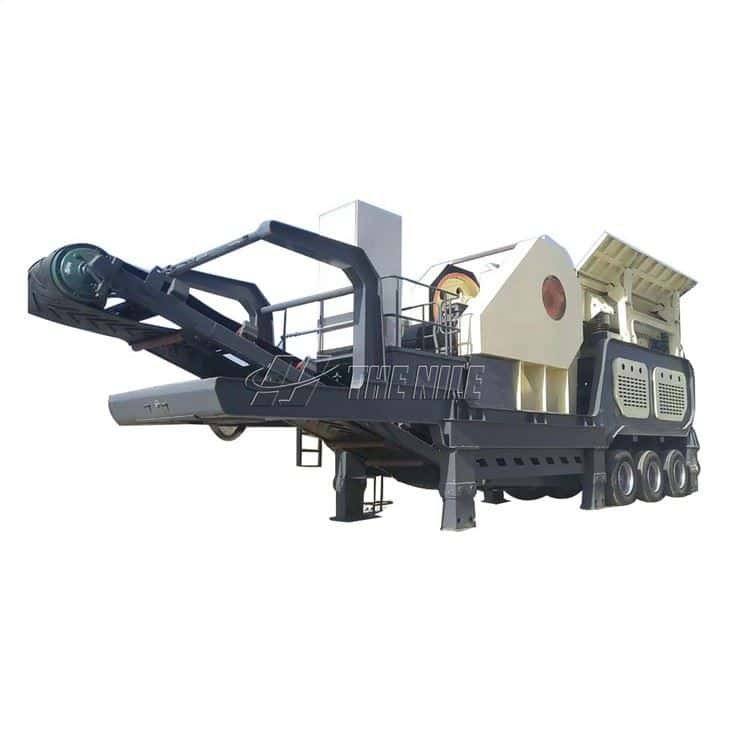

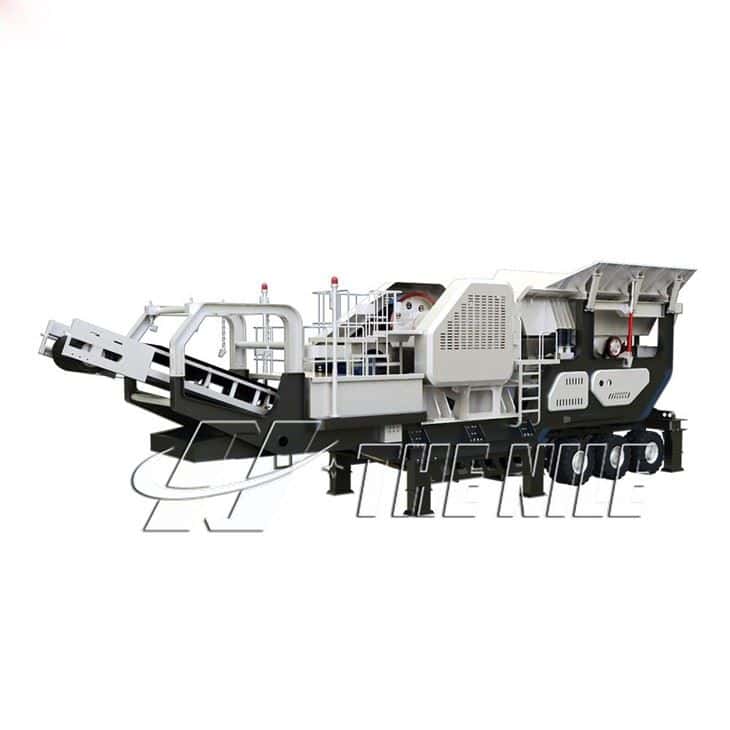

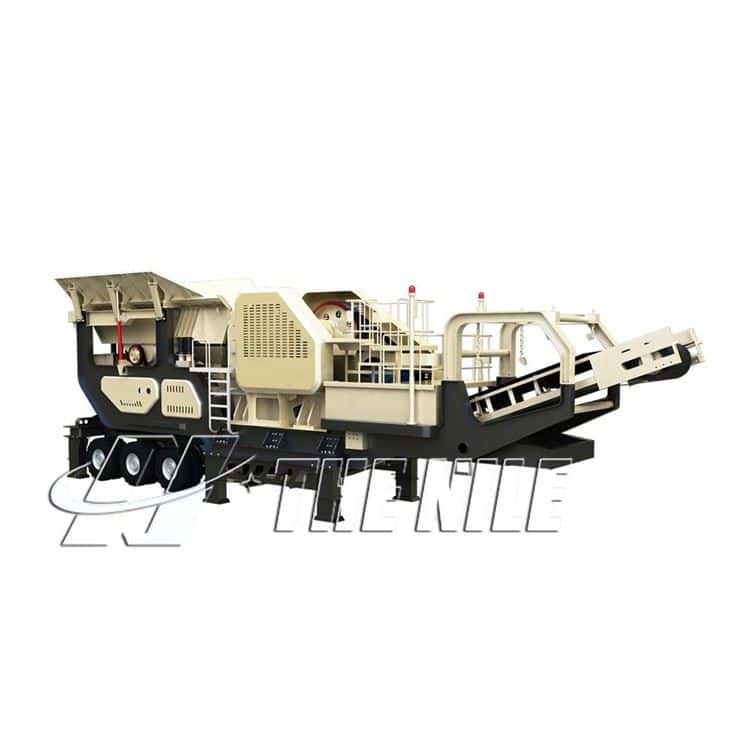

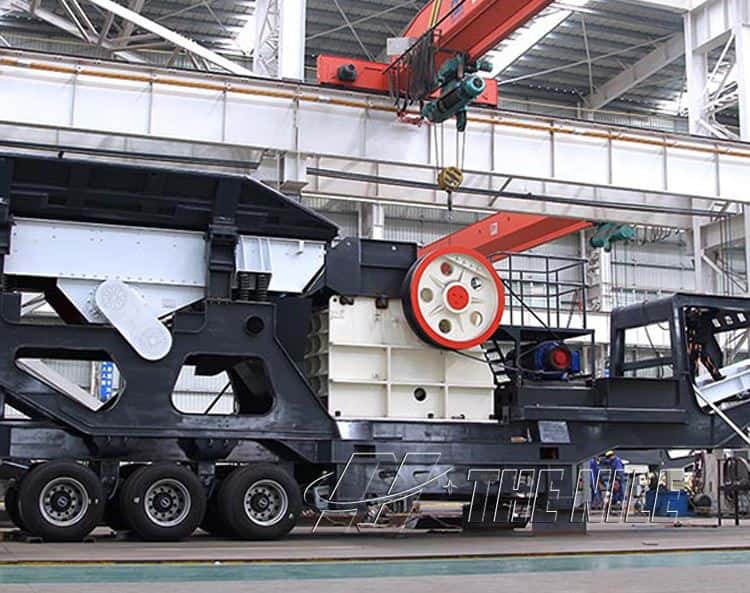

Mobile stone jaw crushing station, also known as a mobile crushing station for coarse tires, is movable crushing equipment composed of three major systems of feeding, crushing, and conveying. It adopts an integrated operation mode, which eliminates the installation of complex site infrastructure and auxiliary facilities. In more application fields, it replaces the traditional fixed coarse crushing production line and can operate alone or jointly with other Mobile crushers.
Components of mobile stone jaw crusher plant machine:
The mobile jaw crushing station has a simple structure and combination, including a solid frame (tire or crawler), jaw crusher, feeder, conveyor belt, electric motor, control box, etc.
Application range:

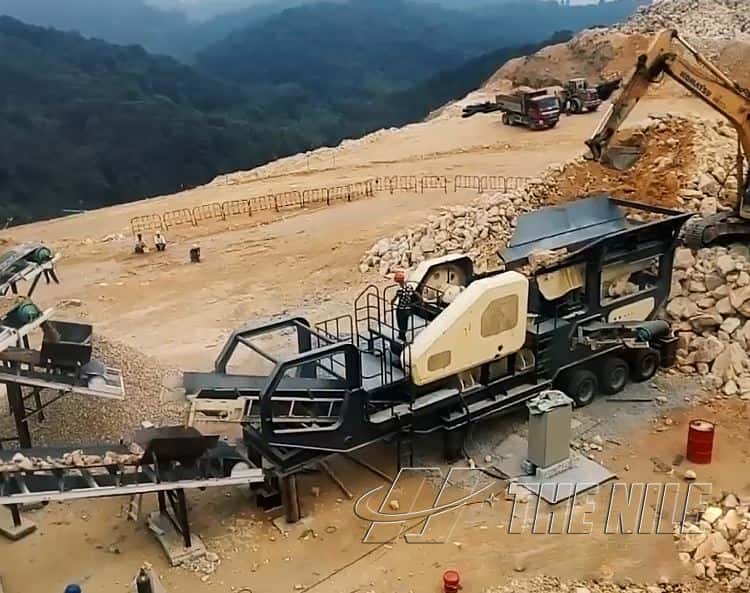

1. Mobile rock jaw crushing station is widely used in mines, coal mines, garbage and construction waste recycling, earthwork, urban infrastructure, roads or construction sites, and other site operations.
2. Artificial sand making of river pebbles, limestone, granite, basalt, diabase, and stone chips.
Characteristics of mobile stone jaw crushing station for sale:
1. Compared with a single equipment combination, the mobile jaw crushing station machine has the characteristics of small size and lightweight.
2. The turning radius of the mobile jaw crushing station is small, and operations such as in-situ burning, transportation, and climbing are more convenient.
3. There are hydraulic outriggers under the frame for strong stability.
4. The main machine crushing unit can be replaced with various types of jaw crushers for flexible matching, and can also be equipped with other medium and fine crushing equipment.
5. The jaw mobile crushing plant machinery has a closed space, which reduces pollution, and energy-saving.
Production capacity:
Feeding size: 480-750 (mm)
Processing capacity: 80-320 (t/h)
Company description：

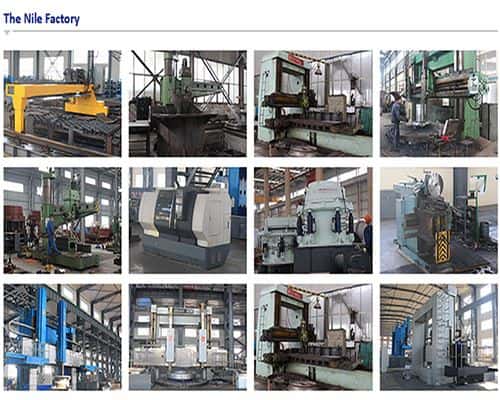

The Nile Machinery Co., Ltd. is committed to designing a variety of equipment such as gold beneficiation equipment, mineral ore beneficiation equipment, stone crushing equipment, and sand making equipment, which are widely used in electric power, metallurgy, mining, quarry, and other industries. The products are sold all over the world and are well received by customers, and have established their own overseas warehouses in Kenya and Sudan.
The Nile certificate:
| Mobile Jaw Crushering plant | NG938E69 | NG1142E710 | NG1349E912 | |
| Crusher plant size | Transport Length(mm) | 12150 | 13000 | 14600 |
| Transport Width(mm) | 2550 | 2550 | 2550 | |
| Transport Height(mm) | 3950 | 4400 | 4500 | |
| Jaw crusher | Feed size(mm) | 480 | 630 | 750 |
| Capacity(t/h) | 80-120 | 120-200 | 200-320 | |
| Model | PE600*900 | PE750*1060 | PE900*1200 | |
| Vibrating feeder | Model | GZD960*3800 | GZD1100*4200 | GZD1300*4900 |
| Conveyor belt | Model | B800*8.5m | B1000*9m | B1200*9.5m |
