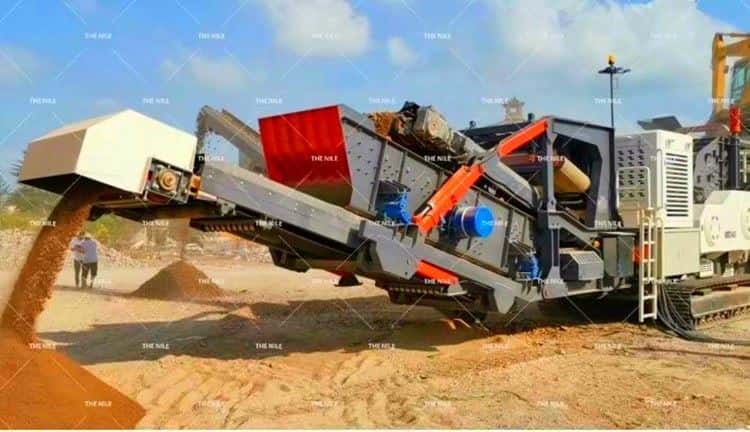

Applied Fields: Crawler mobile crusher is often used for fine crushing operation in aggregate production, which can crush various high-hardness stones. The equipment has been widely used in various industries, such as gravel plant, mine development, concrete processing, road construction, etc., and has been widely welcomed by users since it was put on the market.
Impact crawler mobile crushing station | 1010PFS | 1210PFS | 1214PFS | |
Crusher plant size | Length(m) | 10.8 | 12.2 | 12.5 |
Width(m) | 2.5 | 2.7 | 2.9 | |
Height(m) | 4.2 | 4.2 | 4.2 | |
Impact crusher | Feed size(mm) | 350 | 350 | 400 |
Output size(mm) | 5-60 | 5-60 | 5-60 | |
Capacity(t/h) | 50-80 | 70-120 | 130-180 | |
Motor power(kw) | 55-75 | 110-132 | 160-200 | |
Vibrating feeder | Capacity(t/h) | 80-120 | 100-160 | 130-260 |
Motor power(kw) | 7.5 | 11 | 15 | |
Dimension(m) | 3.3*1.6*1.3 | 3.7*1.8*1.2 | 4.3*1.8*1.4 | |
Conveyor belt | Width(mm) | 500 | 500 | 650 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | |
Processing Materials of Crawler Mobile Crusher
Crawler mobile crushers are widely used in various quarries, garbage disposal sites, coal mine crushing, concrete mixing plants, and other places. Applicable materials include construction waste, concrete, basalt, granite, fly ash, cement clinker, river pebble, limestone, iron ore, bauxite, quartz sand, coal gangue, etc.
Main Components

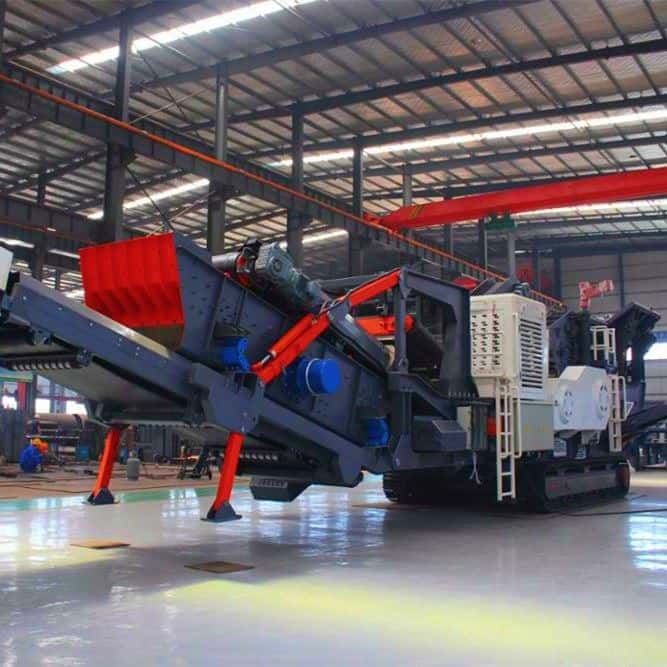

Crawler mobile crusher is mainly composed of receiving hopper, vibrating feeder, crusher, vibrating unloader, belt conveyor, magnetic separator, screening box, fine material conveyor, and crawler chassis. When working, the engine directly drives the crusher through the clutch, and drives the hydraulic pump group through the transfer case, and then drives the belt conveyor, feeder, and other equipment.
Advantages of Crawler Mobile Crusher
1.The structure design is reasonable, the crawler frame and the upper main structure adopt rigid connection, the main structure is supported by a box-shaped structure, and the wrench-shaped lightweight body makes the whole equipment more stable.
2.This mobile crusher adopts new high-strength wear-resistant materials, an intelligent control system, and locked rotor self-cleaning protection technology, which makes the whole equipment easy to operate and durable.
3.The innovative self-cleaning crusher is adopted to greatly reduce the dust output of the crusher, which belongs to the current environmentally friendly sand and gravel equipment.
4. During the operation of this equipment, the mode of remote control of production can be adopted to prevent the staff from being exposed to wind and rain outside, and the operation status of the equipment can be checked at any time.
Technical Parameters of Crawler Mobile Crusher
Impact crawler mobile crushing station | 1010PFS | 1210PFS | 1214PFS | |
Crusher plant size | Length(m) | 10.8 | 12.2 | 12.5 |
Width(m) | 2.5 | 2.7 | 2.9 | |
Height(m) | 4.2 | 4.2 | 4.2 | |
Impact crusher | Feed size(mm) | 350 | 350 | 400 |
Output size(mm) | 5-60 | 5-60 | 5-60 | |
Capacity(t/h) | 50-80 | 70-120 | 130-180 | |
Motor power(kw) | 55-75 | 110-132 | 160-200 | |
Vibrating feeder | Capacity(t/h) | 80-120 | 100-160 | 130-260 |
Motor power(kw) | 7.5 | 11 | 15 | |
Dimension(m) | 3.3*1.6*1.3 | 3.7*1.8*1.2 | 4.3*1.8*1.4 | |
Conveyor belt | Width(mm) | 500 | 500 | 650 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | |
