Processing Materials: Construction waste mobile crushing station is used for crushing pebbles, limestone, construction waste, concrete block, brick, iron ore, copper ore, potassium ore, etc. Applied Filed: Construction Waste Mobile Crushing Station is widely applied in mine, coal mine, highway, water conservancy, metallurgy, construction waste treatment and construction waste recycling treatment.

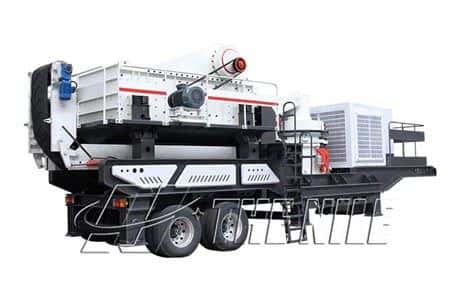

Introduction of Construction Waste Mobile Crushing Station
Construction waste mobile crushing station integrates transportation, crushing, sand making and screening, uses jaw crusher and impact crusher as the combination for crushing work and cone crusher as alternative secondary crushing equipment. The feeding size of the construction waste mobile crushing station is 350-800mm, the hourly output is 30-500t / h, and the compressive strength is not more than 350Mpa. The construction waste mobile crusher has advantages such as integrated design, reasonable collocation, and diversified configuration, which can meet the different requirements of customers, improve the material of the vulnerable parts, increase service life and make intelligent operation and production safer.
Advantages of Construction Waste Mobile Crushing Station
1.Flexible movement: construction waste is generally stacked together, and the site is mostly chaotic and narrow. While the construction waste mobile crushing station has a compact structure, reasonable design, and flexible movement of the body, which can be directly driven into the mine site.
2.Saving consumption of man-hour: the construction waste mobile crushing station is an independent production line, so it can directly carry out production operations after stationing on the site without infrastructure construction and installation. Thus construction waste mobile crushing station can save production time and cost.
3.Remote Control: the construction waste mobile crushing station adopts a PLC remote electronic control system, which can systematically detect, monitor, and manage the operation status of the equipment and the input and output of the production operation at any time, which improves the automation degree of production and ensures the safety of the production process.
Construction Waste Mobile Crushing Station | PP1010PFS | PP1210PFS | PP1214PFS | |
Crusher plant size | Length(m) | 10.8 | 12.2 | 12.5 |
Width(m) | 2.5 | 2.7 | 2.9 | |
Height(m) | 4.2 | 4.2 | 4.2 | |
Impact crusher | Feed size(mm) | 350 | 350 | 400 |
Output size(mm) | 5-60 | 5-60 | 5-60 | |
Capacity(t/h) | 50-80 | 70-120 | 130-180 | |
Motor power(kw) | 55-75 | 110-132 | 160-200 | |
Vibrating feeder | Capacity(t/h) | 80-120 | 100-160 | 130-260 |
Motor power(kw) | 7.5 | 11 | 15 | |
Diemension(m) | 3.3*1.6*1.3 | 3.7*1.8*1.2 | 4.3*1.8*1.4 | |
Conveyor belt | Width(mm) | 500 | 500 | 650 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | |
