Processing Materials: Heavy duty mobile jaw crushers are used for crushing limestone, sandstone, construction waste, gypsum, iron ore, quartz, pebbles, glass, dolomite, coal gangue,etc. Applied Field: Heavy duty mobile jaw crushers are mainly applied in hard rock crushing, aggregate production, mining, open pit crushing, waste recycling, cement production and tunnel crushing.

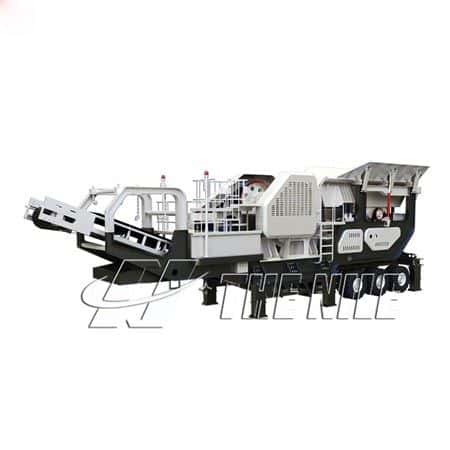

Introduction of Heavy Duty Mobile Jaw Crushers
Heavy duty mobile jaw crushers, also known as mobile jaw crushing station and mobile jaw crusher, is a rock crushing equipment newly developed by Nile company. Different from the traditional jaw crusher, this new heavy duty mobile jaw crusher can conveniently and flexibly go to the site for crushing, which eliminates the obstacles brought by the crushing site and environment to customers' crushing operation. Therefore, mobile jaw crushers can be used in coal mining factories, infrastructure road construction, and urban construction waste recovery and treatment.
Composition Structureof Heavy Duty Mobile Jaw Crushers

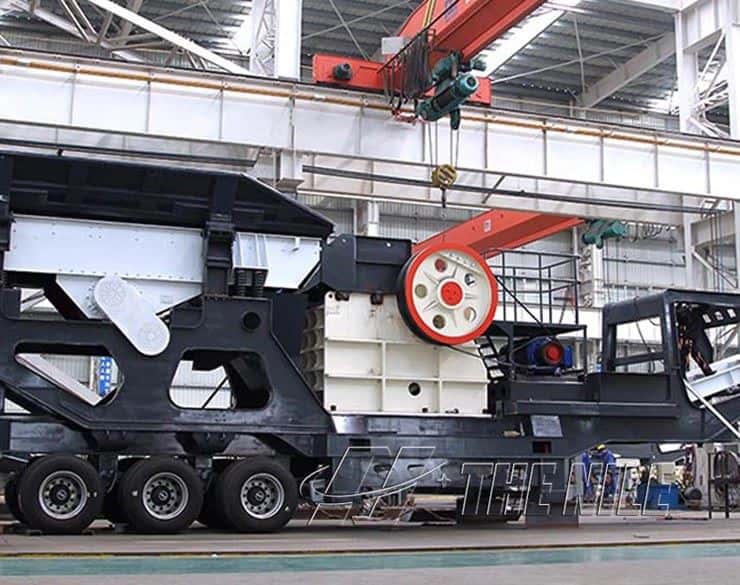

The main parts of heavy duty mobile jaw crusher includes a solid frame, jaw crusher, feeder, vibrating screen, conveyor belt, motor, and control box.
Working Principle of Heavy Duty Mobile Jaw Crushers
During the operation of heavy duty mobile jaw crusher, the stone in accordance with the feed size is uniformly transported to the jaw crusher by the feeder. After the initial crushing by stone jaw crusher, screening control is carried out and then the qualified stones can enter the next processing procedure of crushing. The closed-circuit system can realize the circulation crushing of stone materials. Then the finished material is output by the conveyor for continuous crushing operation. The whole crushing process is a smooth and high yield, and the materials flow at a high speed among various equipment.
Heavy Duty Mobile Jaw Crushers | PP600 | PP750 | PP900 | PP1060 | PP1200 | PP1300PEX | |
Crusher plant size | Length(m) | 8.6 | 9.6 | 11.1 | 13.3 | 15.8 | 9.4 |
Width(m) | 2.5 | 2.5 | 3.8 | 2.9 | 2.9 | 2.7 | |
Height(m) | 3.8 | 3.5 | 3.5 | 4.4 | 4.5 | 4.0 | |
Jaw crusher | Feed size(mm) | 340 | 425 | 500 | 630 | 750 | 250 |
Output size(mm) | 40-100 | 50-100 | 65-160 | 230-290 | 195-265 | 20-90 | |
Capacity(t/h) | 16-60 | 40-110 | 50-180 | 230-290 | 315-500 | 16-105 | |
Motor power(kw) | 30 | 55 | 75 | 90 | 160 | 55 | |
Vibrating feeder | Capacity(m3/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 | 10-60 |
cubage(m3/h) | 3 | 4 | 7 | 10 | 10 | 3 | |
Width(mm) | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 | |
Conveyor belt | Width(mm) | 400 | 500 | 500 | 650 | 800 | 500 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | 0.8-2 | 1.0-2 | 0.8-2 | |
