Processing Materials: Crawler Type Mobile Crushing Plant is used for crushing pebbles, cobble, basalt calcite, metal ores, glass, dolomite, coal gangue, basalt, etc. Applied Filed: Crawler Type Mobile Crushing Plant is widely applied in mining, quarry, coal, recycling of construction waste, road building, cement industry,etc.

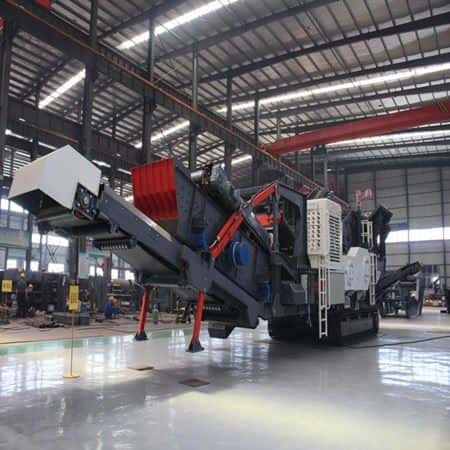

Product Description of Crawler Type Mobile Crushing Plant
Crawler type mobile crushing plant can be sorted into four types: crawler type mobile jaw crusher, crawler type mobile impact crusher, crawler type mobile cone crusher and crawler type mobile screen crusher. We can flexibly design crawler type mobile crushing plant according to customers' requirements. We also could combine different crushers and screening machines into the required crawler type mobile crusher plant.
Classification of Crawler Type Mobile Crushing Plant
1.Full hydraulic power transmission: The hydraulic pressure generated by the hydraulic pump driven by diesel engine can drive the crawler to move and crawler type mobile crusher expand and fold, and drive the feeder, crusher and belt conveyor. The whole equipment has wide adaptability, which can meet almost all construction conditions. It is convenient to move the crawler type mobile crushing plant and realize rapid production on site. Through the hydraulic system, the crawler type mobile crusher is easy to realize the accurate control of speed, overload protection, overturning and cleaning
2.Direct power transmission: The crushing host of crawler type mobile crusher is directly driven by the engine, which is more efficient and energy-saving.
3.Oil electric power transmission: The generator set installed in the crawler type mobile crushing station can supply power to each equipment and can also be switched to the power grid, which is more flexible and efficient. The hydraulic system of crawler type mobile crushing plant is only limited to crawler travel and hydraulic cylinder adjustment, which simplify and reduce the division of the hydraulic system on the equipment, reduce the complexity of equipment maintenance. The equipment retains the advantages of the crawler type mobile crushing station, such as convenient moving and rapid production on site. The crawler type mobile crusher is driven by an external power source when operation, which greatly reduces the consumption cost.
4.Pure electric power transmission: Compared with equipment driven by a pure diesel engine to walk and work, crawler type mobile crusher can greatly save the power cost for users. In high altitude areas, the crushing efficiency of crawler type mobile crushing plants is still high due to electric drive. The cost of energy consumption for the electric drive is greatly reduced compared with that of super engine drive.
Crawler Type Mobile Crushing Plant | PP1010PFS | PP1210PFS | PP1214PFS | |
Crusher plant size | Length(m) | 10.8 | 12.2 | 12.5 |
Width(m) | 2.5 | 2.7 | 2.9 | |
Height(m) | 4.2 | 4.2 | 4.2 | |
Impact crusher | Feed size(mm) | 350 | 350 | 400 |
Output size(mm) | 5-60 | 5-60 | 5-60 | |
Capacity(t/h) | 50-80 | 70-120 | 130-180 | |
Motor power(kw) | 55-75 | 110-132 | 160-200 | |
Vibrating feeder | Capacity(t/h) | 80-120 | 100-160 | 130-260 |
Motor power(kw) | 7.5 | 11 | 15 | |
Diemension(m) | 3.3*1.6*1.3 | 3.7*1.8*1.2 | 4.3*1.8*1.4 | |
Conveyor belt | Width(mm) | 500 | 500 | 650 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | |
