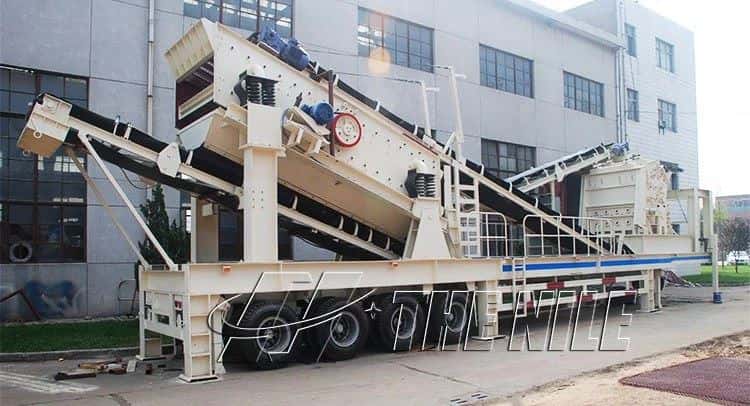

Processing Materials: Mobile crushing station is used for crushing river pebbles, limestone, granite, basalt, diabase, andesite, ore tailings, stone chips etc. Applied Field: Mobile crushing station is widely applied in mines, coal mines, garbage and construction waste recycling, earthwork engineering, urban infrastructure, roads or construction sites, separation of viscous concrete aggregates; construction, blasting industries, screening after crushing and quarrying industry.
Application of Mobile Crushing Station
1. Frequent movement, local processing and utilization.
2. Combined production to meet the processing of various recycled materials.
3. It can be driven by a generator.
Advantages of Mobile Crushing Station
1.Mobile crushing station adopts the thickened steel frame structure to protect the smooth operation and prolongs the service life of the equipment.
2.Mobile crushing station is the professional construction waste crushing equipment and the integration of coarse and fine crushing with larger feed size and output.
3.The special iron remover for the mobile crushing station can remove iron from materials, improve the quality of finished products and prolong the service life of the equipment.
4.The car body bracket of mobile crushing station can be freely expanded and contracted according to the height of the ground to ensure that stable operation and prolong the service life of the equipment.
Mobile Crushing Station | PP1010PFS | PP1210PFS | PP1214PFS | |
Crusher plant size | Length(m) | 10.8 | 12.2 | 12.5 |
Width(m) | 2.5 | 2.7 | 2.9 | |
Height(m) | 4.2 | 4.2 | 4.2 | |
Impact crusher | Feed size(mm) | 350 | 350 | 400 |
Output size(mm) | 5-60 | 5-60 | 5-60 | |
Capacity(t/h) | 50-80 | 70-120 | 130-180 | |
Motor power(kw) | 55-75 | 110-132 | 160-200 | |
Vibrating feeder | Capacity(t/h) | 80-120 | 100-160 | 130-260 |
Motor power(kw) | 7.5 | 11 | 15 | |
Diemension(m) | 3.3*1.6*1.3 | 3.7*1.8*1.2 | 4.3*1.8*1.4 | |
Conveyor belt | Width(mm) | 500 | 500 | 650 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | |
