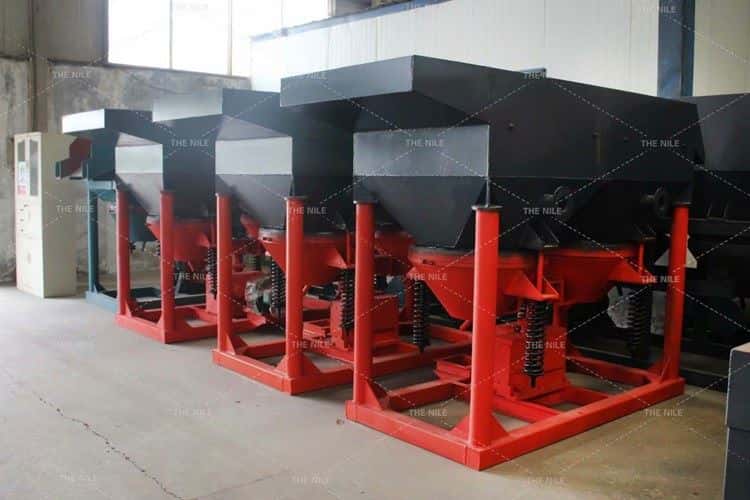

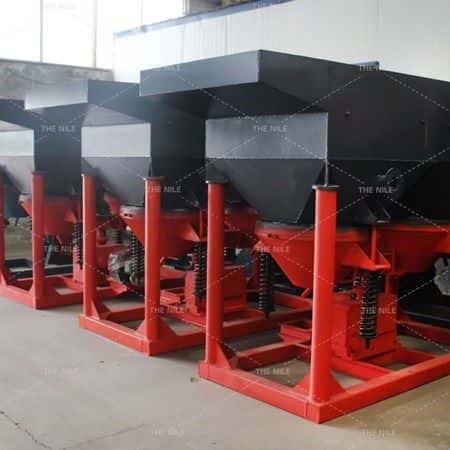

Gold Mineral Jig

Beneficiation Method of Gold Mineral Jig

Gold mineral jig belongs to deep groove separation operation. It uses water as the medium of beneficiation medium and uses the difference of specific gravity between the selected minerals and gangue to separate. The gold mineral jigs are mostly diaphragm type, and the stroke and stroke times can be flexibly adjusted according to the specific gravity of the selected minerals.

Working Principle of Gold Mineral Jig

Gold mineral jig belongs to deep groove type medium concentration equipment. All jigs have jigging chambers, the working mechanism, and the product discharge mechanism of agitating water flow. The sieve plate in the gold mineral jig chamber is made of punched steel plate, woven iron mesh, or grate.The water flowing through the sieve plate into the gold mineral jig chamber should make the bed rise to a small height and be slightly loose. The particles with high density enter the bottom layer due to the high local pressure and sedimentation speed, while the particles with low density will move to the upper layer. When the water flow drops, the dense and small particles can also enter the lower layer through the gradually tight bed gap. The piston chamber is located beside the jigging chamber, and the lower part is connected, The piston is driven up and down by the eccentric link mechanism.
