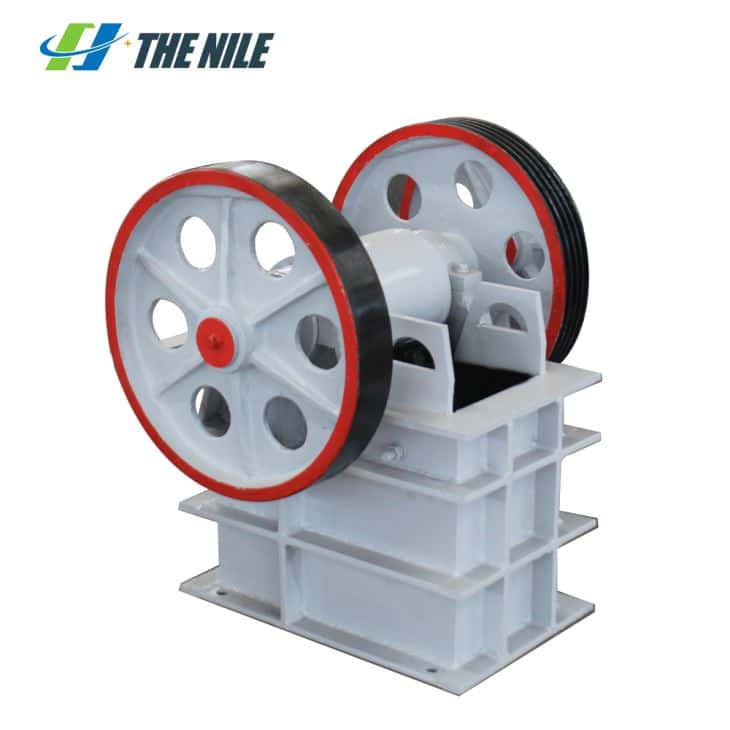

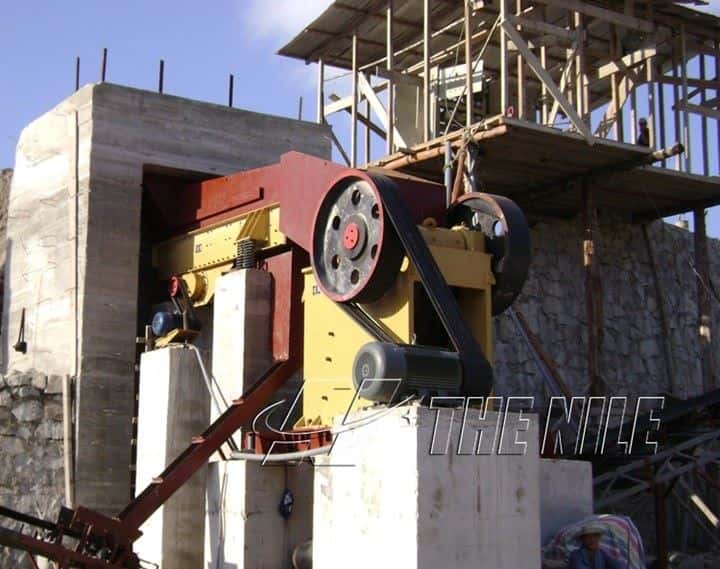

Applied Field: Concrete jaw crusher is suitable for metallurgy, mining, construction, chemical industry, water conservancy and railway industry. Concrete jaw crusher is used for fine crushing and medium crushing of various ores and rocks with compressive strength below 250Mpa.
Advantages of Concrete Jaw Crusher
Concrete jaw crusherhas the characteristics of a large crushing ratio, the uniform particle size of finished products, low power consumption, and convenient maintenance.
Maintenance points of concrete jaw crusher
1.Heating condition of concrete jaw crusher bearing.
2.Whether the lubrication system of concrete jaw crusher works normally.
3.The oil return quality of the concrete jaw crusher oil return pipe.
4.Whether the concrete crusher bolts, flywheel keys and other connections of concrete jaw crusher are loose.
5.The abrasion condition of the jaw plate and transmission parts of the concrete jaw crusher, whether there are cracks in the tension rod spring.
6.Clean the filter of lubricating oil of concrete jaw crusher with gasoline regularly. After cleaning, it should be completely dry before continuing to use it.
Technical Parameters
Model | Max. feeding size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Diemension (mm) |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
PE400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
PE400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
PE500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
PE600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
PE750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
PE900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
PE1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
PEX250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
PEX250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
PEX250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
