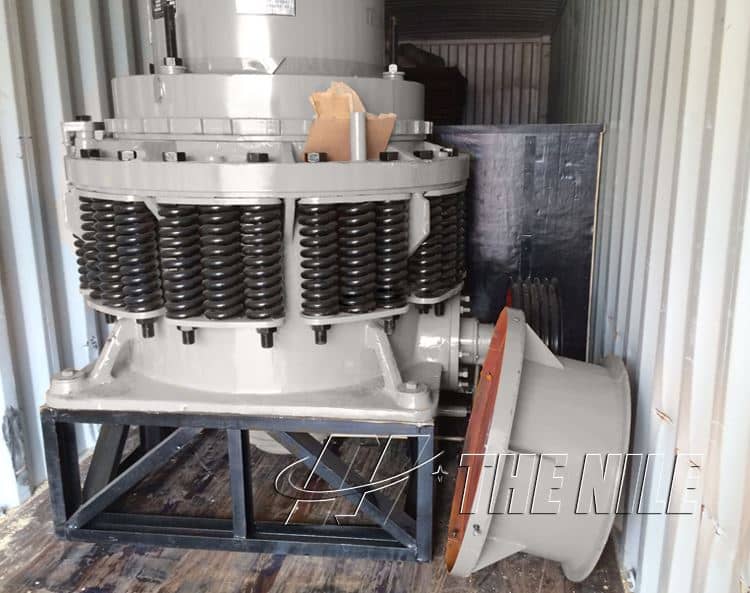

Spring cone crusher is a kind of cone crusher, which is mainly composed of the frame assembly, fixed cone assembly, moving cone assembly, spring mechanism, bowl bearing frame, and transmission assembly. Spring cone crusher machine belongs to single particle crushing cavity type, and the content of needle and flake is higher in the product. The spring cone crusher mainly includes the py series cone crusher and the PSG series compound cone crusher.
Spring cone crusher equipment is widely used in the metallurgical industry, construction industry, road construction industry, chemical industry. it is suitable for crushing hard and medium hard ores and rocks, such as iron ore, copper ore, granite, basalt, etc.
The working principle of spring cone crusher
When working, the motor drives the eccentric sleeve to rotate through the V-belt, large pulley, transmission shaft, small bevel gear, and large bevel gear. The axis of the moving cone rotates under the force of the eccentric sleeve to make the surface of the broken wall sometimes change. Close to and sometimes leave the surface of the rolling mortar wall, so that the material is continuously impacted, squeezed, and bent in the annular crushing cavity composed of the fixed cone and the movable cone to be broken. After many times of extrusion, impact, and bending, the material is crushed to the required particle size and discharged through the lower part.
Advantages of PY spring cone stone crusher:
1. The moving cone rotates continuously, the material crushing and unloading process alternately and continuously, and the productivity is high. The material is squeezed, bent, and sheared between the two cones, which is easy to break and has low power consumption;
2. When the moving cone rotates, there are parallel belts with equal gaps between the moving cone and the fixed cone, so that the finished product particle size is uniform, and the wear on the working surface of the moving cone is also uniform;
3. Adopting the dry oil sealing method, it is difficult for impurities to enter the body, so that the lubricating oil is clean, and the service life of sliding bearings and thrust ball bearings is prolonged;

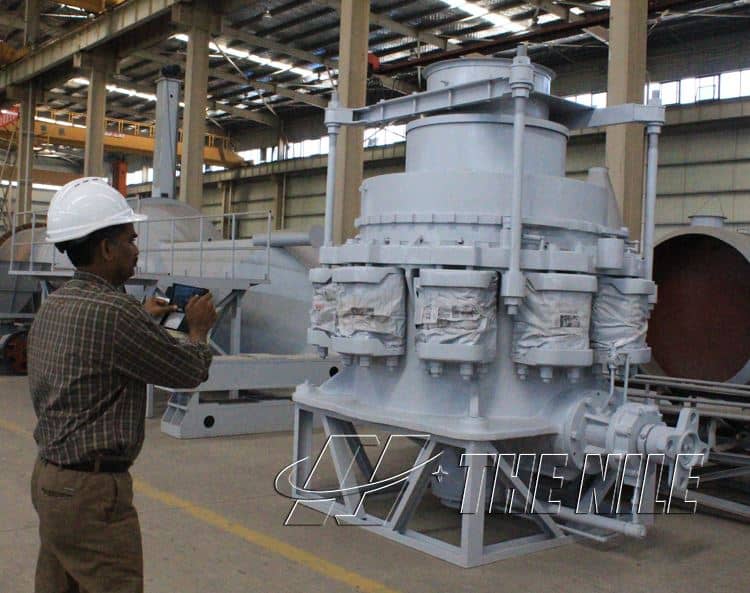

Advantages of compound cone crusher machine over PY spring cone crusher equipment:
1. The cavity type is optimized, and the throughput is increased by 30% under the same cone diameter;
2. Use hydraulic push cylinder to adjust the discharge port, reduce labor intensity, shorten downtime and maintenance time, and increase production efficiency;
3. The hydraulic cavity cleaning system can quickly clean the crushing cavity and greatly reduce the downtime;
Different products have different functions, and the only constant is quality. Nile Company always takes the production of high-quality products and high-quality service as its original intention and responds with the greatest enthusiasm to customers. If you are interested in spring cone crusher and compound cone crusher, please leave your email and WhatsApp, we will contact you as soon as possible to inform you of more detailed parameters.
