Processing Materials: Impact crusher stations can crush limestone, pebbles, cobble, basalt calcite, all metal ores, glass, dolomite, coal gangue, basalt and other materials. Applied Field: Impact crusher station is widely used in mixing and batching plant, building materials, highway, railway and water conservancy industry, etc.

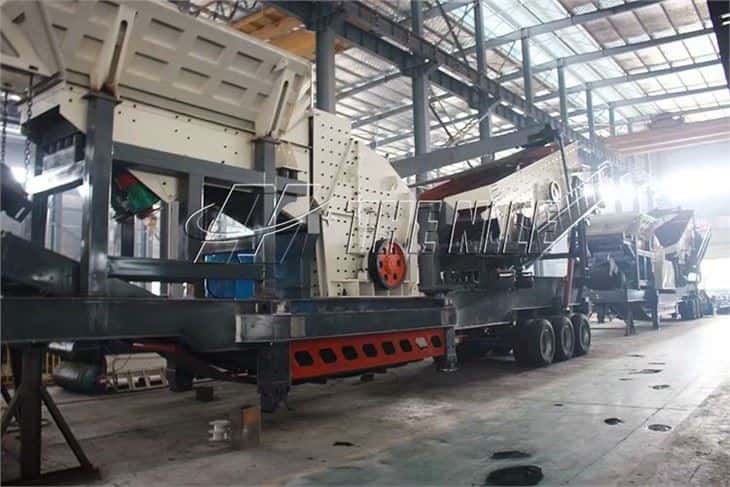

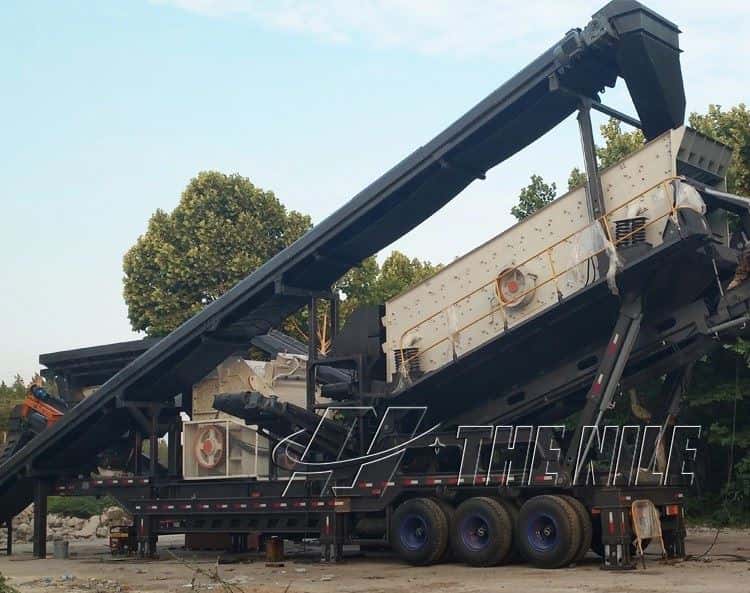

Introduction of Impact Crusher Station
Impact crusher station is a production line of stone or sand, which is composed of impact crusher, screening machine, conveyor, tire car, etc.
Advantages of Impact Crusher Station
1.Putting the crushing and screening processes on wheels really improves process efficiency of impact crusher station. In order to break through the obstacles of crushing site and complex structure, we have designed and produced a mobile impact crusher station with simple operation and high efficiency.
2.Impact crusher station is designed and researched by experienced engineers according to the requirements of customers. Impact crusher station machines provide maximum flexibility in setting from course to fine crushing, which is cost-effective. Mobile impact crushing station improves work safety, reduces the need for road maintenance in the quarry, and provides better material resources. In addition, waste can be separated on-site, eliminating the need to transport materials from one location to another, reducing the consumption of time and materials. This can greatly reduce the transportation cost of crushing in different places.
3.The integrated assembly forming unit of impact type crusher station eliminates the complex working parts in the field of separate assembly of infrastructure. The different crushing equipment of the impact crusher station is installed on independent mobile chassis.
4.The mobile impact crusher station has created higher value for users. Compared with fixed type impact crusher, it has the advantages of simple operation, high efficiency, and energy-saving, especially good mobility. So the market share of mobile type impact crusher stations has increased too much in the severe competition.
Model | Rotor Size | Feed Openning Size | Max. Feeding Size | Output Size | Capacity | Motor Power |
PF-0607 | 644*740 | 320*770 | 100 | 5-60 | 10-20 | 30 |
PF-0807 | 850*700 | 400*730 | 300 | 5-60 | 15-30 | 30-45 |
PF-1008 | 1000*800 | 400*830 | 300 | 5-60 | 30-50 | 37-55 |
PF-1010 | 1000*1050 | 400*1080 | 350 | 5-60 | 50-80 | 55-75 |
PF-1210 | 1250*1050 | 400*1080 | 350 | 5-60 | 70-120 | 110-132 |
PF-1212 | 1250*1250 | 400*1300 | 350 | 5-60 | 100-120 | 132-160 |
PF-1214 | 1250*1400 | 400*1430 | 400 | 5-60 | 130-180 | 160-200 |
PF-1315 | 1320*1500 | 680*1520 | 400 | 5-60 | 160-250 | 180-260 |
PF-1320 | 1320*2000 | 680*2030 | 400 | 5-60 | 300-350 | 300-375 |
