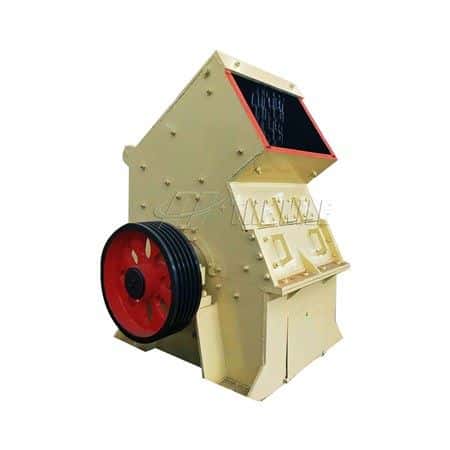

Heavy Duty Hammer Crusher

Intrduction of Heavy Duty Hammer Crusher

Due to the rapid wear of hammerhead, heavy-duty hammer crusher is limited in the application of hard material crushing. In addition, because the grate bar is afraid of blocking, it is not suitable for crushing materials with high humidity and clay. This kind of hammer crusher machine is usually used to crush limestone, shale, coal, gypsum, chalk, and other brittle materials below medium-hard. It is a variant of hammer crusher that the hammerhead of hammer crusher is replaced by a steel ring. Heavy duty hammer crusher uses the combined action of high-speed impact and low-speed rolling to crush materials, so as to obtain finer products.

Working Principle of Heavy Duty Hammer Crusher

Heavy duty hammer crusher is a kind of crushing machine which uses the high-speed impact of a hammerhead to crush and finely crush materials. The hammerhead of the heavy-duty hammer crusher is hinged on a high-speed rotating rotor, and a grate bar is arranged at the lower part of the body to control the discharging particle size.The materials fed into the hammer crusher are first crushed by the impact of the high-speed hammerhead, and obtain kinetic energy at the same time. They fly to the crushing plate on the inner wall of the casing at high speed to be crushed again. The material smaller than the grate gap between the grate bars is discharged out of the machine, and the material block larger than the grate gap is again impacted and ground by the hammer on the grate until it is discharged.
