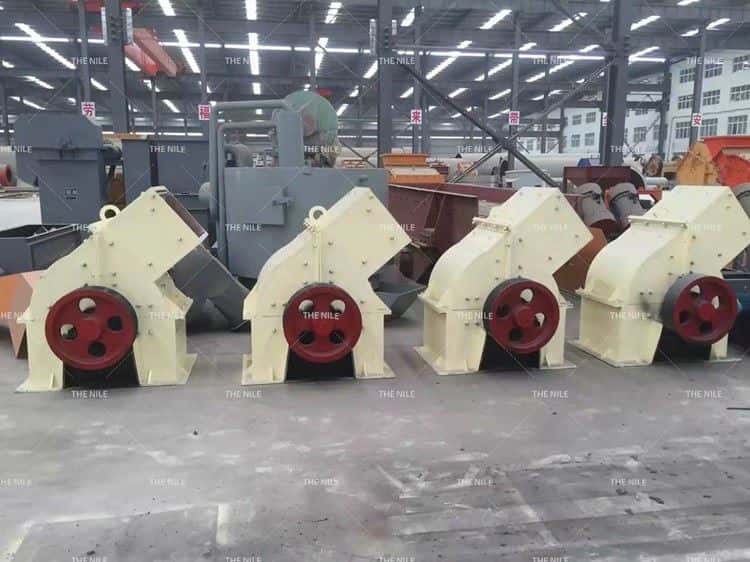

Applied Field: Small rock hammer crusher is a crushing plant that can directly crush the material with the maximum particle size of 600-1800 mm to 25 or less. Small rock hammer crusher is suitable for crushing for limestone, slag, coal and other materials in cement, chemical, power, metallurgy industries.

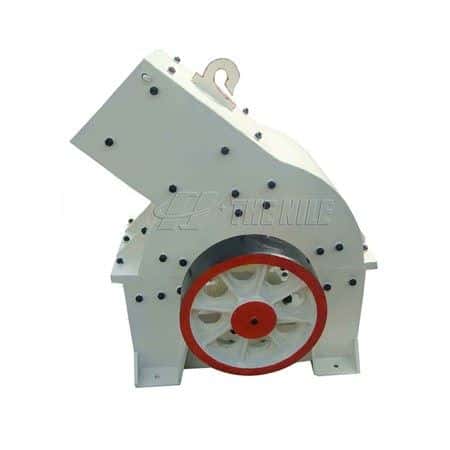

Structure of Small Rock Hammer Crusher
Small rock hammer crusher is composed of a casing, rotor, hammerhead, impact lining plate, and a sieve plate.
Performance Characteristicsof Small Rock Hammer Crusher
1.The working hammerhead of small rock hammer crusher adopts new technology, with wear resistance and impact resistance.
2.The required granularity can be adjusted according to customer requirements.
3.The structure of the small rock hammer crusher body is sealed to solve the problems of dust pollution and ash leakage in the crushing workshop.
4. The overall design of small rock hammer crusher has the advantages of beautiful appearance, compact structure, few wearing parts, and convenient maintenance.
No more→
Technical Parameters of Small Rock Hammer Crusher
Model No. | Max. Feeding Size | Output Size | Capacity | Motor Power | Weight | Overall Diemension |
PC400*300 | 100 | ≤10 | 5-10 | 11 | 0.8 | 850*950* 880 |
PC600*400 | 120 | ≤15 | 10-25 | 18.5 | 1.5 | 1000*1000*1300 |
PC800*600 | 120 | ≤15 | 20-35 | 55 | 3.1 | 1515*2590*1040 |
PC1000*800 | 120 | ≤15 | 20-40 | 110 | 7.9 | 3200*2210*1515 |
PC1000*1000 | 120 | ≤15 | 30-80 | 132 | 8.65 | 3515*2230* 1515 |
