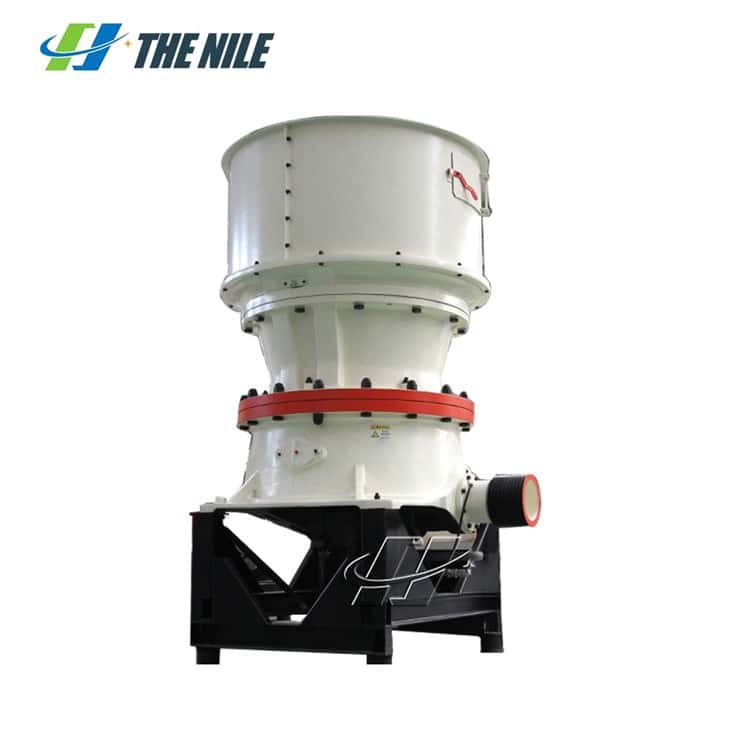

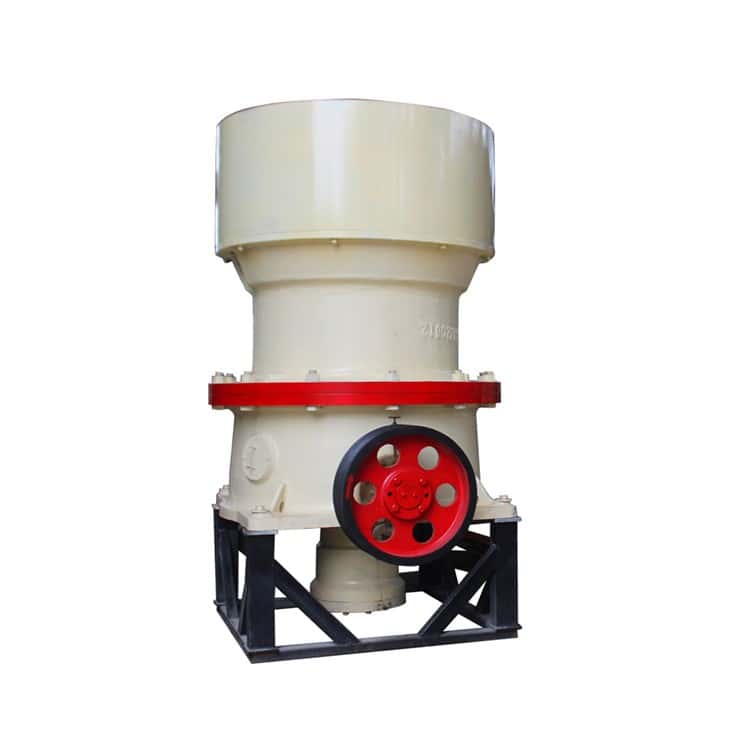

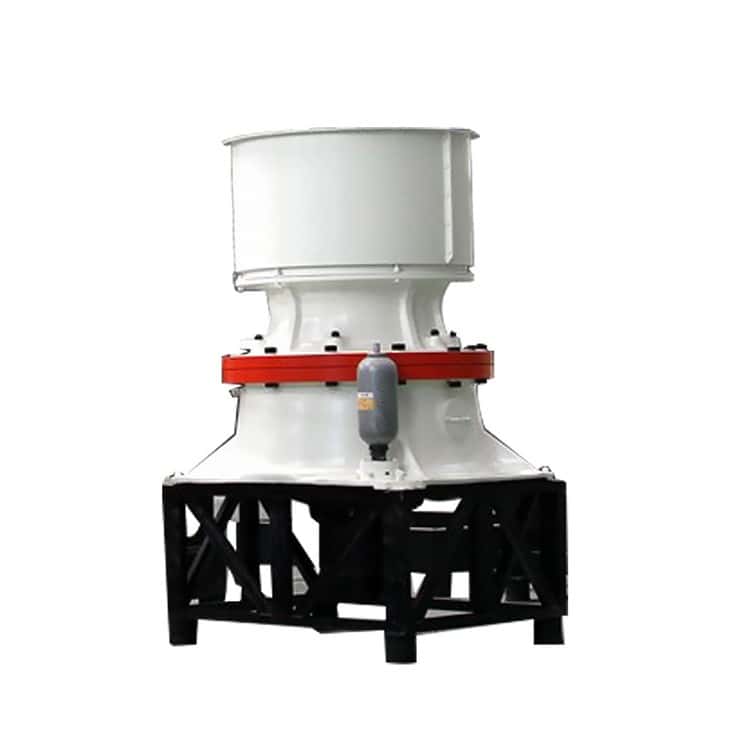

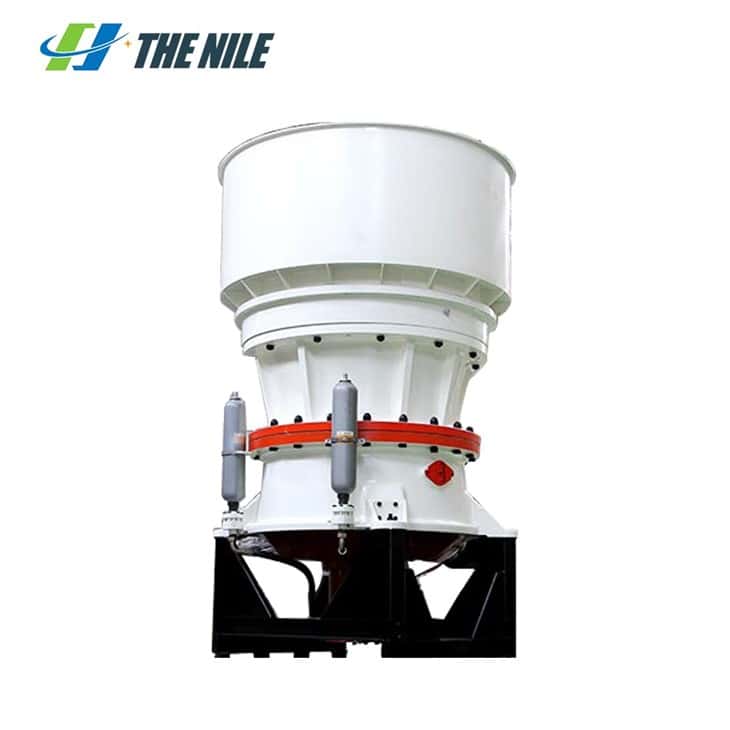

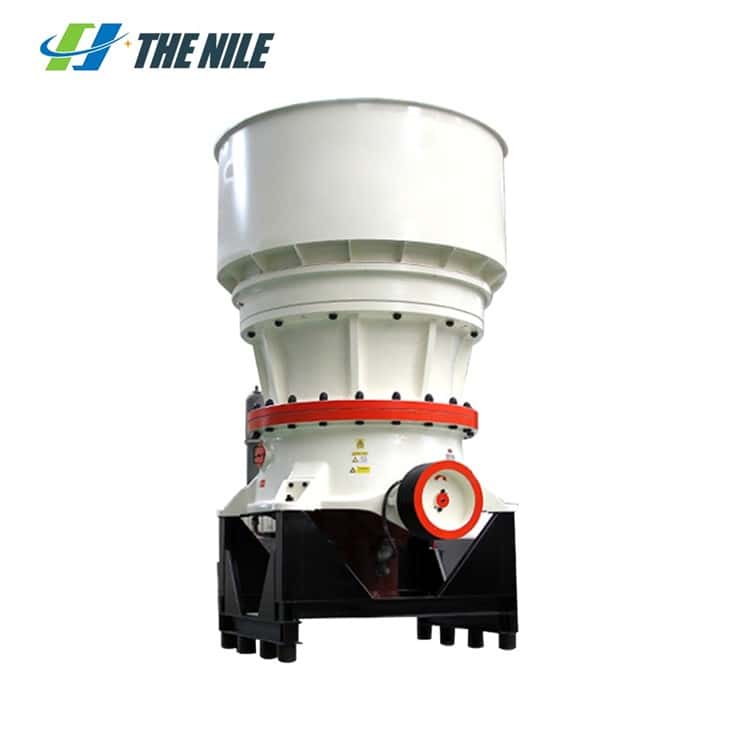

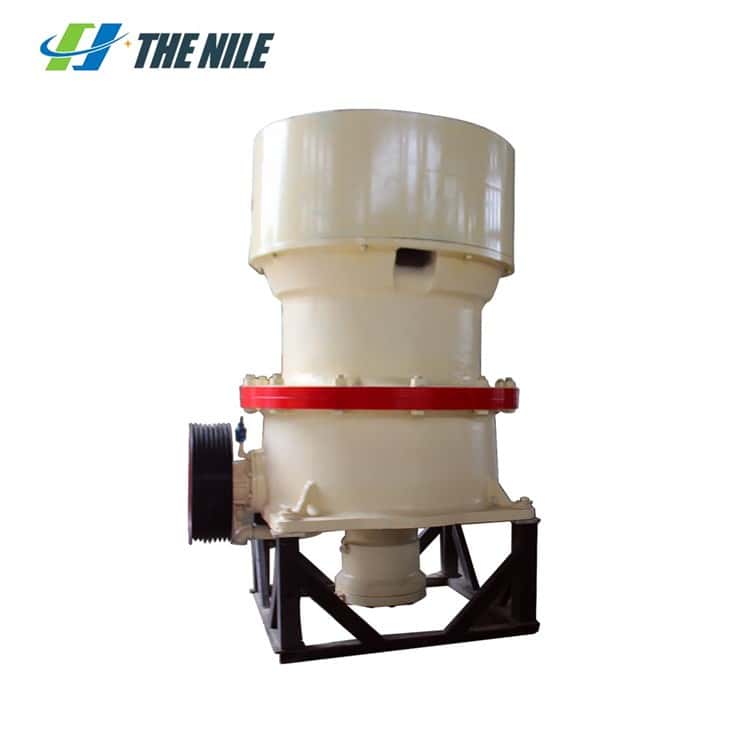

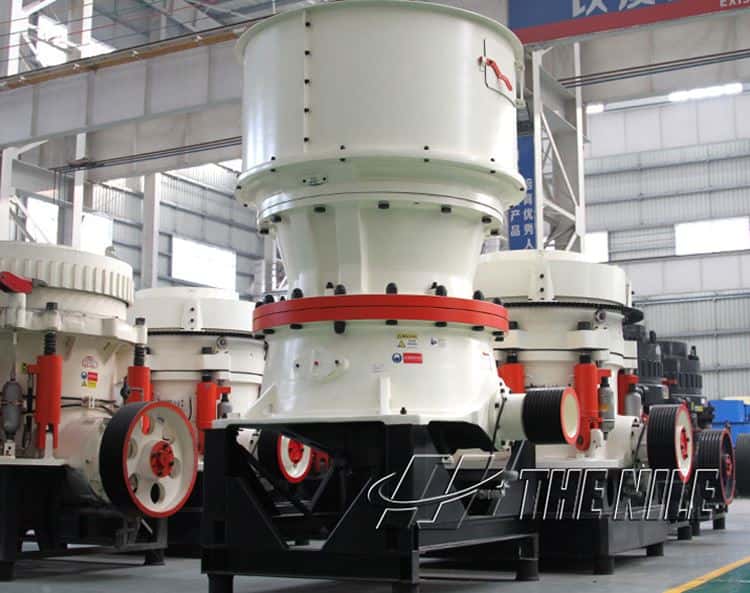

The HD series Single cylinder hydraulic stone cone crusher introduces advanced foreign technology and has a variety of crushing cavities to choose from. By selecting the appropriate crushing cavity type and eccentricity, it can meet the production requirements of customers to the greatest extent and achieve high output.
Product description
The single-cylinder hydraulic cone stone crusher is developed by adopting advanced crushing technology, integrating mechanical, hydraulic, electrical, intelligent control, and other technologies. It has the advantages of high crushing efficiency, low production cost, convenient maintenance, and large production capacity.
Structural composition of single-cylinder hydraulic cone crusher for sale

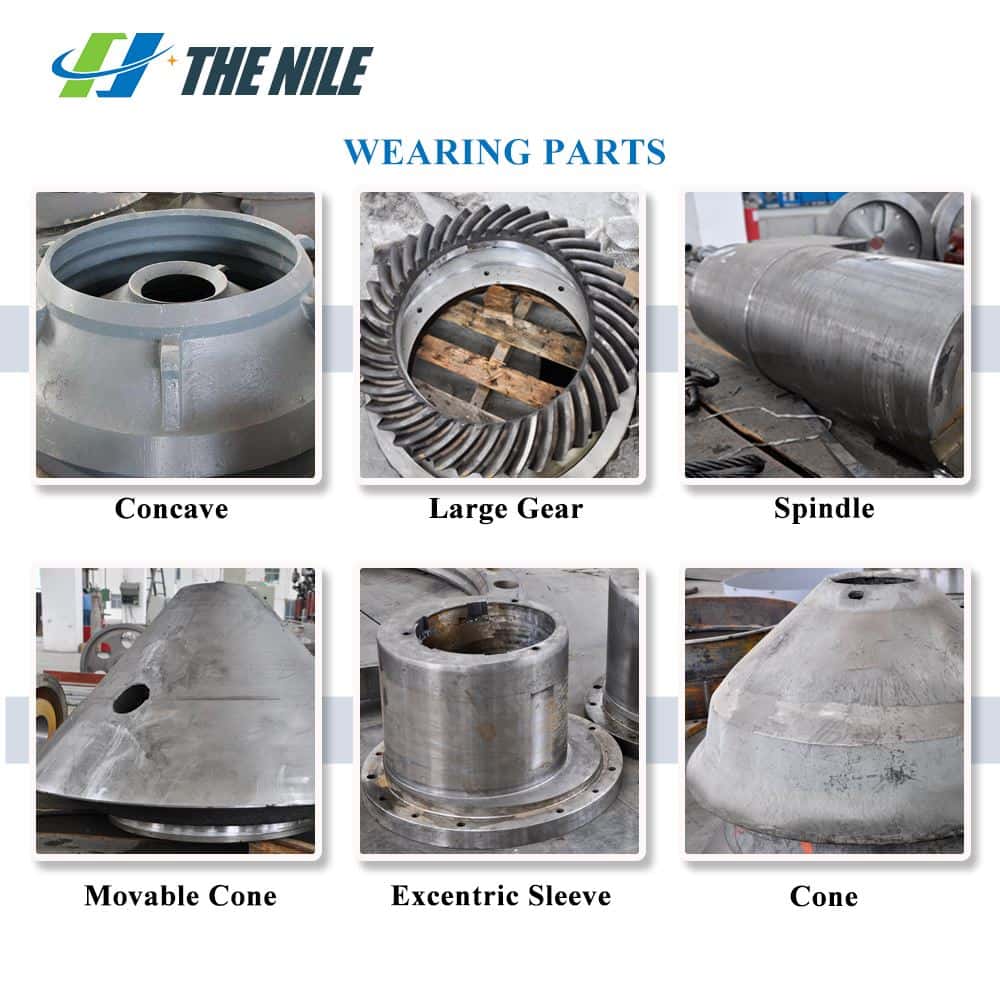

The single-cylinder hydraulic cone crusher machine is an efficient cone crusher, which mainly includes moving cone assembly, upper frame assembly, lower frame assembly, horizontal shaft assembly, eccentric sleeve assembly, hydraulic cylinder assembly, etc. Specifically, it is subdivided into main shaft, broken wall, guard plate, main shaft liner, rolling mortar wall, upper and lower frame, liner, hydraulic cylinder, etc.
Features of single-cylinder hydraulic cone stone crusher are on sale at the factory :
1. Strong crushing rate and high efficiency
The HD series single cylinder hydraulic cone crusher equipment has supports at the upper and lower ends of the main shaft, which can withstand greater crushing force and stroke. With the special crushing cavity shape, the machine has a higher crushing efficiency.
2. The crushing particle size is flexible and adjustable
The single-cylinder hydraulic cone stone crushing machine has a variety of cavity shapes for medium and fine crushing, which can be realized by only replacing the fixed cone.
3. Large production capacity
This machine combines the design of crushing stroke, crushing speed, and crushing cavity shape, with greater production capacity and higher working efficiency.
4. Easy to repair
The single-cylinder hydraulic cone rock crusher has a simple structure, stable performance, and convenient maintenance.
5. Low consumption of wearing parts and low operating cost

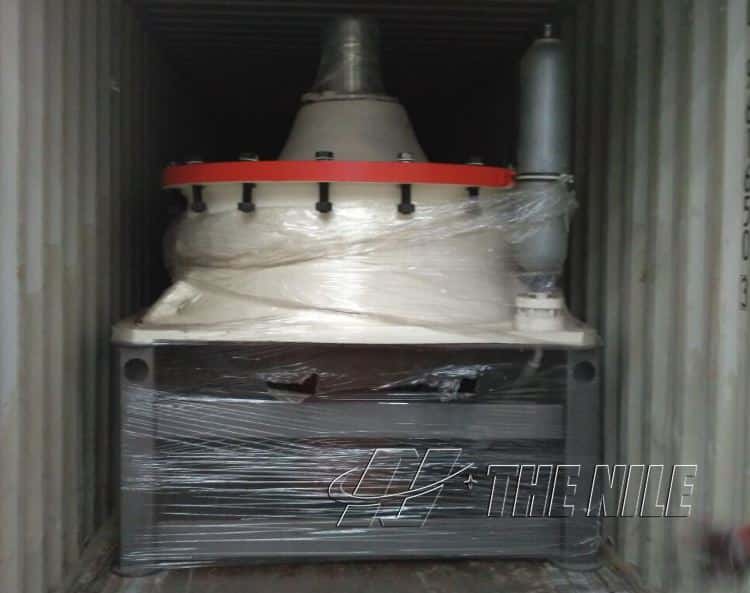

Transport and packaging
The Nile Machinery Company always adheres to the original intention of service, takes every customer seriously, carefully packs each product, and ensures that the product is delivered to the customer intact. And we have our own overseas warehouses in Kenya and Sudan. Customers can observe the machine up close and take the machine away, which is convenient and quick.
←PY Series Spring Cone Stone Crusher
High Efficiency Hydraulic Cone Stone Crushing Machine For Sale→
| Model | Cavity type | Feed size | Output adjusting range | Capacity | Capacity |
| (mm) | (mm) | (t/h) | (kW) | ||
| HD100 | coarse | 200 | 20-50 | 80-190 | 75-90 |
| Medium coarse | 150 | 16-40 | 60-125 | ||
| Fine | 50 | 10-30 | 40-100 | ||
| HD200 | coarse | 250 | 20-70 | 160-280 | 132-160 |
| Medium coarse | 220 | 16-50 | 120-230 | ||
| Fine | 70 | 10-30 | 100-210 | ||
| HD300 | coarse | 300 | 30-80 | 160-500 | 220-250 |
| Medium coarse | 240 | 20-60 | 200-350 | ||
| Fine | 100 | 16-30 | 150-250 | ||
| HD400 | coarse | 400 | 35-100 | 350-600 | 250-315 |
| Medium coarse | 300 | 25-70 | 160-450 | ||
| Fine | 145 | 18-40 | 180-300 | ||
| HD500 | coarse | 500 | 40-120 | 480-800 | 280-355 |
| Medium coarse | 350 | 30-80 | 320-700 | ||
| Fine | 200 | 20-50 | 200-500 |
