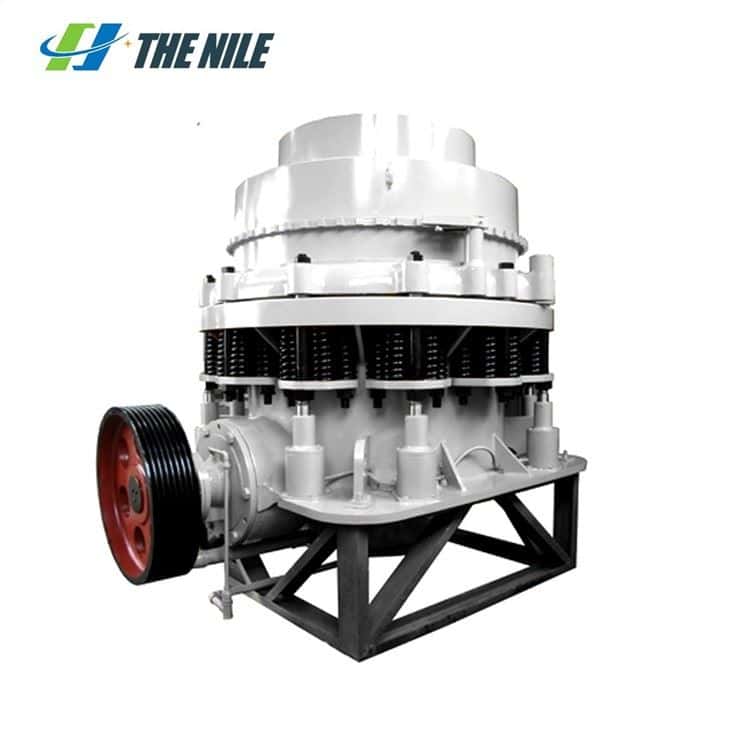

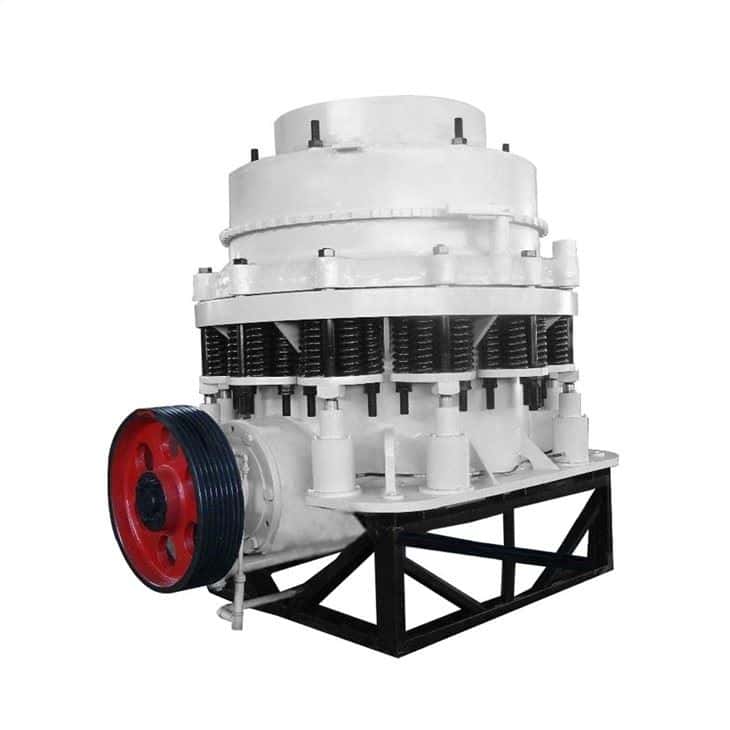

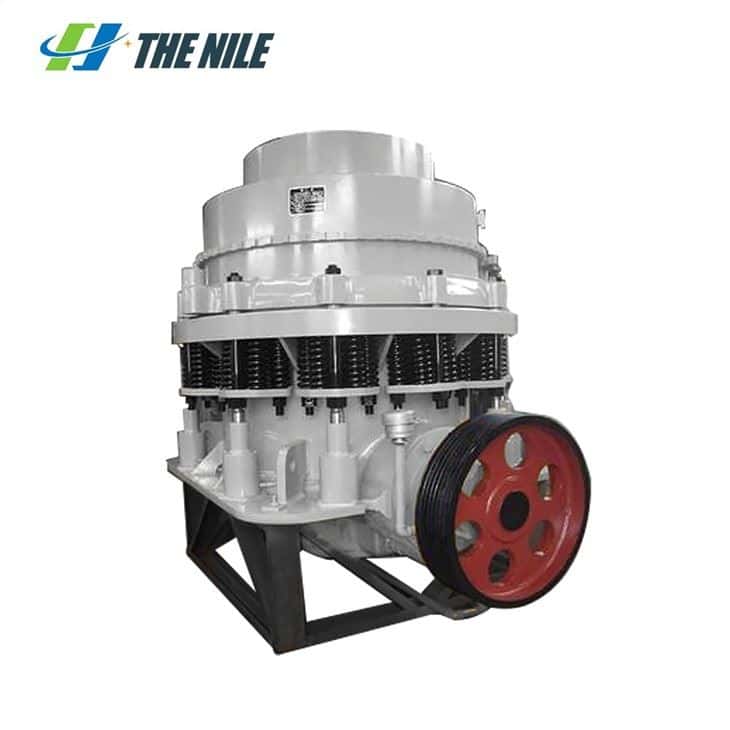

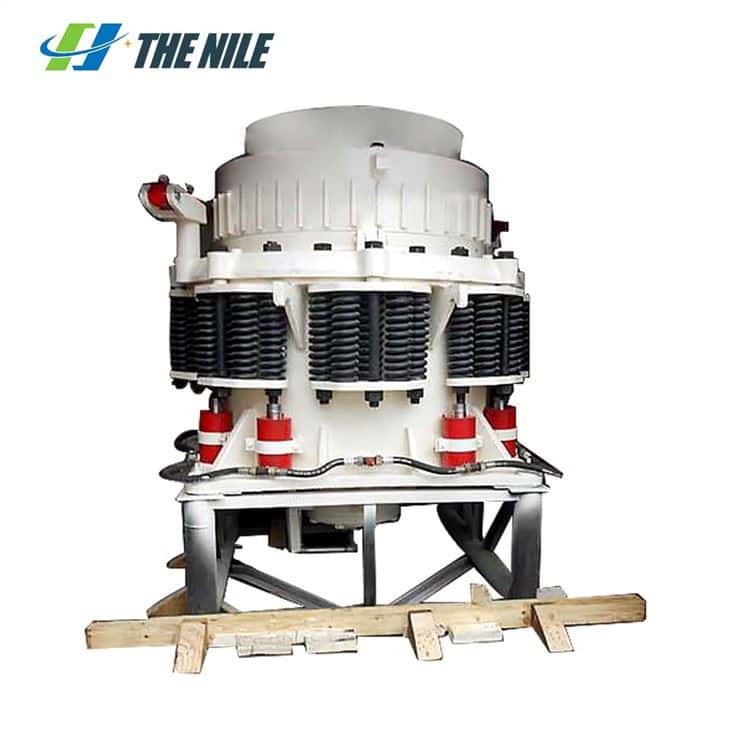

Symons cone crushing machine is based on the introduction and absorption of foreign technology, according to the needs of customers, based on the principle of laminated crushing and the concept of more breaking and less grinding. It is a modern design that integrates high swing frequency, optimized cavity shape, and reasonable stroke. High-performance crusher.
Product description

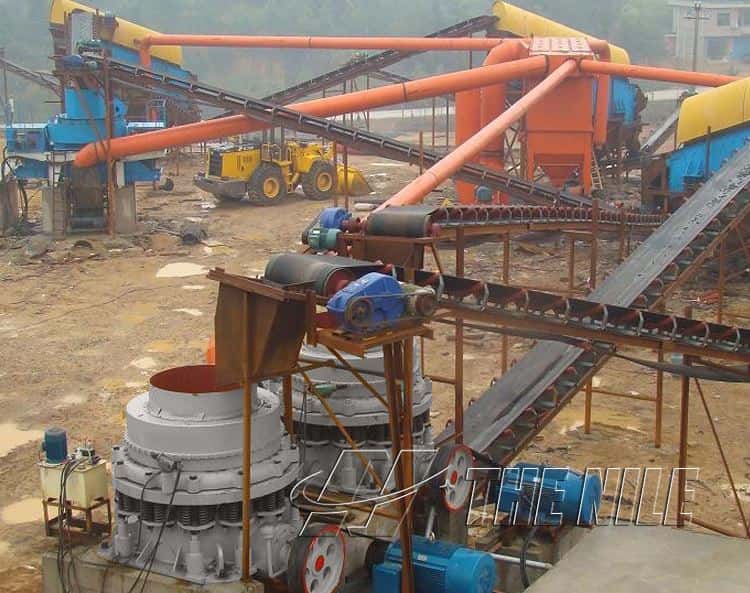

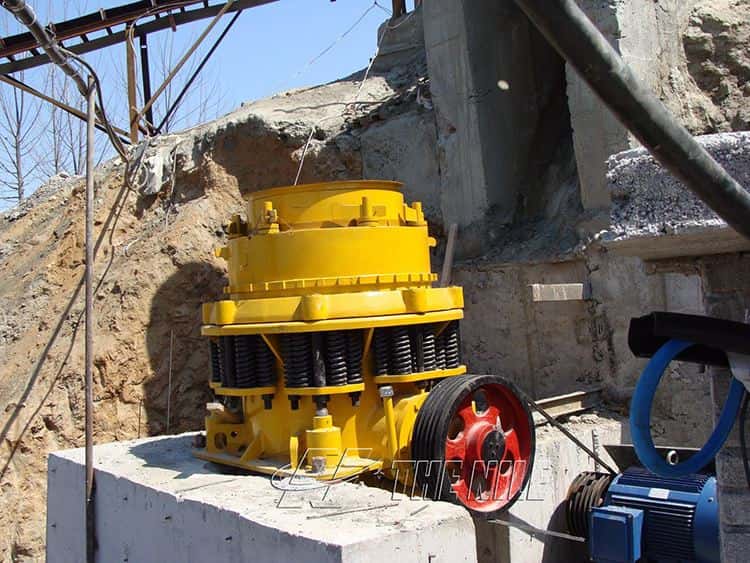

Symons cone crushing machine is an improved, optimized, updated, and replaced product of the PY series spring cone crusher. It has many advantages such as reliable structure, high production efficiency, convenient adjustment, and economic use. It is widely used in metal and non-metal mines, construction, Sand and stone metallurgy, and other industries. The products are well-liked by users and have been sold to many regions.
The working principle of the Symons cone crushing machine
When working, the motor drives the eccentric sleeve to rotate through the V-belt, large pulley, transmission shaft, small bevel gear, and large bevel gear. The axis of the crushing cone rotates and moves under the force of the eccentric shaft sleeve to make the surface of the crushing wall Sometimes it approaches and sometimes leaves the surface of the rolling mortar wall so that the material is continuously squeezed, impacted and bent and crushed in the annular crushing cavity composed of the moving cone. After many times of squeezing, impact, and bending, the material is crushed to the required particle size and discharged through the lower part.
Features of Symons cone crusher for sale
1. The Symons cone rock crusher is equipped with an overload protection device, which allows metal foreign objects to pass through the crushing cavity without harming the machine.
2. The dry oil seal is used to isolate the stone powder from the lubricating oil to ensure reliable operation
3. The Symons cone stone crusher is used in the hydraulic cavity cleaning system, which can quickly clean the crushing cavity and greatly reduce downtime.
4. Using the principle of lamination and crushing, the proportion of cubes in the product is significantly increased, the needle-like stones are reduced, and the grain size is more uniform.
5. Large production capacity, high reliability, convenient maintenance, greatly reducing production costs.

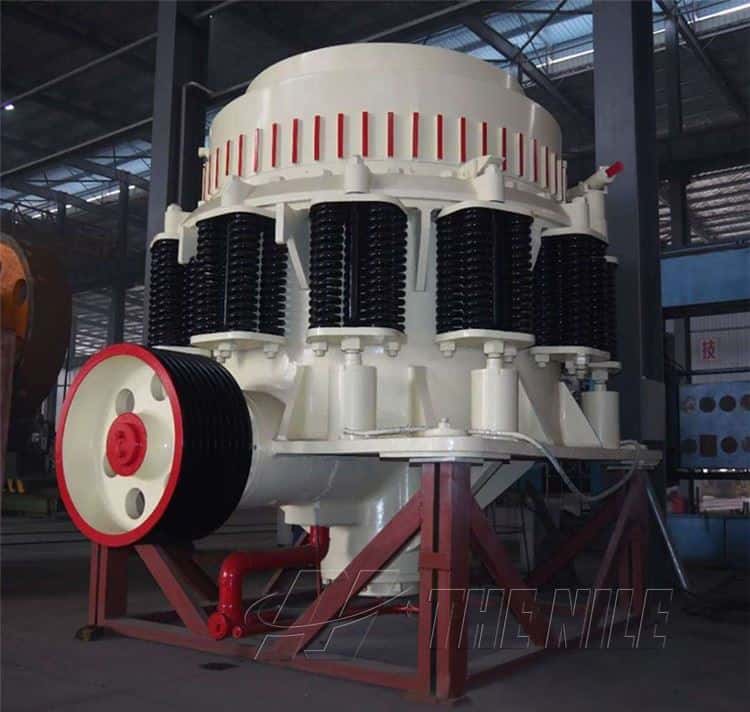

The structure of the Symons cone crusher for mine

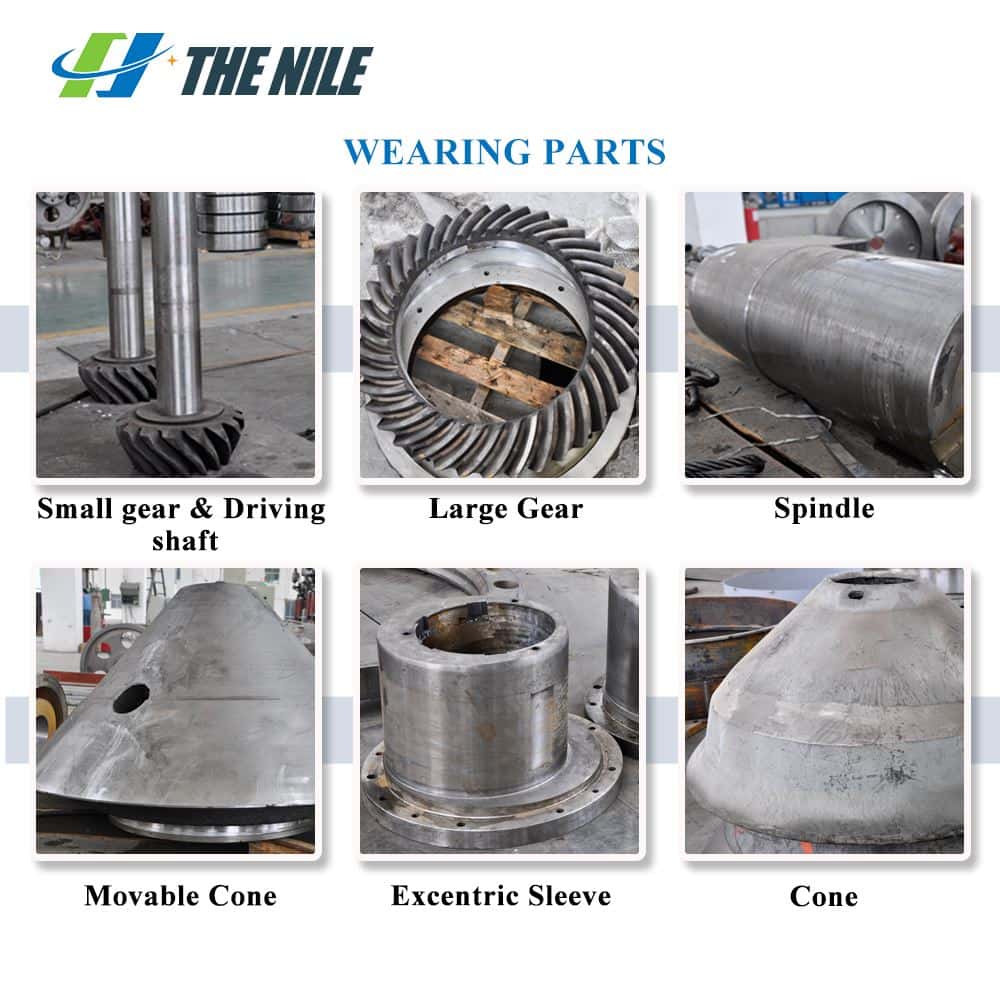

Simmons cone crusher machine is mainly composed of moving cone, fixed cone, crushing cavity, bearing, spring, driveshaft, discharge port, and so on.

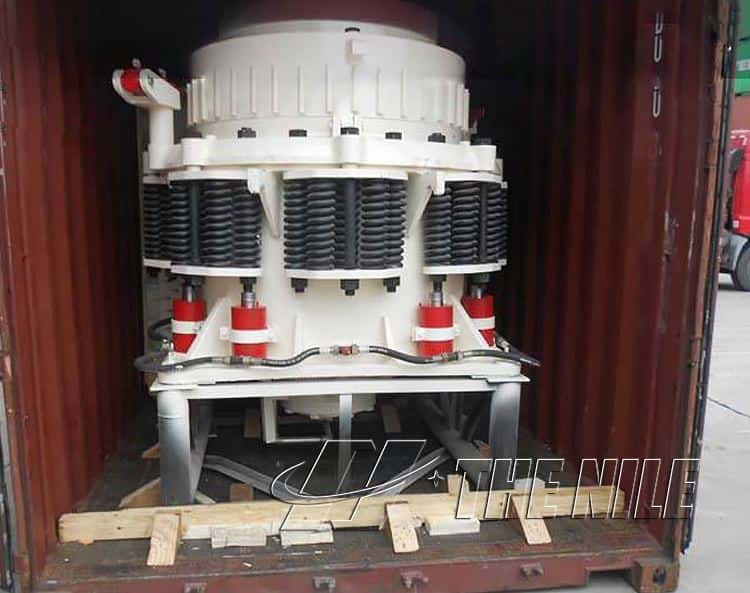

Packaging and shipping

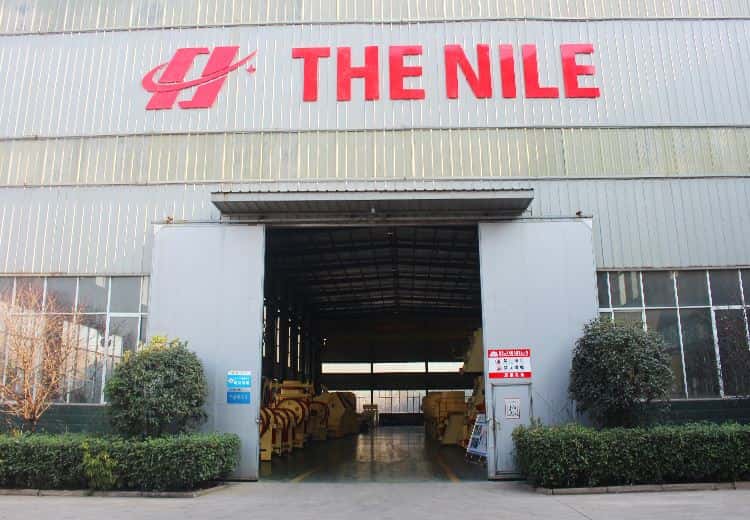

Company strength
The Nile Machinery Equipment Co., Ltd. is a metallurgical machinery professional machinery factory that specializes in mining equipment research and development, manufacturing, sales, and provides professional mining processing plant workflow design, plant installation, equipment maintenance, and mineral processing technical guidance services. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Uganda, Mozambique, South America, the Middle East, and many other countries and regions. At present, we have established our own overseas warehouses in Sudan and Kenya, and we also have our offices in most parts of Africa. You can observe the machinery up close and buy directly, saving transportation costs and time.
| Model NO. | Cavity Type | Max. Feeding size (mm) | Output size | Capacity | Motor Power | Weight |
| (mm) | (t/h) | (kw) | (t) | |||
| PSGB0917 | Standard coarse | 150 | 13-38 | 59-100 | 75 | 9.98 |
| PSGD0907 | Short head coarse | 70 | 9-22 | 45-91 | 75 | 10.53 |
| PSGB1324 | Standard coarse | 205 | 19-51 | 100-180 | 160 | 22.46 |
| PSGD1308 | Short head medium | 115 | 6-19 | 80-160 | 160 | 22.59 |
| PSGB1626 | Standard coarse | 228 | 25-64 | 299-450 | 220 | 43.27 |
| PSGD1608 | Short head medium | 150 | 6-19 | 136-280 | 220 | 43.87 |
