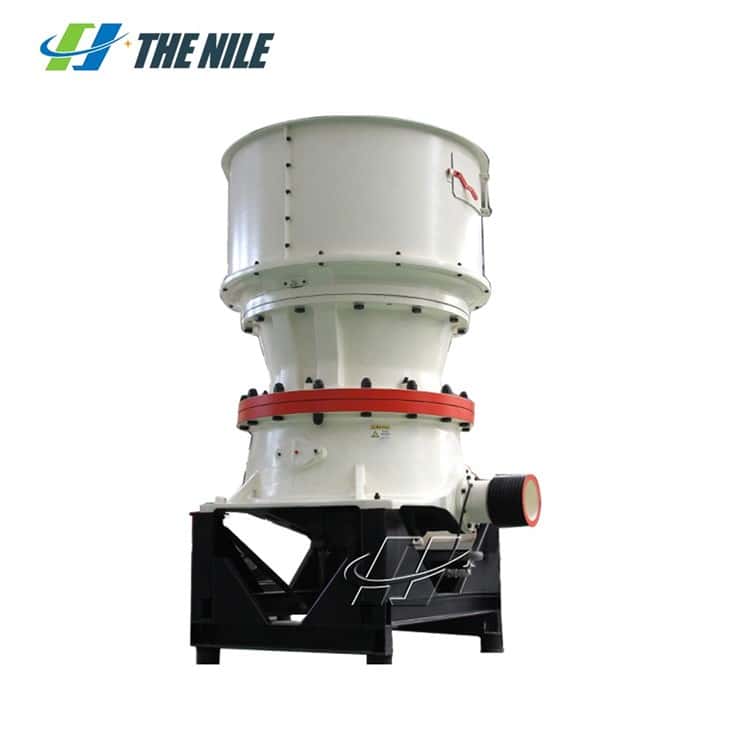

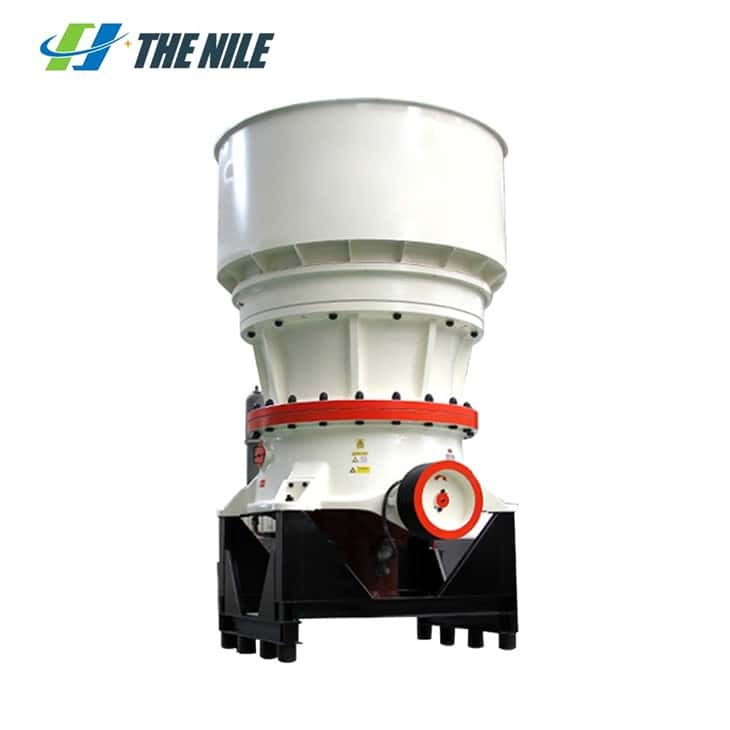

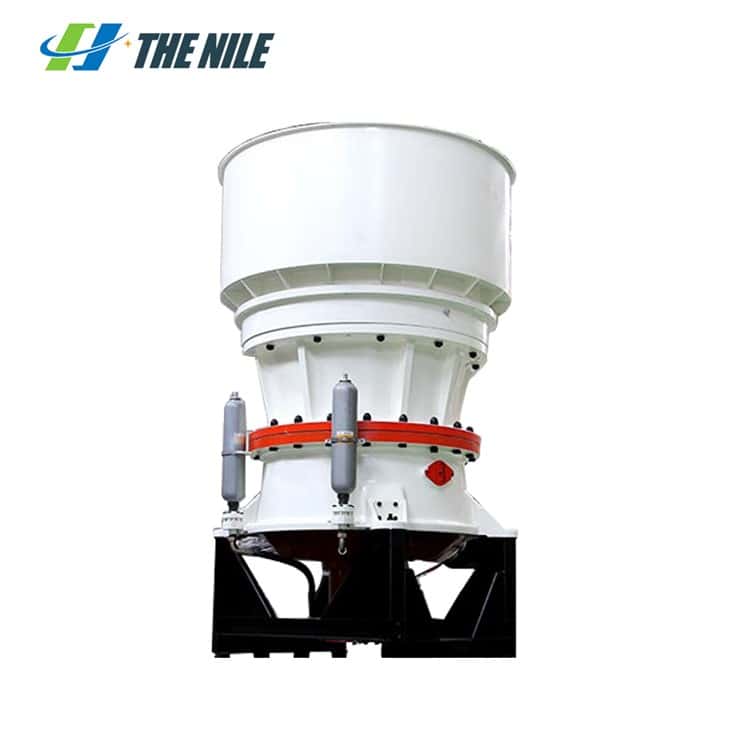

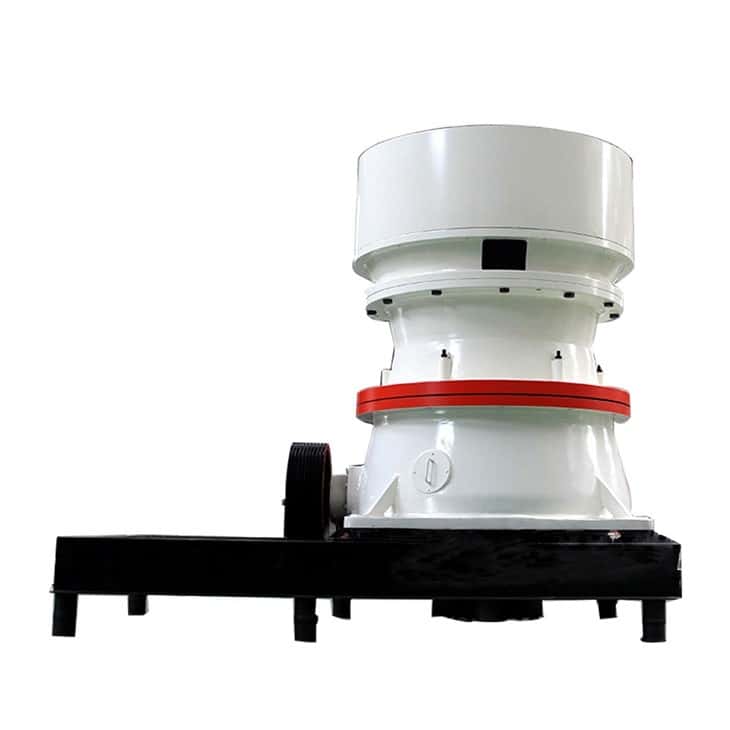

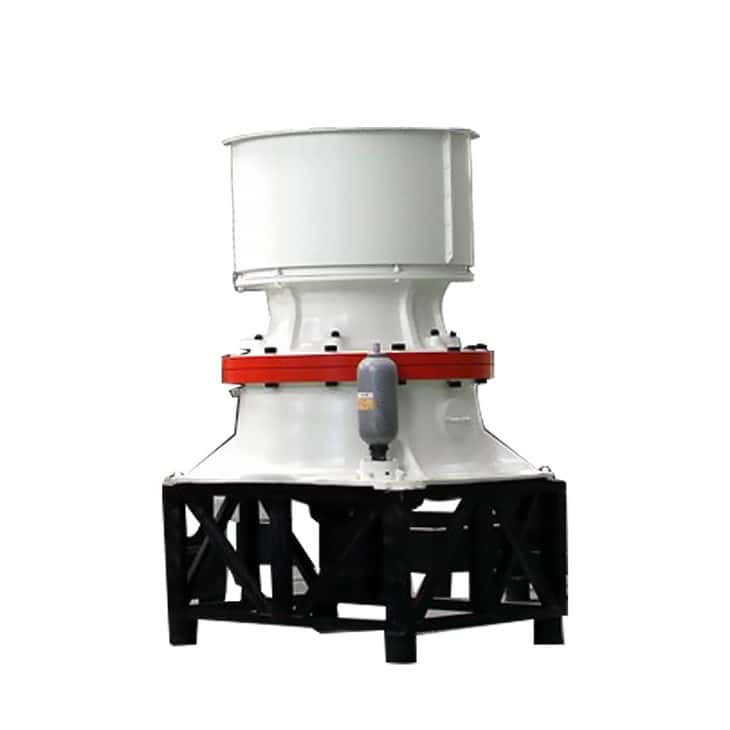

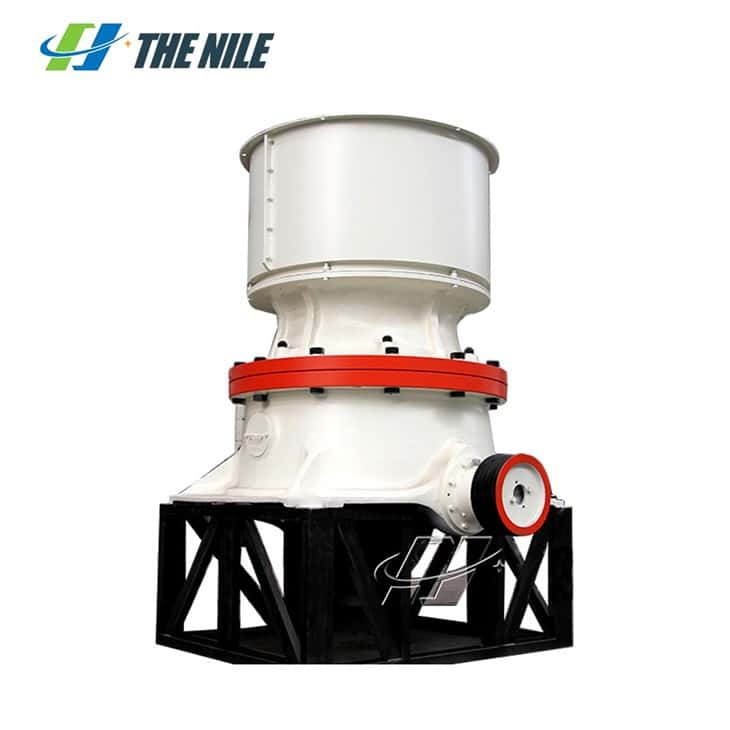

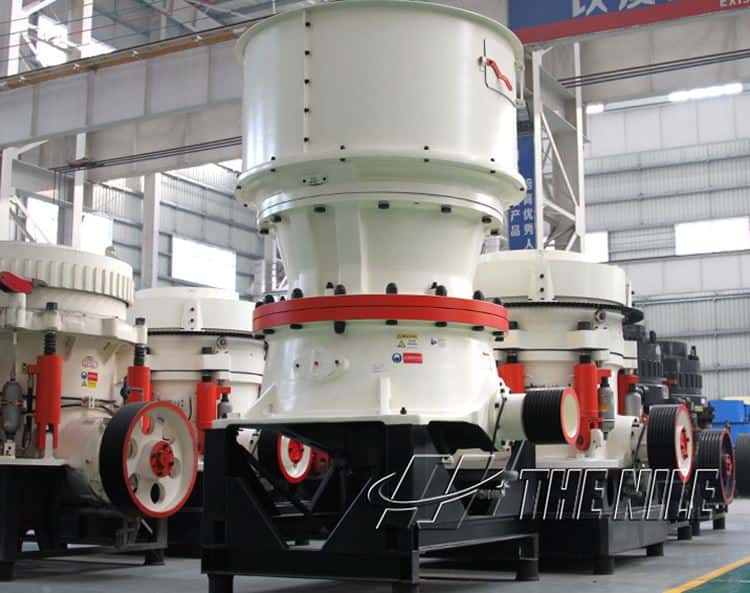

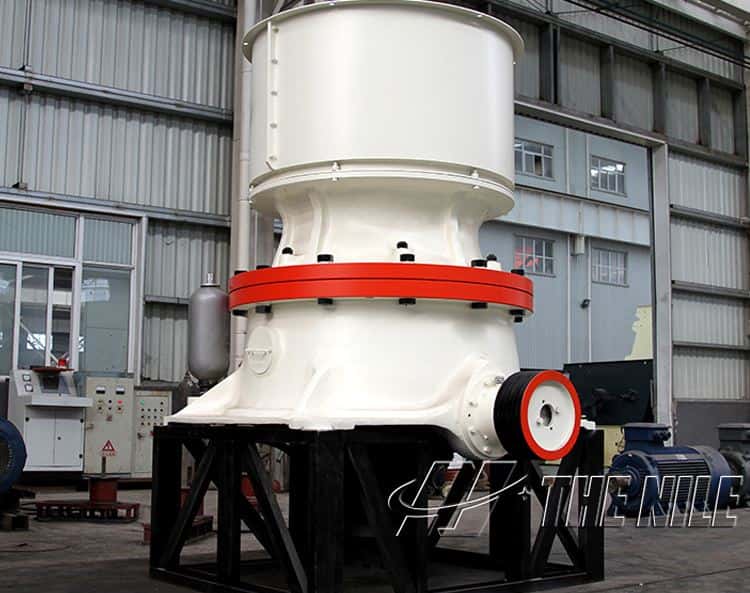

Single Cylinder Hydraulic Cone Rock Crusher

Product description

The single-cylinder hydraulic cone crusher is widely used in secondary crushing in the metallurgy, construction, and road construction industries due to its large feed inlet and long crushing wall. It has a large crushing ratio, high work efficiency, uniform product size, low energy consumption, and convenient adjustment. And many other advantages, are loved by customers and are currently sold to many countries.

Working principle of single-cylinder hydraulic cone stone crusher

When the single-cylinder hydraulic cone crusher machine is working, the motor drives the eccentric sleeve through the V-belt, transmission shaft, and transmission gear. The rotating pendulum of the movable cone moves under the action of the eccentric sleeve, and the movable cone and the fixed cone sometimes approach and deviate from time to time. The material is squeezed in the crushing cavity, impacted and crushed, and the crushed material is discharged from the bottom.

Features of single-cylinder hydraulic cone crusher for sale

1. Optimized design of body and cavity

The single-cylinder hydraulic cone crushing machine produced by the Nile has an enhanced frame structure design, which has higher body strength and more reliable operation. And optimize the design of the crushing chamber, while ensuring the high degree of lamination crushing, the crushing effect of the equipment is not affected by the wear of the liner.

2. Complete protection devices

The hydraulic cone stone crusher uses a single hydraulic cylinder to move the cone up and down to achieve multiple functions such as discharge opening adjustment, cavity cleaning, iron passing, and overload protection.

3. Automated control system

The single-cylinder hydraulic cone crusher machine is equipped with an electronic intelligent discharge port control system, which realizes more production process control and operation optimization functions.

4. Wide range of applications

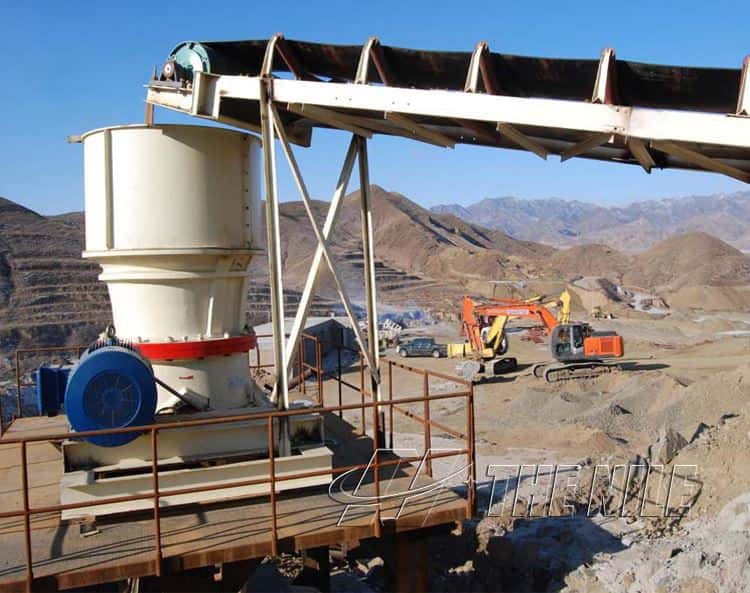

The single-cylinder hydraulic cone crusher machinery can be widely used in various black, non-ferrous, non-metallic mining, and sand and gravel industries.

5. Combination of hydraulic lubrication station

The combined design of the hydraulic station and lubrication station saves installation space; the hydraulic system adopts a high-pressure design to meet ordinary pressure requirements, and the equipment has a higher pressure margin during operation, which improves the reliability of the hydraulic system.

Structural composition of single-cylinder hydraulic cone rock crusher

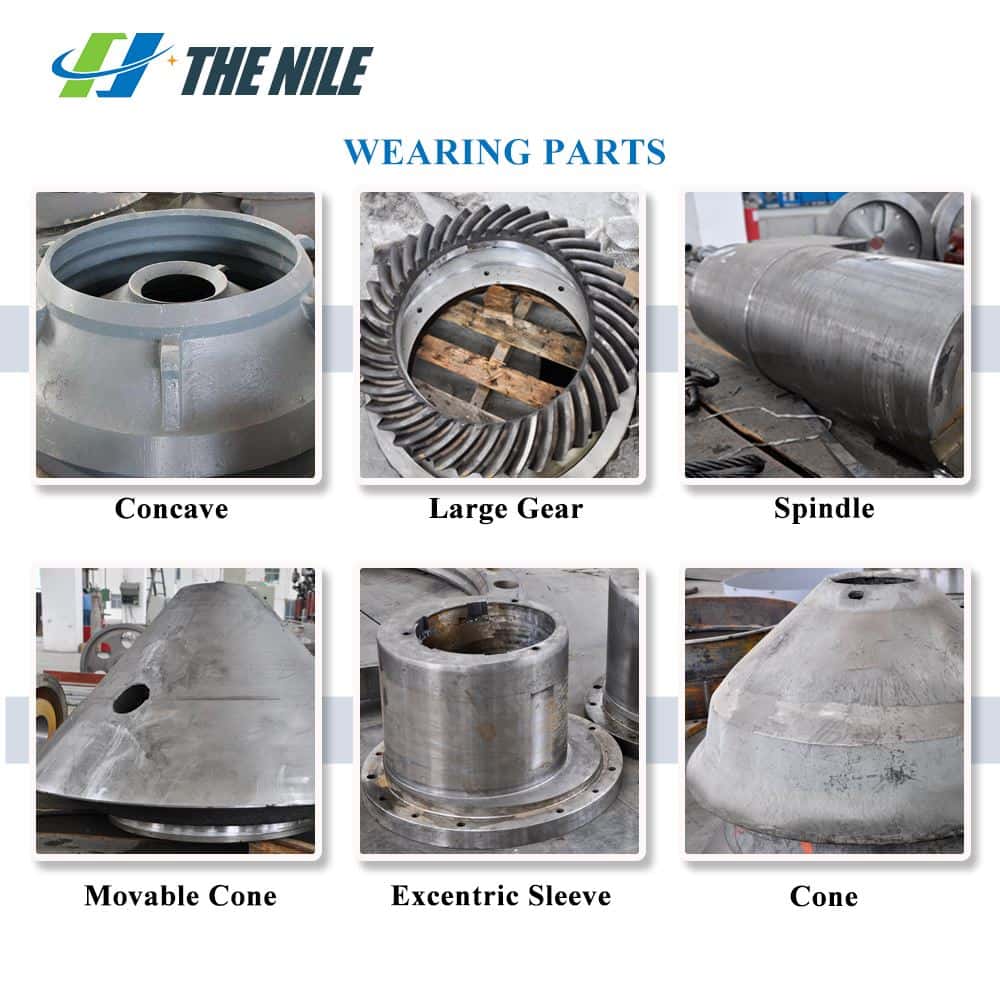

The single-cylinder hydraulic cone crusher machine is mainly composed of a frame, the main shaft, a crushing wall, a rolling mortar wall, a hydraulic cylinder, a liner, and a movable cone assembly.

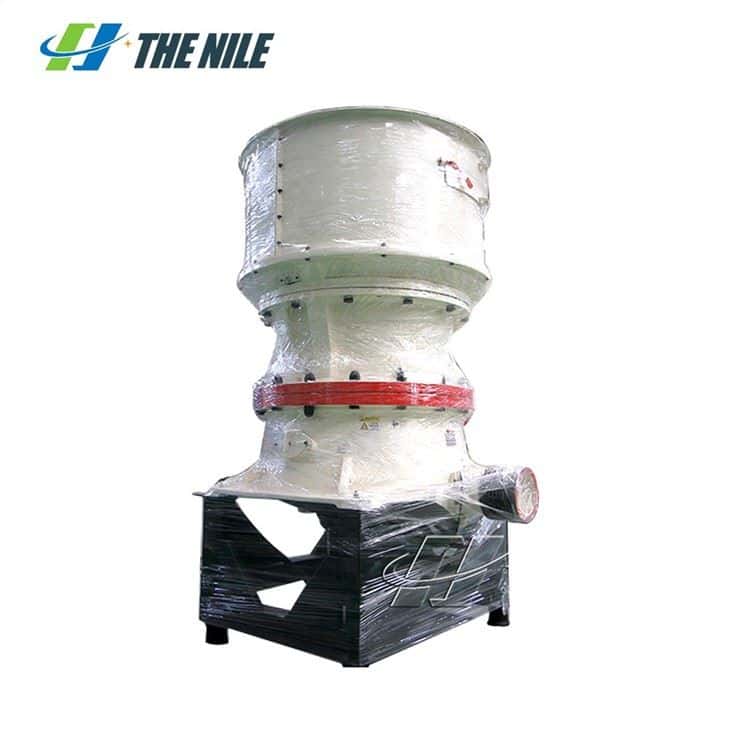

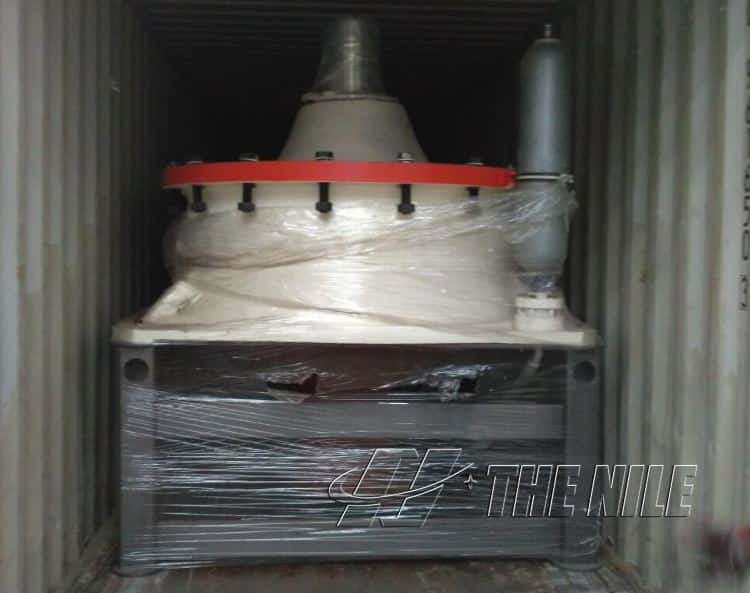

Packaging and shipping

Company strength

The Nile Machinery Equipment Co., Ltd. is a metallurgical machinery professional machinery factory that specializes in mining equipment research and development, manufacturing, sales, and provides professional mining processing plant workflow design, plant installation, equipment maintenance, and mineral processing technical guidance services. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Uganda, Mozambique, South America, the Middle East, and many other countries and regions. At present, we have established our own overseas warehouses in Sudan and Kenya, and we also have our offices in most parts of Africa. You can observe the machinery up close and buy directly, saving transportation costs and time.
