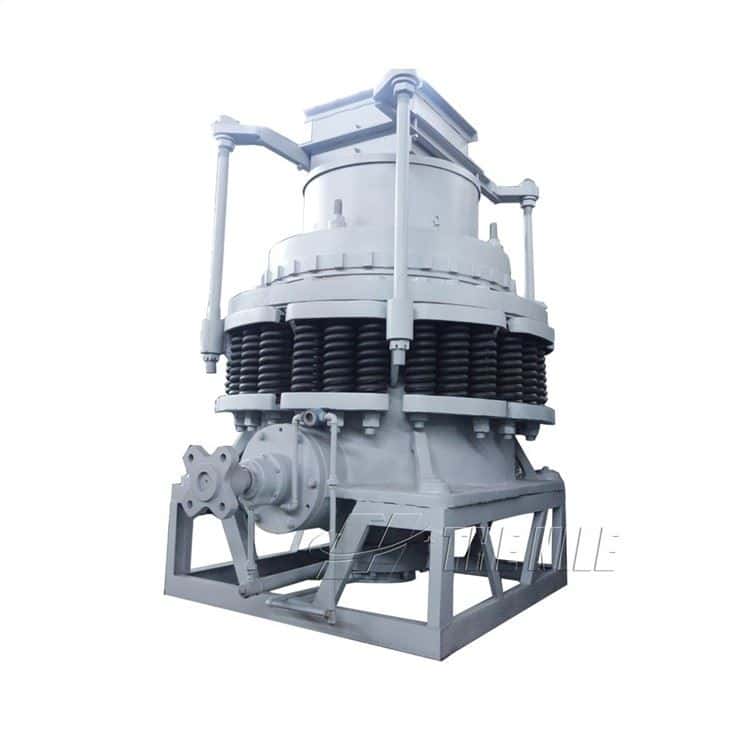

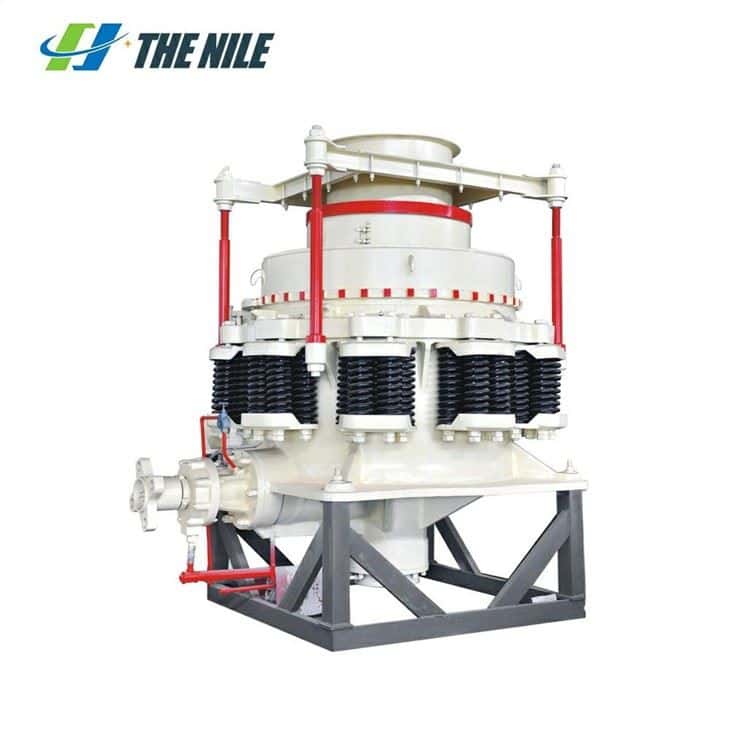

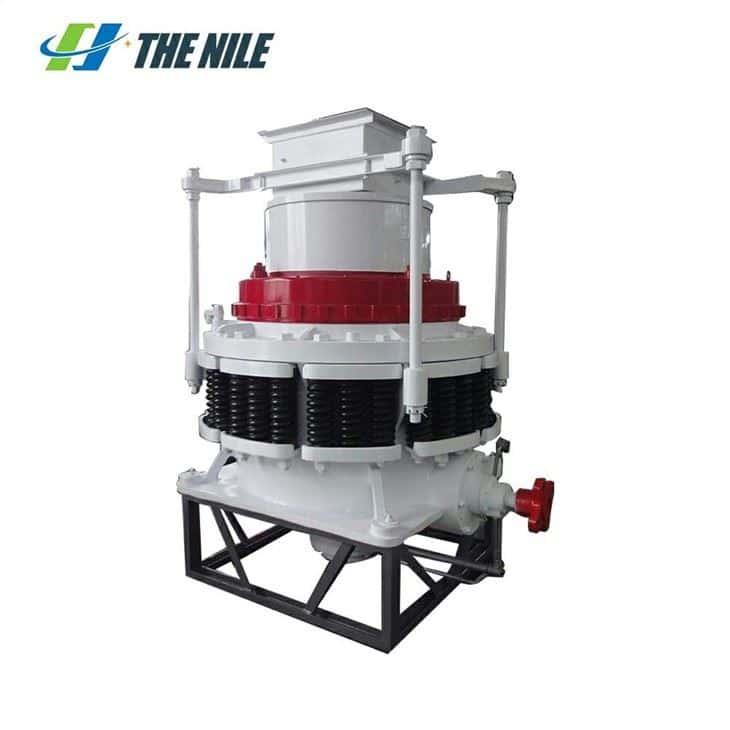

PY Series Spring Cone Stone Crusher

Product introduction:

The PY series spring cone crusher machine is a kind of cone crusher, which is a new type of crusher developed and improved on the basis of the old-fashioned cone crusher. It is mainly used for secondary medium crushing and tertiary fine crushing. The safety system of this machine adopts spring overload protection and dry oil (or water) sealing form. Users can choose PYB standard type, PYD short head type, PYZ medium crushing cavity type according to the use of the ore.

Scope of application:

The spring cone crushing machine can be widely used in the construction industry, metallurgical industry, and chemical industry. It is suitable for crushing hard and medium hard ores and rocks, such as iron ore, copper ore, limestone, quartz, granite, basalt, diabase, etc.

Working principle:

When the spring cone crusher equipment is working, the motor drives the eccentric sleeve to rotate through the transmission device, and the moving cone rotates and swings under the force of the eccentric shaft sleeve. The section of the moving cone close to the static cone becomes the crushing cavity. After the crushed material enters from the inlet, it is squeezed and impacted by the moving cone and the static cone many times to finally form a material that meets the required particle size. When the moving cone leaves this section, the formed material falls under its own gravity and is discharged from the bottom of the cone.

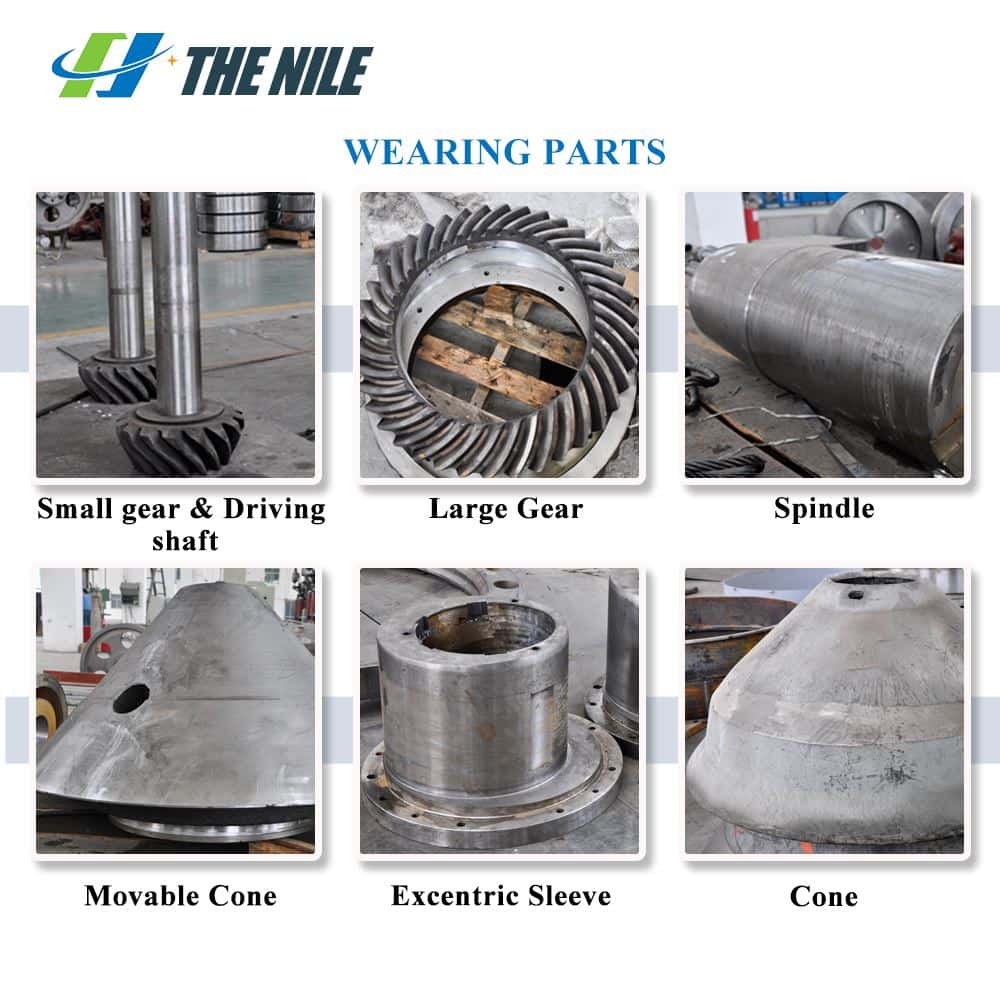

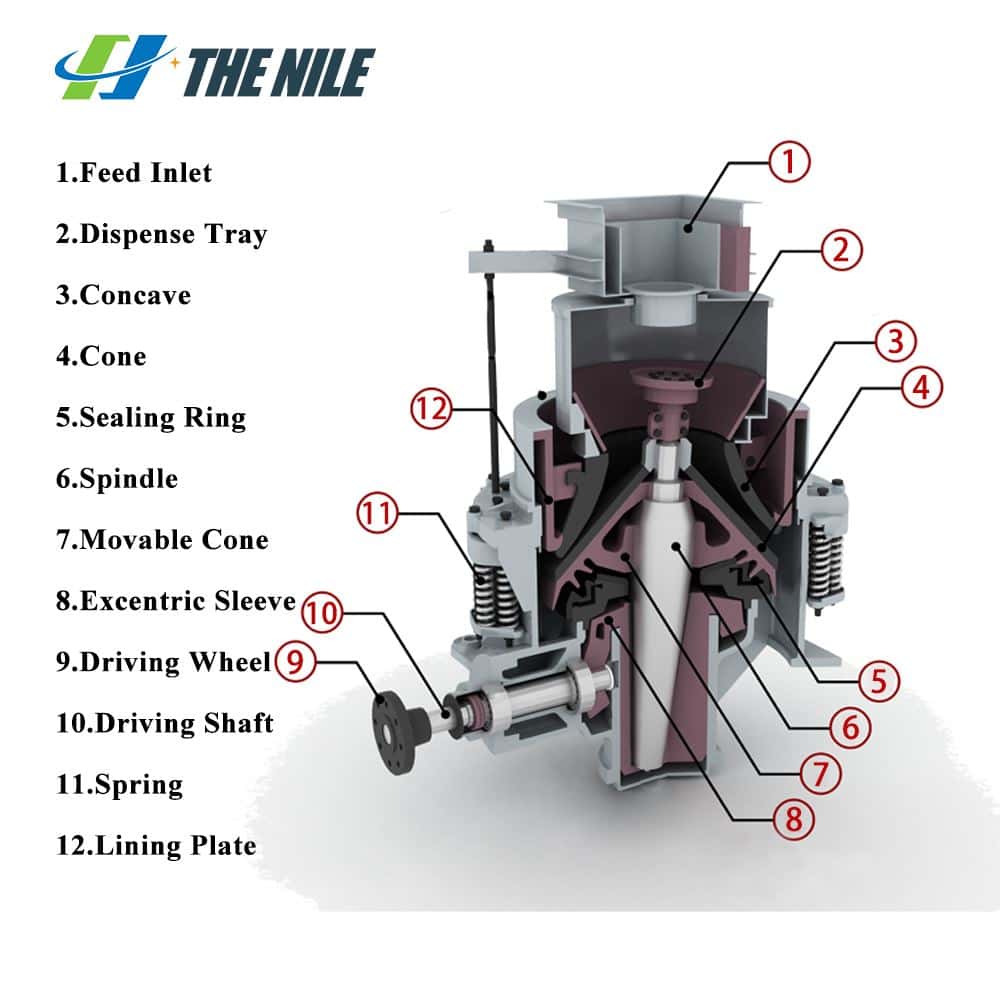

The spring cone crusher machine for sale is mainly composed of a feeding hopper, a distribution plate, a rolling mortar wall, a support frame, a crushing cavity, the main shaft liner, a drive shaft, a spring, and a hydraulic station for adjusting the discharge port.

Packaging and shipping

Our products are transported and packaged in plastic film and wooden boxes, which are not easily damaged. And the products are rented for special transportation of large-scale machinery vehicles and ships, and the entire transportation process is safe and reliable.
