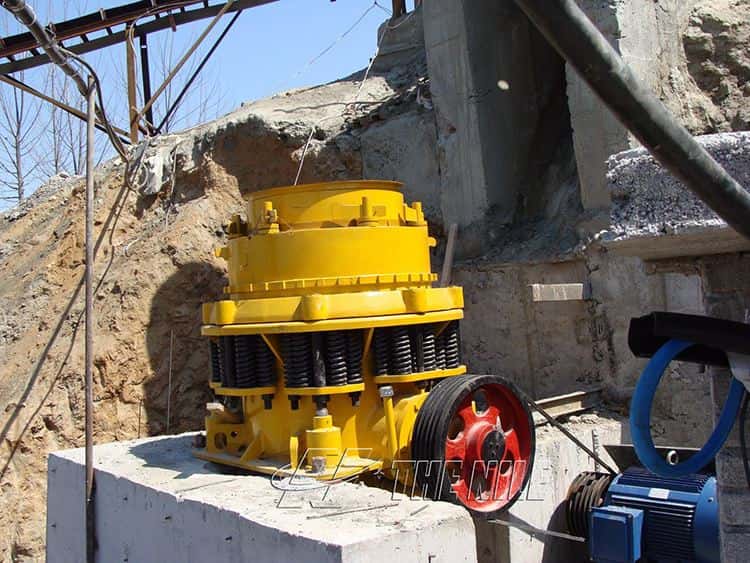

Application range: PSG Series symons stone cone crusher is widely used in metal ore smelting, construction industry, highway, railway, silicate industry, dry mortar, and other industries.
Product Introduction

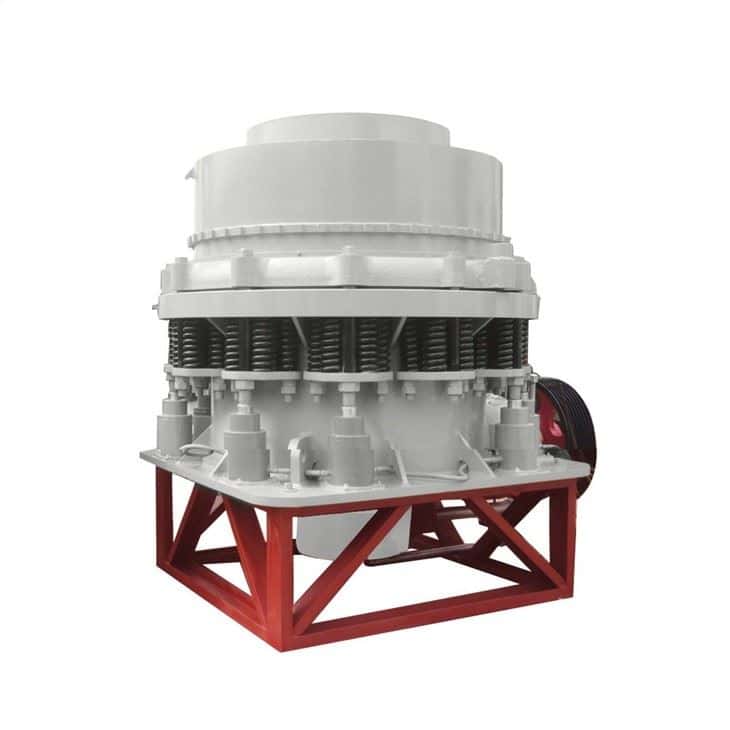

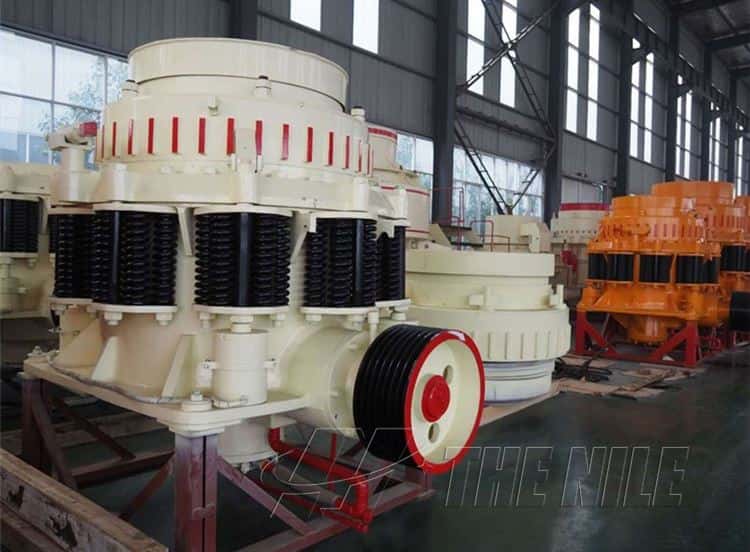

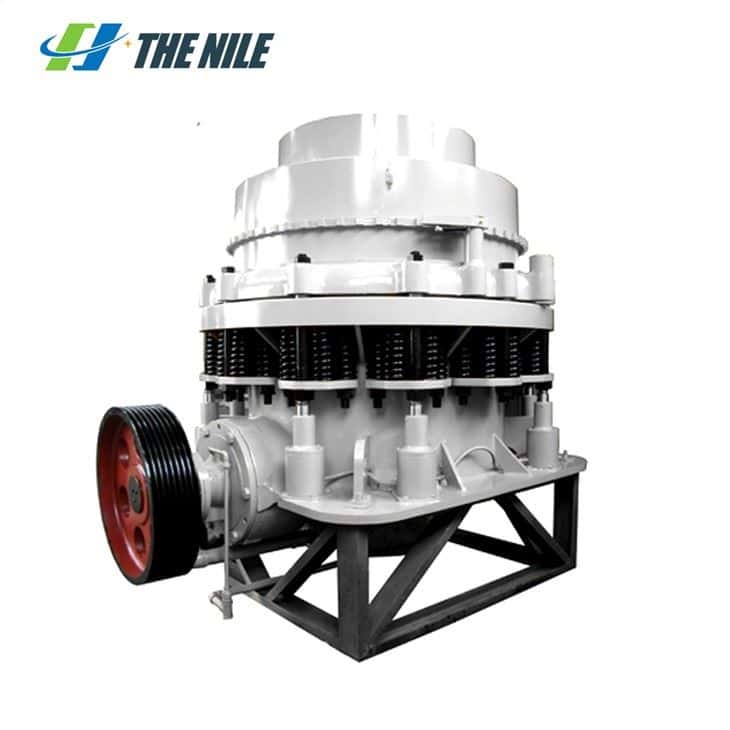

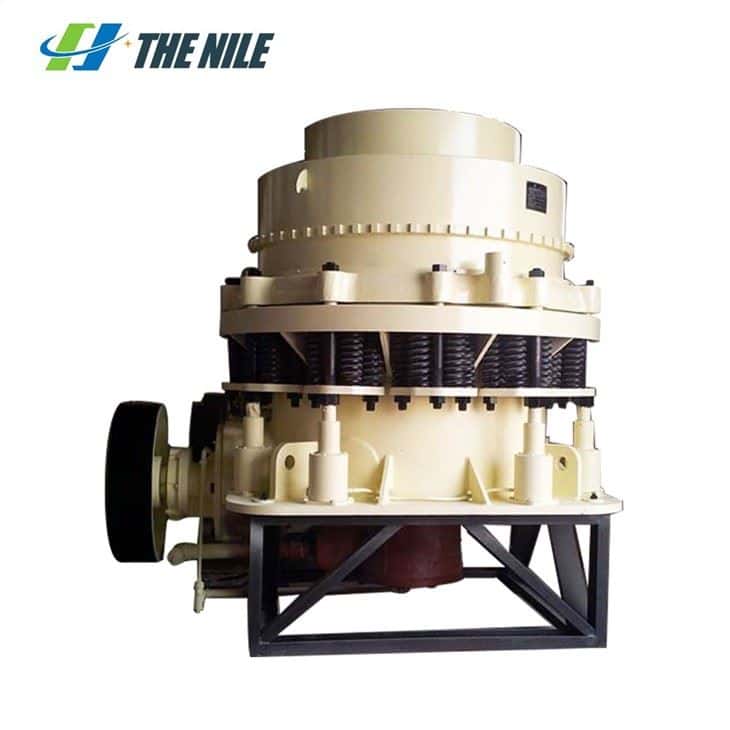

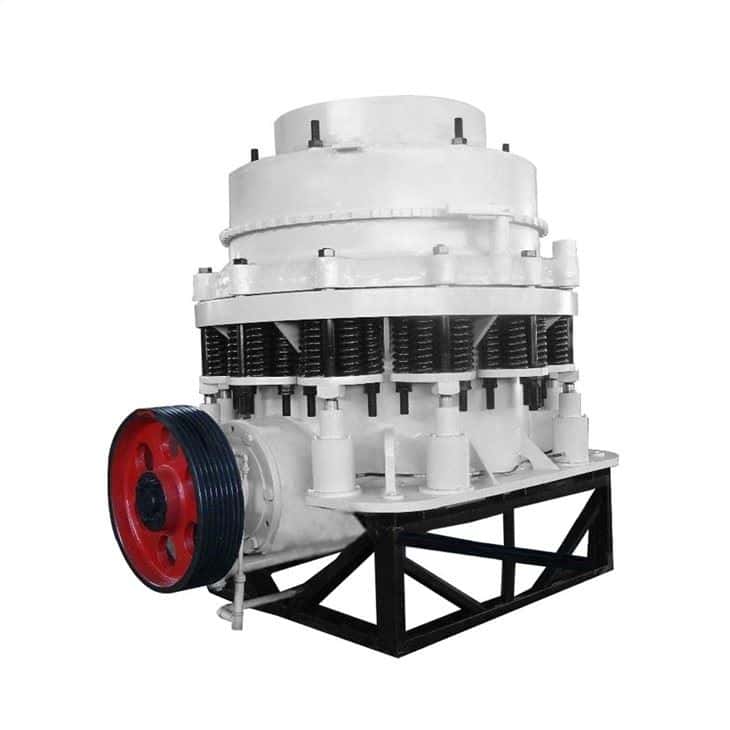

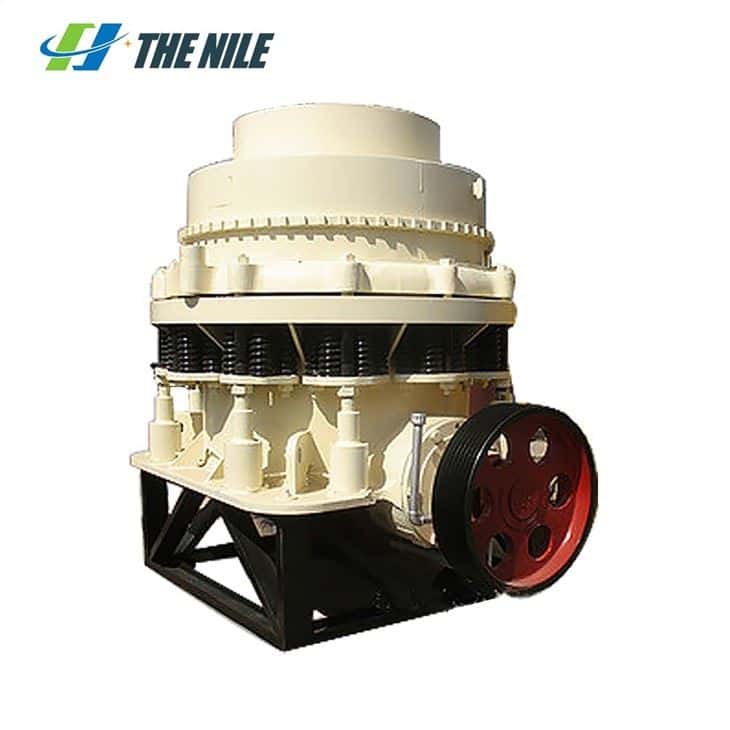

PSG Series Symons cone crusher is a new mining cone crusher introduced by the Nile manufacturers in combination with foreign advanced technology. Compared with the traditional old spring cone crusher, the crusher can realize various functions such as hydraulic automatic adjustment of discharge port size, automatic cavity cleaning, cavity shape optimization, and so on. The machine has a high degree of automation, which can effectively reduce the particle size of the ore into grinding, and realize more crushing and less grinding.
The structure of the High-efficiency Symons cone crusher machine

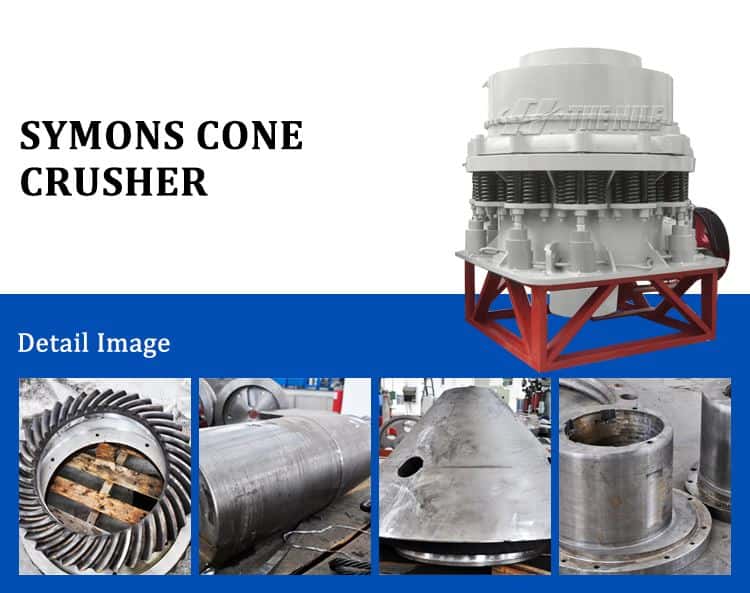

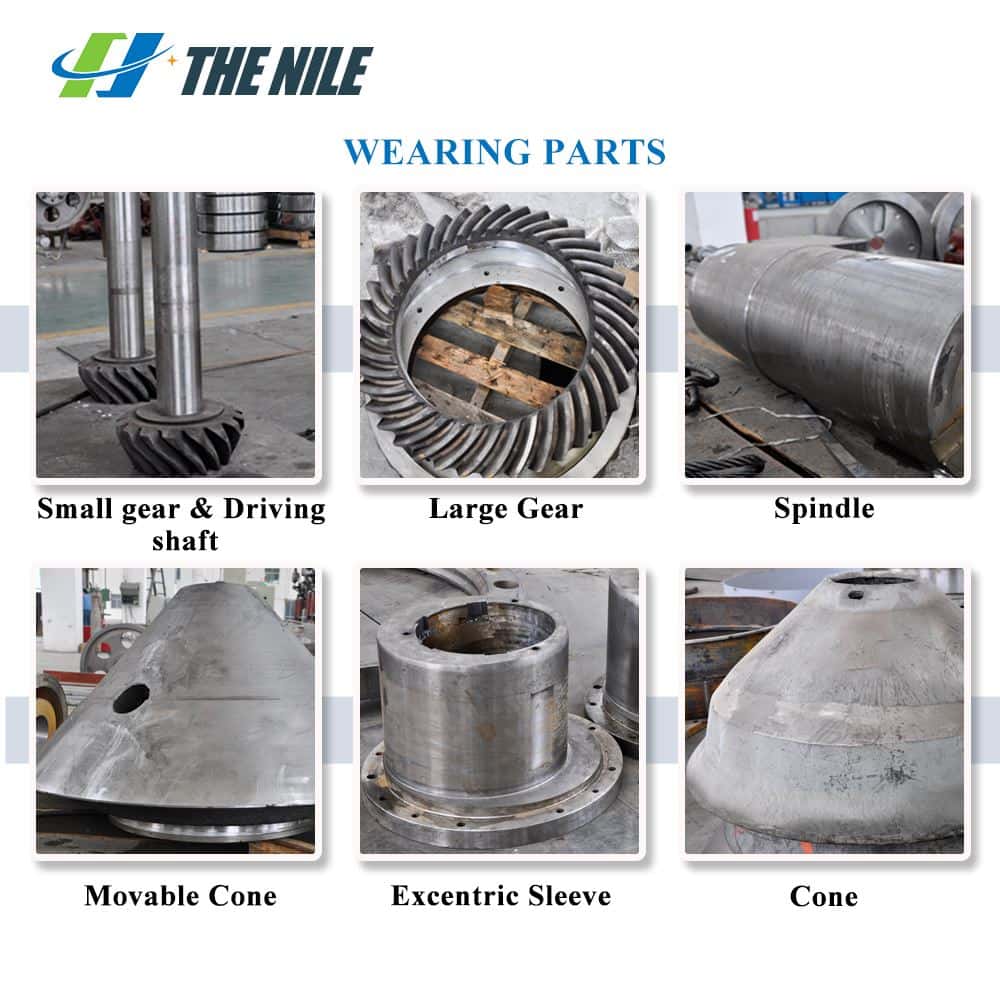

The Symons rock cone crusher is mainly composed of a frame, a fixed cone assembly, a movable cone assembly, a spring mechanism, a bowl-shaped shaft frame, and a transmission. The auxiliary part is composed of the electrical system, a thin oil lubrication system, and a hydraulic cavity cleaning system. The fixed cone assembly is mainly composed of adjusting sleeves and rolling mortar walls. The movable cone assembly is mainly composed of the main shaft, the movable cone, the broken wall, etc. The transmission part is mainly composed of the large belt wheel, the transmission shaft, the small bevel gear, and the large bevel gear. And other compositions.
Features of Symons cone crusher for sale
1. High output and good grain shape
The Symons rock cone crusher adopts the principle of lamination and crushing, the content of needle flakes is less, and the particles are more uniform.
2. Diverse types of crushing cavity, flexible and convenient
The Symons cone stone crushing machine has two different cavity types, the standard coarse type, and short head coarse type, with a maximum processing capacity of 450t/h and a strong processing capacity.
3. Convenient maintenance
The Symons cone crusher equipment adopts a hydraulic cavity cleaning system that can quickly clean the crushing cavity, and all parts can be disassembled from the upper part of the side so that the fixed cone and the movable cone assembly can be easily disassembled.
4. Long service life of the equipment
The high-quality Symons cone crusher adopts a water-sealed method to reduce dust and impurities entering the body, thereby ensuring the cleanliness of the lubricating oil, prolonging the service life of the sliding bearing, and ensuring the stable and reliable operation of the equipment.
FAQ：
Q1: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q2: What about the quality of your products?
A: Our products are manufactured strictly in accordance with national and international standards, and we always test every piece of equipment before delivery. We guarantee if the quality of products is different from the description we described before your placing order, we promise a 100% refund.
Q3: Is the price of products reliable?
A: Yes, we are a manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that "According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ".
| Model NO. | Cavity Type | Max. Feeding size (mm) | Output size | Capacity | Motor Power | Weight |
| (mm) | (t/h) | (kW) | (t) | |||
| PSGB0917 | Standard coarse | 150 | 13-38 | 59-100 | 75 | 9.98 |
| PSGD0907 | Short head coarse | 70 | 9-22 | 45-91 | 75 | 10.53 |
| PSGB1324 | Standard coarse | 205 | 19-51 | 100-180 | 160 | 22.46 |
| PSGD1308 | Short head medium | 115 | 6-19 | 80-160 | 160 | 22.59 |
| PSGB1626 | Standard coarse | 228 | 25-64 | 299-450 | 220 | 43.27 |
| PSGD1608 | Short head medium | 150 | 6-19 | 136-280 | 220 | 43.87 |
