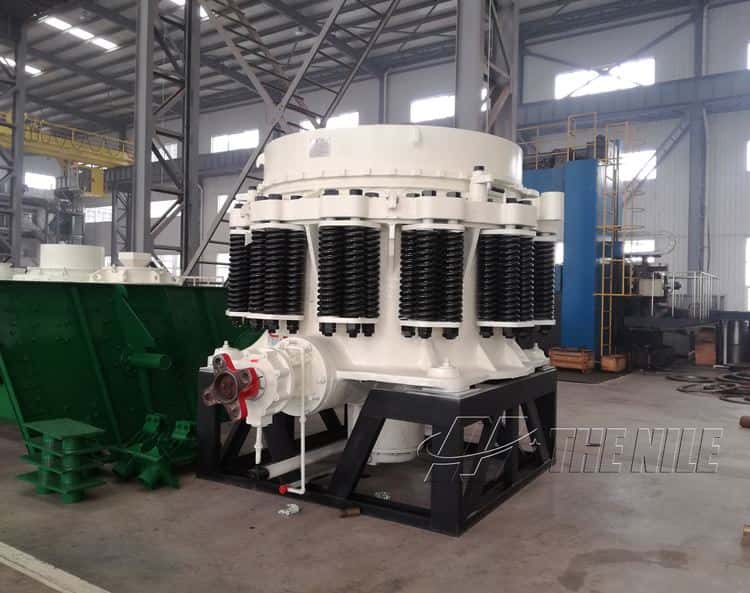

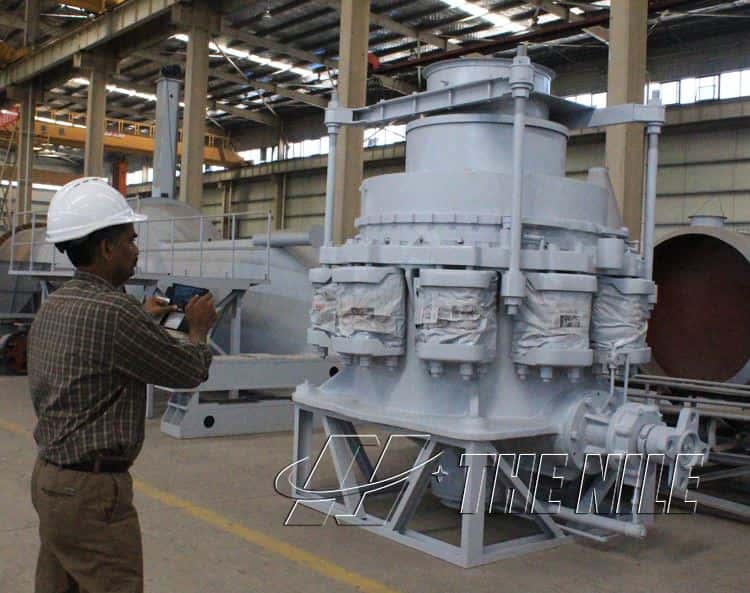

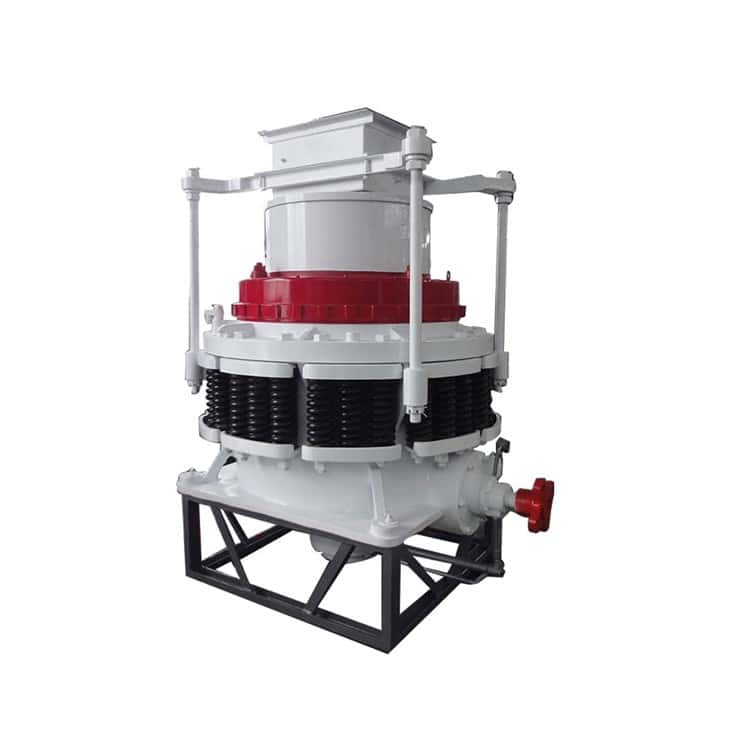

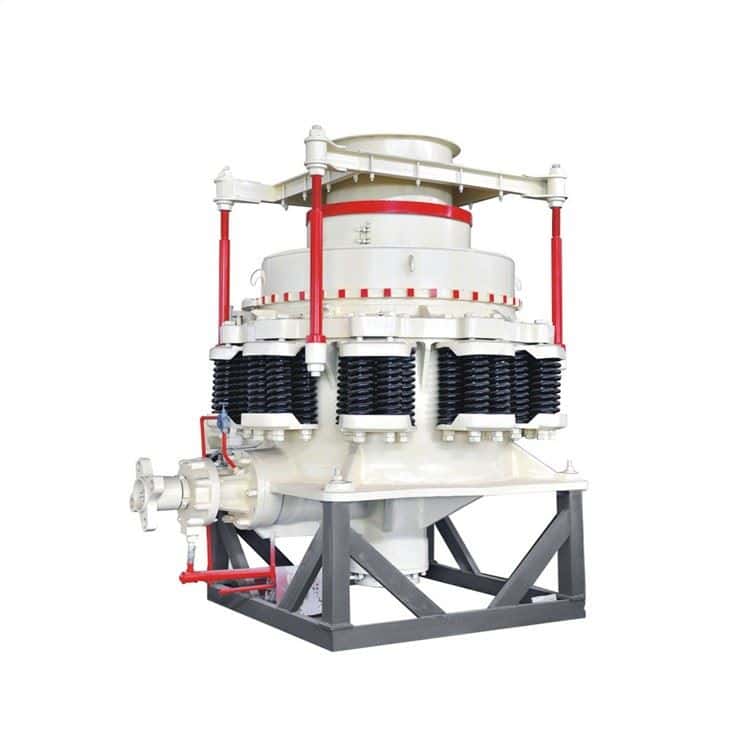

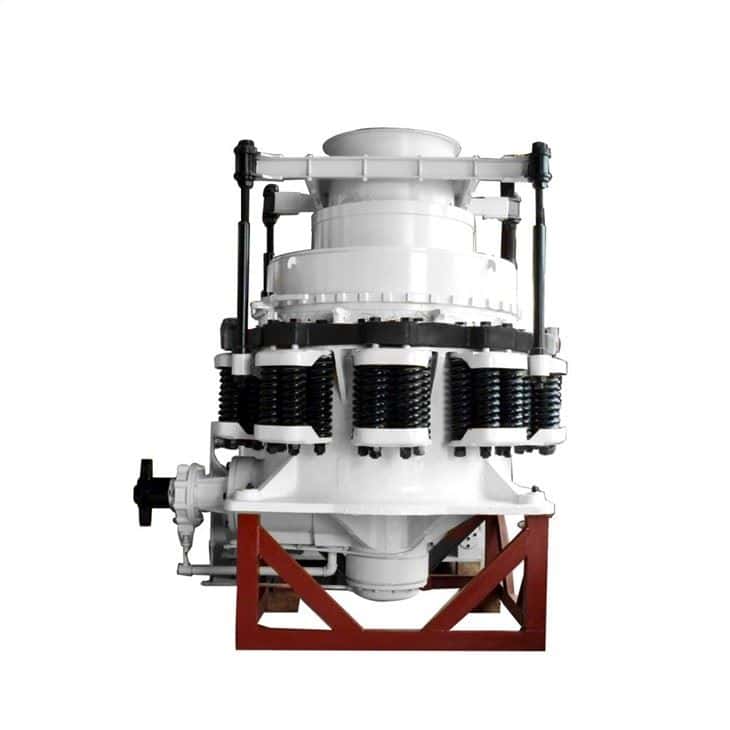

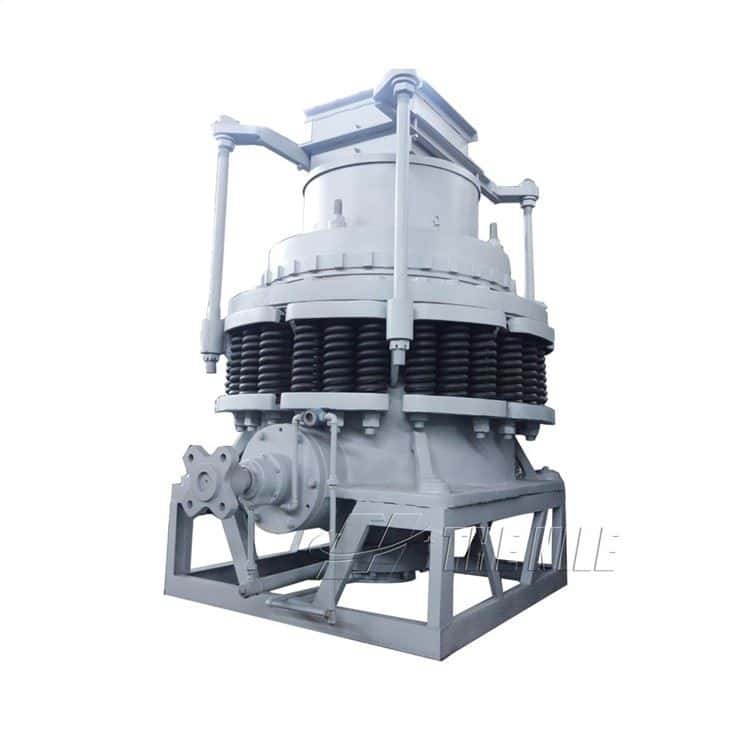

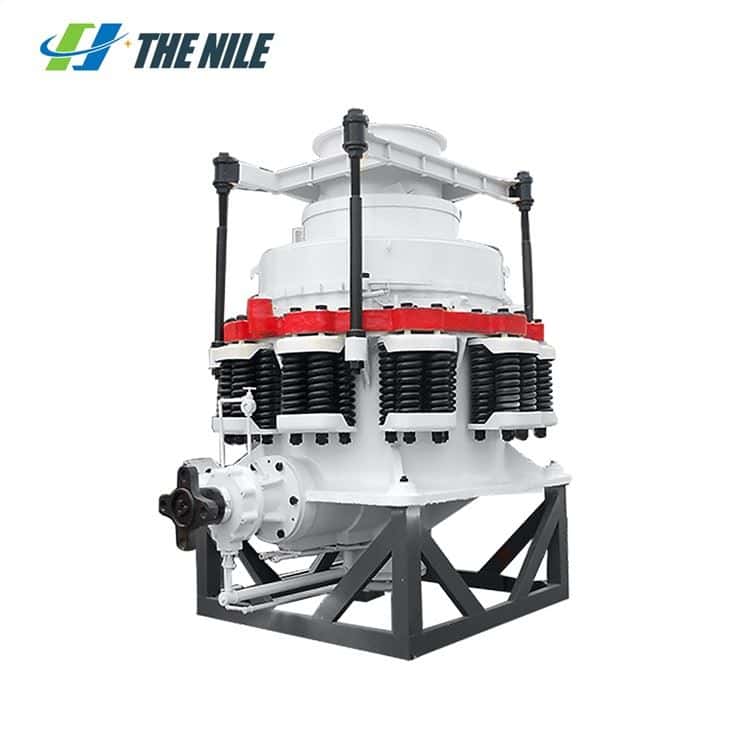

Spring Cone Crusher Machine

Spring conestonecrushers are mainly divided into PY series spring cone crushers and composite spring cone crushers, which are suitable for fine crushing and ultrafine crushing of hard rocks, ore, slag, refractory materials, etc. Spring stone cone crushers are widely used in the metallurgical industry, construction industry, road construction industry, chemical industry, and phosphate industry.

Features:

1. High production efficiency

The moving cone of the spring cone crusher machine rotates continuously, and the crushing process and the unloading process of the material are alternately and continuously carried out along the working surface, and the production efficiency is high.

2. Low power consumption and long product life

The material to be crushed is sandwiched between the two cones of the spring cone crushermachineryand is subjected to squeezing, bending, and shearing. The crushing is easier and the power consumption is low.

3. Adopting the principle of lamination and crushing, the product size is uniform

The material crushed by the spring stone cone crusher equipment is cubic. When the moving cone rotates, there are parallel belts with equal gaps between the moving cone and the fixed cone, so that the grain size of the finished product is uniform, and the wear of the working surface of the moving cone is also uniform.

4. Stable and reliable

The spring cone crusher device adopts a dry oil sealing method, which makes it difficult for dust and impurities to enter the body, so that the lubricating oil is cleaned, and the service life of the sliding bearing and thrust ball bearing is prolonged so that the machine runs reliably.

Precautions:

1. Select the appropriate crushing chamber capacity and appropriate feed size ratio

2. Whether the material is evenly distributed after entering the crushing cavity

3. Keep the discharge opening unobstructed to avoid accidents caused by equipment overload due to poor discharge

4. The material containing viscous substances will reduce the overall production efficiency

5. The discharge capacity of the crusher should be consistent with the conveying capacity of the belt conveyor

FAQ:

Q: Why does the crusher appear "stuffy car" phenomenon?

A: The machine has been in electrical failure caused by overloading work for a long time; the triangle tape is too loose and slipping occurs; the ore is too sticky and the crushing cavity is blocked; the discharge port is too small, and ore accumulates under the crusher.

Q: Why does the crusher vibrate suddenly and the moving cone rotates quickly?

A: The main shaft is stuck in the cone bushing; the parts of the crushing equipment are short of oil or the oil contains impurities and is not clean; the spherical bush is worn, or the moving cone sinks due to other reasons, and the gap between the main shaft and the cone bushing is too small.

Q: Why does a large amount of ore suddenly increase in the equipment?

A: Because of the wear of the broken wall and the wall of the rolling mortar, we can readjust the gap and replace the broken cavity and the wall of the rolling mortar.

Company strength:

The Nile Machinery has successfully developed the African market with the help of online and offline channels such as Alibaba and exhibitions. An overseas warehouse was established in Sudan in 2015, and a factory was established in Kenya in 2019 and put into production and has agencies in other regions.
