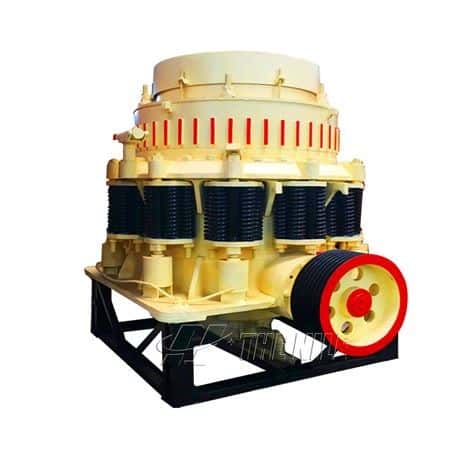

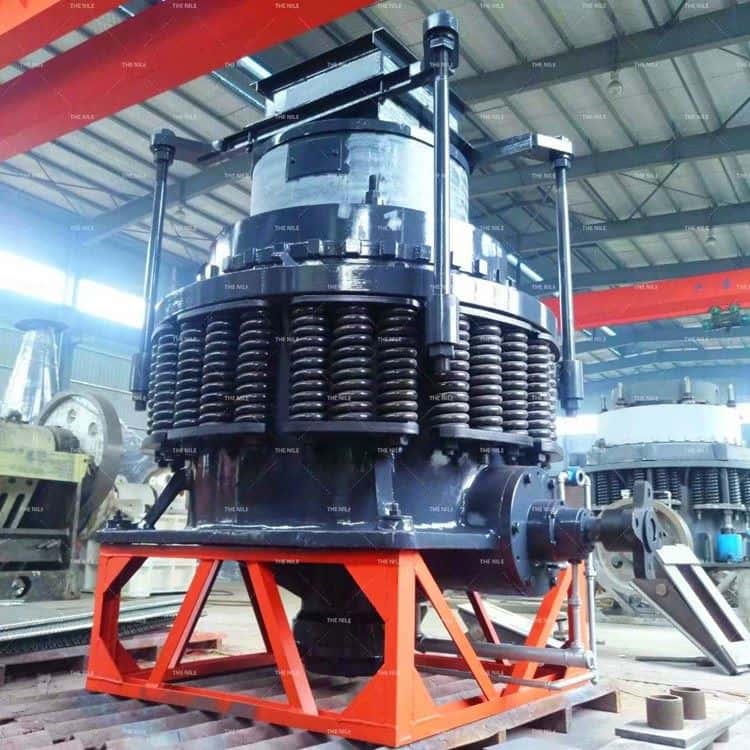

Processing Materials: Popular cone crusher is widely used in sand and gravel yard, concrete sand making, dry powder mortar, construction waste, machine-made sand, power plant desulfurization and other industries. It is used to crush various ores and rocks with medium and above hardness (below 350 MPa), such as limestone, granite, calcite, limestone, granite, river pebble, dolomite, bluestone, etc.
Technical Parameters
Model NO. | Cavity Type | Max. Feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
PSGB0607 | Standard fine | 60 | 6-30 | 16-50 | 22 | 4.5 |
PSGB0609 | Standard medium | 80 | 10-38 | 18-65 | 22 | 4.5 |
PSGB0611 | Standard coarse | 90 | 13-38 | 22-70 | 22 | 4.5 |
PSGD0603 | Short head fine | 35 | 3-13 | 9-35 | 22 | 4.5 |
PSGD0605 | Short head coarse | 50 | 5-16 | 22-70 | 22 | 4.5 |
PSGB0910 | Standard fine | 85 | 9-22 | 45-91 | 75 | 9.98 |
PSGB0917 | Standard coarse | 150 | 13-38 | 59-163 | 75 | 9.98 |
PSGB0918 | Standard extra coarse | 150 | 25-38 | 118-163 | 75 | 9.98 |
PSGD0914 | Short head fine | 35 | 3-13 | 27-90 | 75 | 10.53 |
PSGD0906 | Short head medium | 65 | 3-16 | 27-100 | 75 | 10.53 |
PSGD0907 | Short head coarse | 85 | 6-19 | 59-129 | 75 | 10.53 |
PSGB1313 | Standard fine | 115 | 13-31 | 109-181 | 160 | 22.46 |
PSGB1321 | Standard medium | 178 | 16-38 | 132-253 | 160 | 22.46 |
Working Principle of Popular Cone Crusher
In the working process of the popular cone crusher, the motor drives the eccentric sleeve to rotate through the transmission device, and the moving cone rotates and swings under the force of the eccentric shaft sleeve. The section of the moving cone near the static cone becomes the crushing cavity, and the material is crushed by the repeated extrusion and impact of the moving cone and the static cone. When the moving cone leaves the section, the material which has been crushed to the required particle size falls under its own gravity and is discharged from the bottom of the cone.
Advantages of Popular Cone Crusher
1.The overall sealing is strengthened to reduce dust in the crusher during operation and reduce dust leakage from the cone crusher machine body. At the same time, dust collectors and silencer equipment are installed to realize environmentally friendly production, and the work is more energy-saving and lowers carbon operations.
2.When the unbreakable foreign matters pass through the crushing cavity or the popular cone crusher machine is overloaded for some reason, the spring safety system can realize the safety and increase the ore discharge. The foreign matter is discharged from the crushing cavity. If the foreign matter is stuck in the ore discharge port, the cavity cleaning system is used to make the ore discharge continue to increase and the foreign matter is discharged from the crushing cavity of the cone crusher.
3.The large-diameter spindle and heavy-duty mainframe ensure the cone crusher equipment's durability and reliable operation.
4.The independent thin oil lubrication system with multi-point control can ensure double protection of bearing lubrication.
5.The over iron protection device and automatic control system can realize automatic safety protection.
Technical Parameters of Popular Cone Crusher
Model NO. | Cavity Type | Max. Feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
PSGB0607 | Standard fine | 60 | 6-30 | 16-50 | 22 | 4.5 |
PSGB0609 | Standard medium | 80 | 10-38 | 18-65 | 22 | 4.5 |
PSGB0611 | Standard coarse | 90 | 13-38 | 22-70 | 22 | 4.5 |
PSGD0603 | Short head fine | 35 | 3-13 | 9-35 | 22 | 4.5 |
PSGD0605 | Short head coarse | 50 | 5-16 | 22-70 | 22 | 4.5 |
PSGB0910 | Standard fine | 85 | 9-22 | 45-91 | 75 | 9.98 |
PSGB0917 | Standard coarse | 150 | 13-38 | 59-163 | 75 | 9.98 |
PSGB0918 | Standard extra coarse | 150 | 25-38 | 118-163 | 75 | 9.98 |
PSGD0914 | Short head fine | 35 | 3-13 | 27-90 | 75 | 10.53 |
PSGD0906 | Short head medium | 65 | 3-16 | 27-100 | 75 | 10.53 |
PSGD0907 | Short head coarse | 85 | 6-19 | 59-129 | 75 | 10.53 |
PSGB1313 | Standard fine | 115 | 13-31 | 109-181 | 160 | 22.46 |
PSGB1321 | Standard medium | 178 | 16-38 | 132-253 | 160 | 22.46 |
