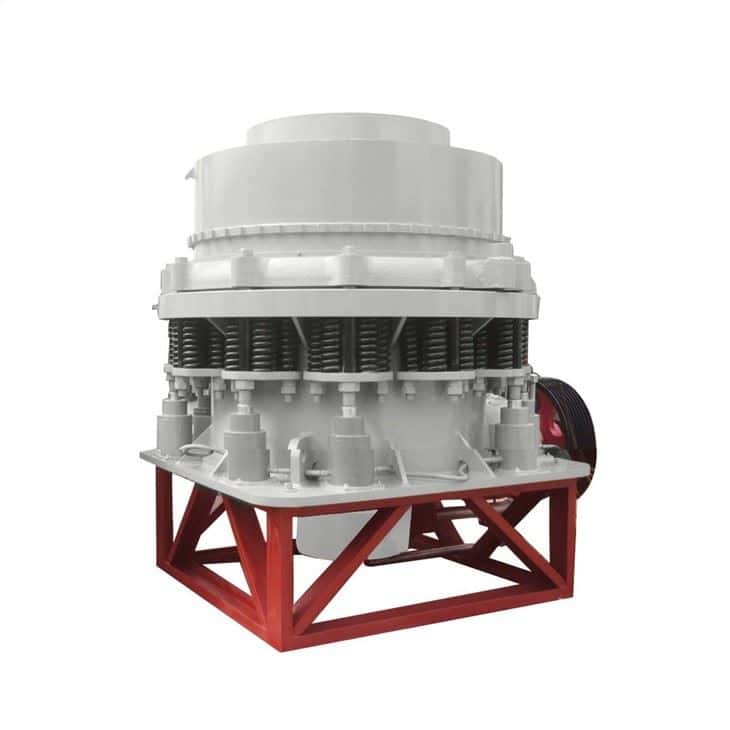

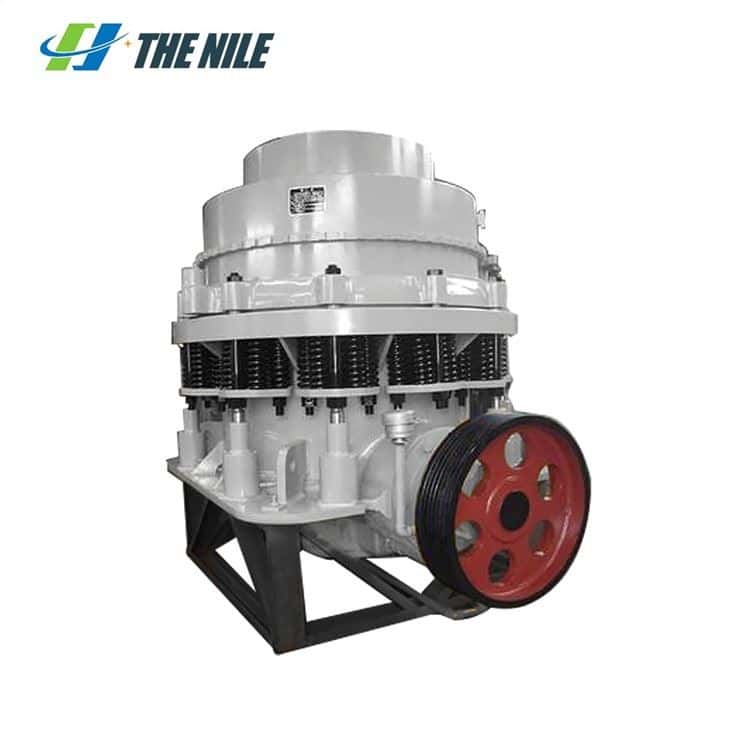

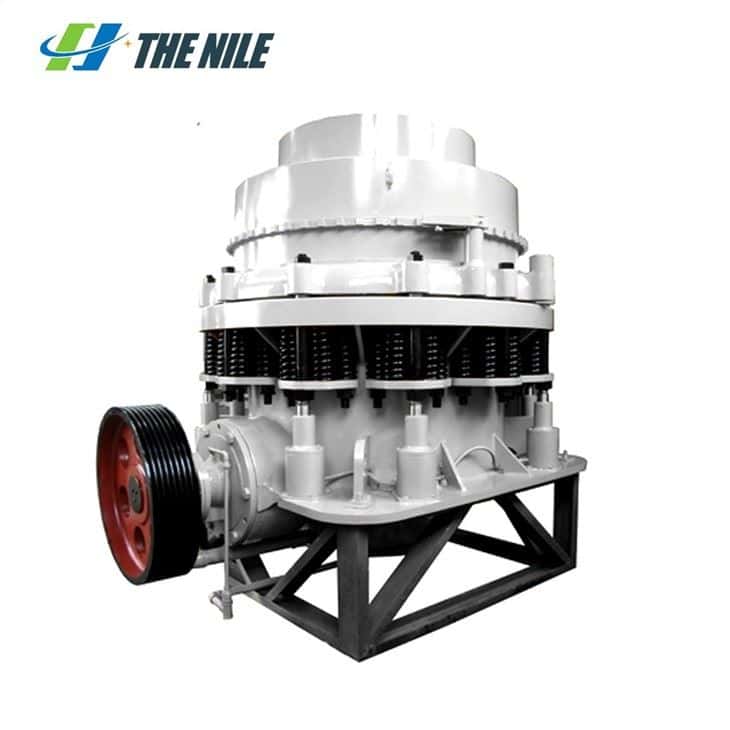

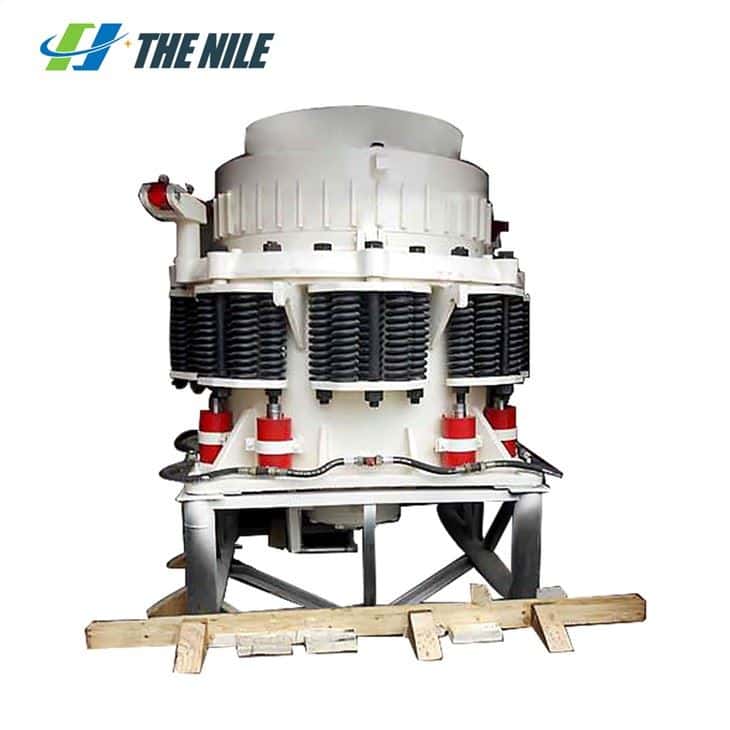

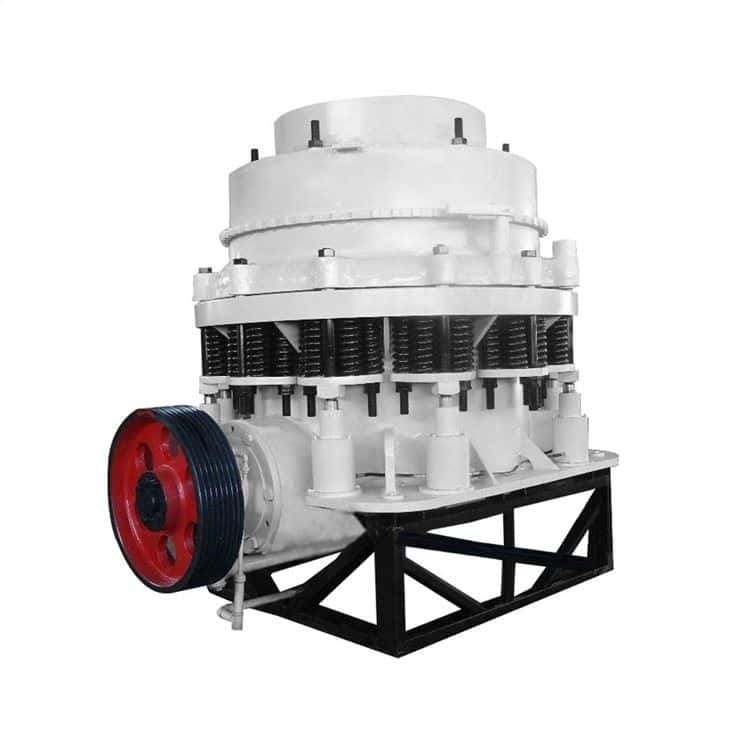

Symons Cone Crusher Equipment

Product Introduction：

PSG series cone crusher equipment is a modern high-performance crusher designed and developed based on the principle of lamination crushing and the concept of "more breaking and less grinding" based on the advanced technology introduced by our company and based on user needs, integrating optimized cavity shape and reasonable stroke. It is suitable for crushing various ores and rocks with medium and above medium hardness, such as limestone, iron ore, diabase, river pebbles, etc.

Working principle:

When the Symonscone crushermachineis working, the motor drives the eccentric sleeve to rotate through the V-belt, large pulley, drive shaft, small bevel gear, and large bevel gear. The axis of the crushing cone rotates under the force of the eccentric shaft sleeve. The movement causes the surface of the crushing wall to approach and sometimes leave the surface of the mortar wall so that the material is re-covered in the annular crushing cavity composed of the moving cone and is continuously crushed by squeezing, impact, and bending. After many times of squeezing, impact, and bending, the material is crushed to the required particle size and discharged through the lower part.

Product advantages:

(1) Special structure, low operating cost

The body of the Symons cone crushersupplieradopts a cast steel structure, with strong ribs on the heavy-duty part, which has good sealing performance. What`s more,its internal safety device is equipped with short downtime.

(2) High degree of automation

Symons cone crusher machinery uses a set of external lubrication systems including an oil pump, oil tank, and pipeline. When the oil temperature is too high or the oil flow rate is too slow, the crusher will be automatically shut down.

(3) Convenient maintenance and simple operation

All parts of the Symons stone cone crusher can be disassembled from the upper part of the side to facilitate the disassembly of the fixed cone and the movable cone assembly. The hydraulic cavity cleaning system can quickly clean the crushing cavity, greatly reducing downtime.

(4) High production efficiency

Symonsconestonecrushers can crush medium and above materials, and there are four types of crushing chambers to choose from: coarse, medium, fine, and ultra-fine. Using the best combination of crushing frequency and eccentricity, the material to be crushed is more finely crushed, and the output is higher than that of similar models. At the same time, it also enhances the lamination and crushing effect between the material particles, and effectively improves the material after crushing. The three-dimensional shape.

(5) Long service life

The Symons rock cone crusher adopts a dynamic sealing device, and the sealing ring and the moving cone are always in contact with each other under working conditions so that the core components of the Simmons cone crusher have a service life of 2-3 times longer than other cone crushers.

Care instructions:

1. We must regularly inject clean lubricating oil and seal on the rotating bearings, roller bearings, all gears, movable bearings, and sliding surfaces to improve the service life and operation rate of the machine.

2. The newly installed wheel tires are prone to looseness and must be checked frequently.

4. Pay attention to check the degree of wear of easily worn parts, and pay attention to the replacement of worn parts.

5. When placing the bottom frame of the movable device, pay attention to the removal of dust and debris to prevent the movable bearing from moving on the bottom frame when the machine encounters unbreakable materials

6. When the bearing oil temperature rises, stop immediately to check the cause and eliminate it.

7. If there is an impact sound when the rotating gear is running, stop and check it immediately and eliminate it.
