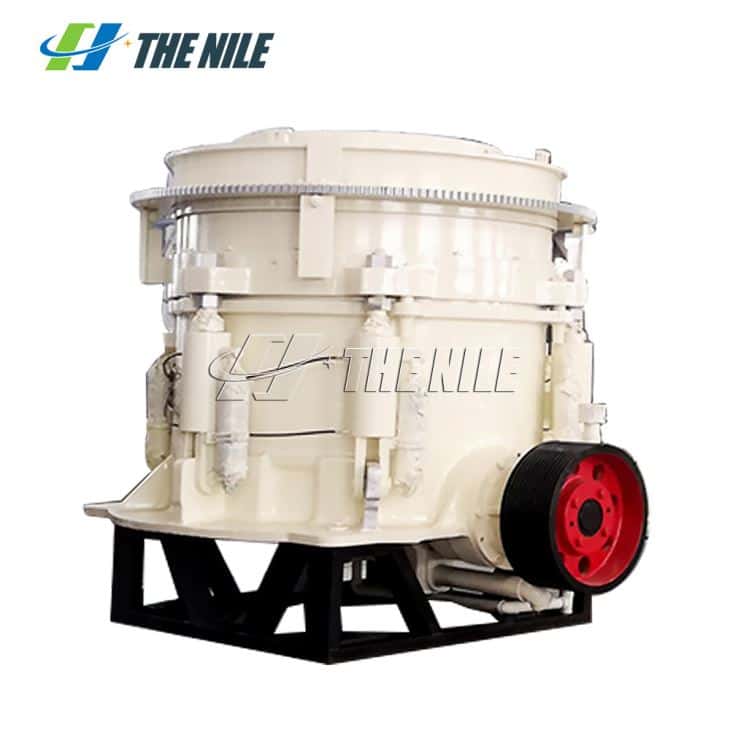

The Cone Crusher Spare Parts include crushing walls, rolled mortar walls, bowl bearings, copper sleeves, etc. Since the cone crusher is very popular in the stone crushing industry, the Cone Crusher Spare Parts are in great demand every year in the world.
Product Introduction
The Cone Crusher Spare Parts include crushingwalls, rolled mortar walls, bowl bearings, copper sleeves, etc. The crushing wall is one of the main components of the cone crusher, also known as the moving cone. It is fixed on the cone body with the cone head. It is forged with a new type of composite material, with the prominent features of wear resistance, high cost effective as well as wide application range.
The mortar wall of the Cone Crusher Spare Parts and the crushing wall are the main parts that work together in the cone crushing to crush the material. Because the rolled mortar walls are fixed, they are also called fixed cones.All of these parts have the advantages of long service life, compact structure, delicate design, corrosion resistance, high strength, impact resistance as well as high cost effective. Since the cone crusher is very popular in the stone crushing industry, the Cone Crusher Spare Partsare in great demand every year in the world.
Technical parameter
Model | Type of cavity | Min output | Feed opening size | Capacity | Motor power | Moving cone diameter |
(mm) | (mm) | (t/h) | (kw) | (mm) | ||
HPY200 | C | 13 | 150 | 120-240 | 160 | 950 |
F | 6 | 76 | 55-180 | |||
HPY300 | C | 13 | 225 | 150-430 | 220 | 1160 |
F | 6 | 86 | 90-260 | |||
HPY400 | C | 13 | 290 | 190-610 | 315 | 1400 |
F | 6 | 100 | 108-320 | |||
HPY500 | C | 13 | 320 | 230-700 | 400 | 1500 |
F | 6 | 110 | 145-430 | |||
HPY800 | C | 13 | 350 | 325-1150 | 630 | 1800 |
F | 8 | 120 | 245-730 |
