Cone Crusher Manual PDF

Product description

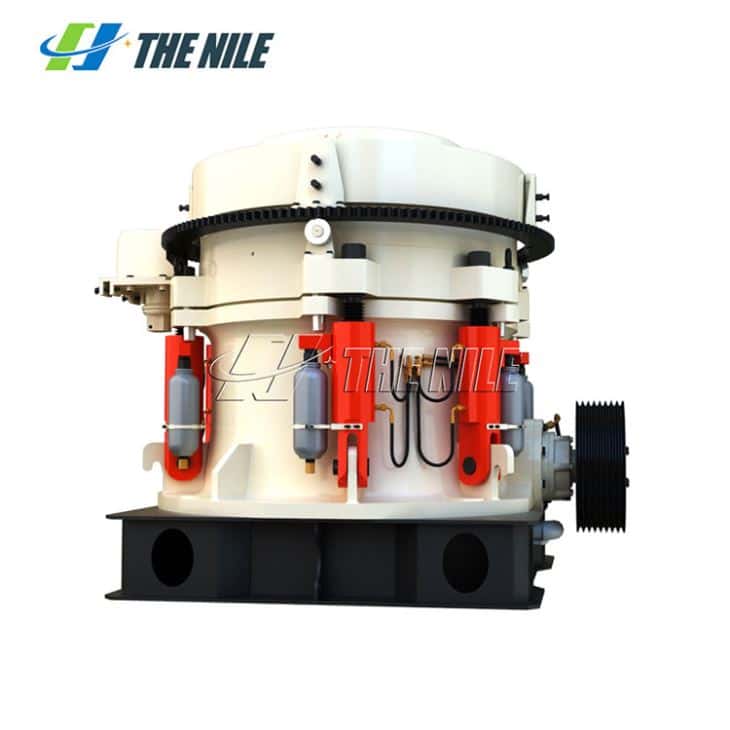

The multi-cylinder hydraulic cone crusher manual PDF (high-efficiency hydraulic cone crusher) is a typical crushing device for medium and fine crushed hard materials. It breaks through the previous design concept of conical broken structure, adopts advanced spindle fixing, eccentric sleeve rotating structure around the main shaft, and uses the laminating crushing principle to significantly improve the crushing capacity and product quality. The hydraulic lubrication system is designed to ensure reliable operation of the equipment. Therefore, the cone crusher has the characteristics of high reliability, low energy consumption, high crushing efficiency, high degree of automation, simple operation and maintenance, good grain shape and low cost of wearing parts, and can fully satisfy various crushing requirements of customers.

Applicable fields: applied to mining, metallurgy, construction, chemical, electric power, transportation and other industries, able to break all kinds of hard stone and rock.

Applicable materials: various coarse, medium and fine materials with compressive strength not exceeding 350MPa, such as: river pebble, granite, basalt, iron ore, shale, limestone, coal gangue, quartz stone, diabase, marble, copper Ore, pebbles, etc.

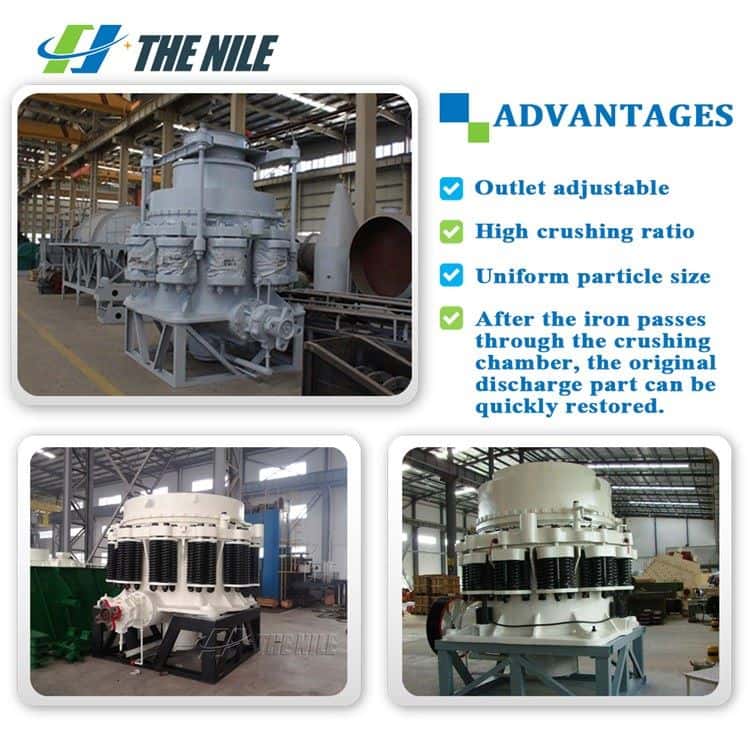

Product advantages

High crushing efficiency and unique structure

It adopts unique spindle fixed structure, eccentric sleeve rotating structure around the main shaft, optimized transmission components and internal structure design, strong equipment carrying capacity, large installed power, small size, high efficiency and low noise.

Hydraulic system for easy operation and easy maintenance

With full hydraulic control, the equipment is cleaned from the safety chamber to the adjustment and locking. It is hydraulically operated, the work is more stable and reliable, the operation is convenient, the downtime is reduced, and the fully automated operation can be realized.

High degree of automation in equipment control

Equipped with integrated hydraulic lubrication system and centralized intelligent intelligent control system, it not only saves the cost of hydraulic lubrication input, but also monitors the running status of the equipment in real time, ensures the stable operation of the equipment, and makes the operation of the equipment more worry-free and labor-saving.

Working principle

When the multi-cylinder hydraulic cone crusher is working, the motor drives the eccentric sleeve to rotate through the V-belt, the transmission shaft and the bevel gear pair. The moving cone performs the swing motion under the action of the eccentric sleeve, so that the moving cone and the fixed cone are sometimes close to each other. The material is continuously crushed and impacted in the crushing chamber and is broken, and the broken material is discharged from the lower portion.
