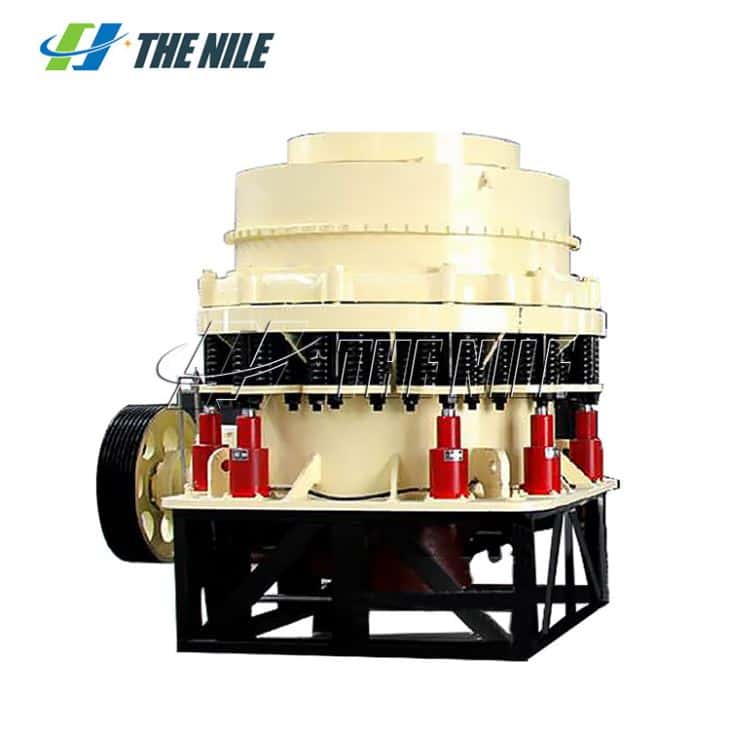

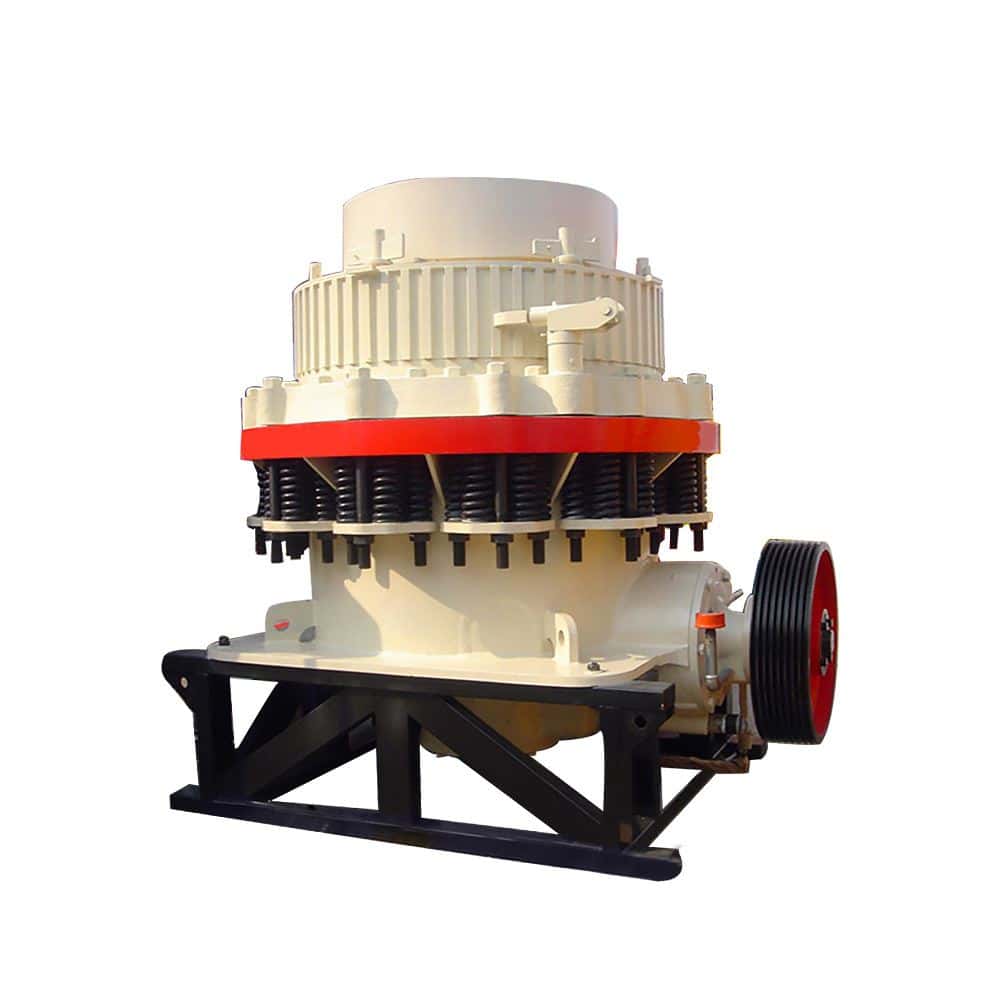

This kind of 7 Feet Symons Cone Crusher is made of high quality material with advanced technology. It is widely used in building materials, road building, chemical, silicate and other fields. It is suitable for various ores and rocks with medium and above hardness.
Product Description
This kind of 7 Feet Symons Cone Crusher is made of high-quality material with advanced technology. It is widely used in building materials, road building, chemical, silicate, and other fields. It is suitable for various ores and rocks with medium and above hardness. It also has the propertiesof a large crushing ratio, high efficiency, a large amount of processing, low operating cost,delicate design, low failure rate, high cost-effectiveness, and durability.
Besides, theseal of the 7 Feet Symons Cone Crusher is sealed with grease, avoidingthe disadvantages of water supply and drainage systems whichare easy to be blocked and water-oil miscibility. It is also equipped with a spring insurance system, whichis an overload protection device tomake foreign materials and iron blocks pass through the crushing chamber without damaging the crusher.The 7 Feet Symons Cone Crusher receives a good reputation among our clients all over the world due to excellent performance and high cost-effective.
Technical date
Model NO. | Cavity Type | Max. Feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
PSGB0607 | Standard fine | 60 | 6-30 | 16-50 | 22 | 4.5 |
PSGB0609 | Standard medium | 80 | 10-38 | 18-65 | 22 | 4.5 |
PSGB0611 | Standard coarse | 90 | 13-38 | 22-70 | 22 | 4.5 |
PSGD0603 | Short head fine | 35 | 3-13 | 9-35 | 22 | 4.5 |
PSGD0605 | Short head coarse | 50 | 5-16 | 22-70 | 22 | 4.5 |
PSGB0910 | Standard fine | 85 | 9-22 | 45-91 | 75 | 9.98 |
PSGB0917 | Standard coarse | 150 | 13-38 | 59-163 | 75 | 9.98 |
PSGB0918 | Standard extra coarse | 150 | 25-38 | 118-163 | 75 | 9.98 |
PSGD0914 | Short head fine | 35 | 3-13 | 27-90 | 75 | 10.53 |
PSGD0906 | Short head medium | 65 | 3-16 | 27-100 | 75 | 10.53 |
PSGD0907 | Short head coarse | 85 | 6-19 | 59-129 | 75 | 10.53 |
PSGB1313 | Standard fine | 115 | 13-31 | 109-181 | 160 | 22.46 |
PSGB1321 | Standard medium | 178 | 16-38 | 132-253 | 160 | 22.46 |
