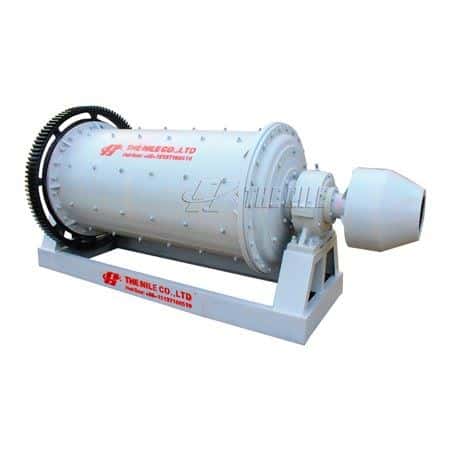

Ball Mill Grinder

Technical Parameters

Structural Characteristics of Ball Mill Grinder

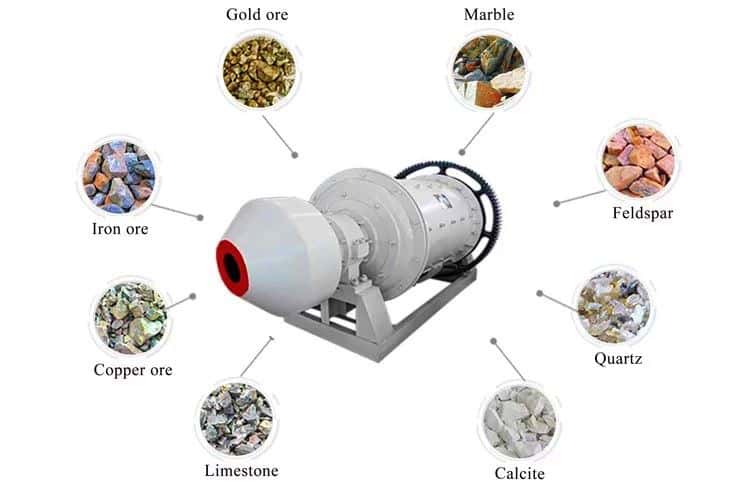

The ball mill grinder is composed of feeding part, discharging part, rotary part, reducer, small transmission gear, motor, electric control and other main parts. The hollow shaft is made of steel castings, and the inner lining is removable. The rotary gear is processed by casting gear hobbing and the cylinder is inlaid with wear-resistant lining plate, which has good wear resistance, which makes ball grinding mill machine runs smoothly and has reliable performance. According to the material and ore discharge method, dry ball mill and wet grid type ball mill can be selected.

Performance Characteristics of Ball Mill Grinder

1.Cylinder: Both ends of the cylinder are machined and drilled to fix the inner lining of the ball mill grinder cylinder.

2.End cover and trunnion: the inlet and outlet ends of the ball mill equipment are designed and produced by castings, and connected with the ball mill cylinder by bolts. The inlet and outlet end covers are fully designed with complete supporting trunnions. The trunnion of the inlet end cover is a fixed support, and the trunnion of the outlet end cover is a floating support.

3.Main bearing: the bearing is installed on the trunnion of the end cover of the ball mill machine, and the installation position is maintained through the pressure ring. The bearing seat is made of carbon steel.

4. Base: the main bearing seat, main gearbox and main drive motor are all installed on the base of mineral ball mill. The base is equipped with adjusting bolts for easy adjustment. All foundation bolts are included in the base.

5. Feeding part: the feeding system of the ball mill is composed of an inlet chute lined with wear-resistant material, a bearing seat and a base supporting its weight.
