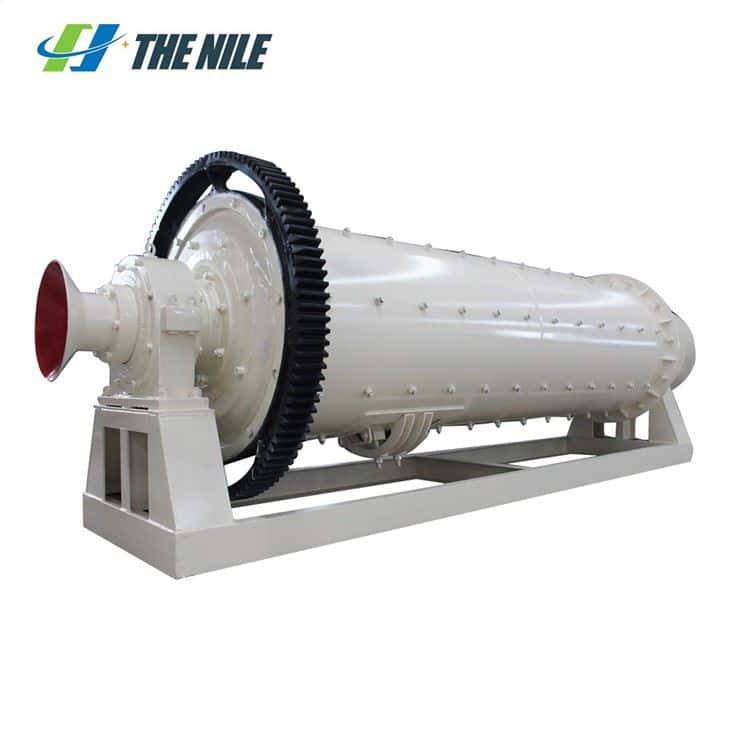

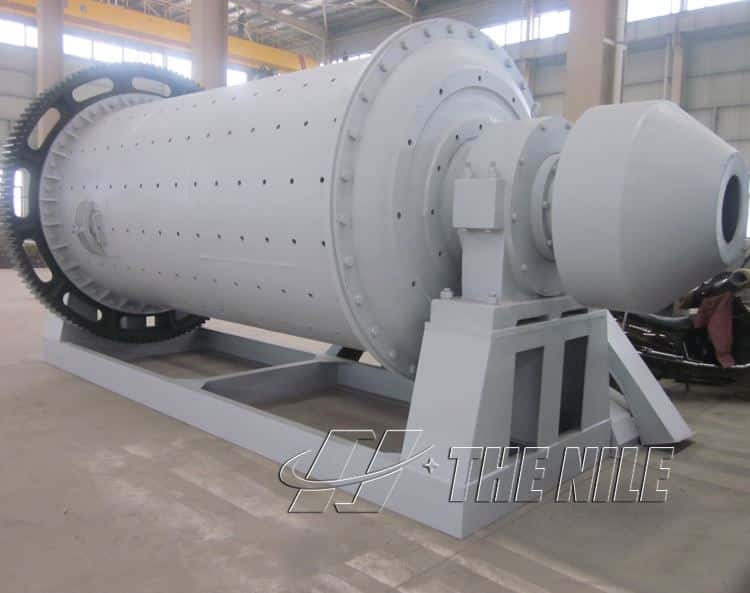

The dry ball grinding mill machine is a cylindrical tube mill, which is widely used in the dry mill production of various non-metallic materials such as cement and pulverized coal. It can grind feldspar, glass, dolomite, quartz, etc.
Product description
A dry ball grinding mill machine is the key equipment for crushing materials after crushing. It is widely used in the production of cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation, and glass ceramics.
Features of dry ball grinder mill machine
1. Strong adaptability to materials, continuous production, easy to adjust the fineness of grinding products.
2. The hollow shaft of the dry ball stone mill machine is made of cast steel, and the inner lining is removable and quick to replace.
3. The large rotary gear is processed by casting gear hobbing, and the cylinder body is inlaid with a wear-resistant liner, which has good wear resistance.
4. Straight pipe design of the discharge port and the dry ball mill equipment is equipped with an induced draft device, which has a good dust removal effect
Structural composition of dry ball mill for sale:
This machine is composed of a feeding part, discharging part, reducer, gear, motor, rotating part, and other main parts. The dry ball grinding mill machine is not only simple in structure but also easy to maintain.
The working principle of dry ball mill:
The dry grinding ball mill machine is a horizontal rotating device driven by external gear. The material is uniformly transported to the grinding chamber through the hollow shaft. There are step liners, corrugated liners, and steel balls of different specifications in the cavity. The centrifugal force generated by the rotation of the cylinder brings the steel ball to a certain height, and impacts and grinds the material. The ground material is discharged through the discharge plate to complete the grinding process.
FAQ:
Q1: Do you provide equipment operation training?
Answer: Yes. We can send professional engineers to the work site for equipment installation, commissioning, and operation training. All our engineers have passports.
Q2: How is the quality of your products?
A: Our products are manufactured in strict accordance with national and international standards, and we will test every device before shipment. We guarantee that if the quality of the product is different from the description we described before you place the order, we promise a 100% refund.
Q3: Is the price of the product reliable?
A: Yes, we are a manufacturer, and we have the strength to provide you with the lowest price compared to other distributors. However, our policy is "according to the order quantity, we will provide the lowest possible price with an absolutely honest business attitude".
| Model | Ball loading (t) | Feed size(мм) | capacity | Performance engine power (kW) | Weight |
| (t/h) | (T) | ||||
| Ф1200×4500 | 6.5 | ≤25 | 1.4-2 | 45 | 13.1 |
| Ф1500×5700 | 13 | ≤25 | 3.5-4.5 | 130 | 24 |
| Ф1830×6400 | 21.6 | ≤25 | 5.5-6.5 | 210 | 38 |
| Ф1830×7000 | 23.5 | ≤25 | 6-7 | 210 | 43 |
| Ф2200×6500 | 31.5 | ≤25 | 8-10 | 380 | 50.2 |
| Ф2200×7500 | 36 | ≤25 | 10-11 | 380 | 53.2 |
| Ф2200×8000 | 39 | ≤25 | 10-12 | 380 | 55 |
| Ф2200×9500 | 46 | ≤25 | 14-16 | 475 | 65 |
| Ф2400×11000 | 64 | ≤25 | 19-21 | 680 | 99.2 |
| Ф2400×13000 | 75.5 | ≤25 | 21-23 | 800 | 115.2 |
| Ф2600×13000 | 122 | ≤25 | 28-32 | 1000 | 148 |
| Ф3000×12000 | 109 | ≤25 | 32-35 | 1250 | 168.6 |
| Ф3000×13000 | 118 | ≤25 | 34-37 | 1400 | 172.3 |
| Ф3200×13000 | 185 | ≤25 | 45-50 | 1600 | 218 |
| Ф3800×13000 | 189 | ≤25 | 60-62 | 2500 | 286 |
| Ф4000×13000 | 231 | ≤25 | 85-87 | 3550 | 320 |
