Applied Field: Small stone crusher is widely used in metallurgy, construction, chemical industry, building materials industry, and is suitable for crushing hard and medium hard ores and rocks.

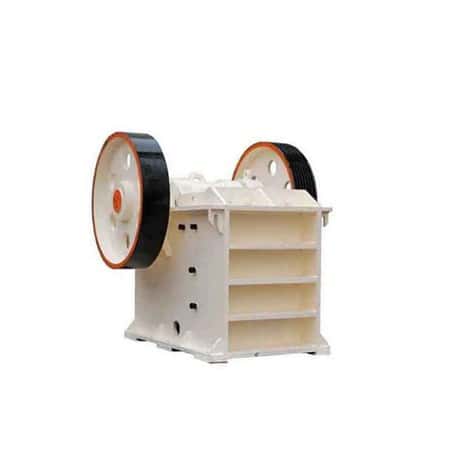

Introduction of Small Stone Crusher
Small stone crusher is suitable for crushing hard and medium hard ores and rocks, such as iron ore, limestone, quartz, granite, cement clinker, etc. It is mainly used for coarse crushing, medium crushing, and fine crushing of various materials with compressive strength no more than 320 MPa. The small stone crusher machine has been widely used in mining, smelting, building materials, highway, railway, water conservancy, and other departments.
Features of Small Stone Crusher
1.This machine is a new type of medium and fine crushing equipment and is widely used in the world to replace cone crusher, roller crusher, and ball mill.
2.Small stone crusher machine has a novel, unique structure and stable operation.
3.Small stone crusher has low energy consumption, high output, and large crushing ratio.
4.The small stone crushing plant is small in size, easy to operate, easy to install, and maintain.
5.The small stone crusher has the function of shaping and product is cubic with high packing density.
6.In the production process, the stone can form a protective bottom layer, which makes the fuselage of small stone crusher is wear-free and durable.
7.A small amount of easy-wearing parts of small stone crushers are made of super hard and wear-resistant materials, which are small in size, light in weight, and easy to replace parts.
8. Small stone crusher machine has little damage to the environment, especially the unique structure of the engine can reduce noise.
Technical Parameters of Small Stone Crusher
Model | Max. Feeding size | Discharge size | Capacity | Motor power | Weight | Dimension |
Pe150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
Pe250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
Pe400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
Pe400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
Pe500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
Pe600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
Pe750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
Pe900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
Pe1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
Pex150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
Pex250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
Pex250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
Pex250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
