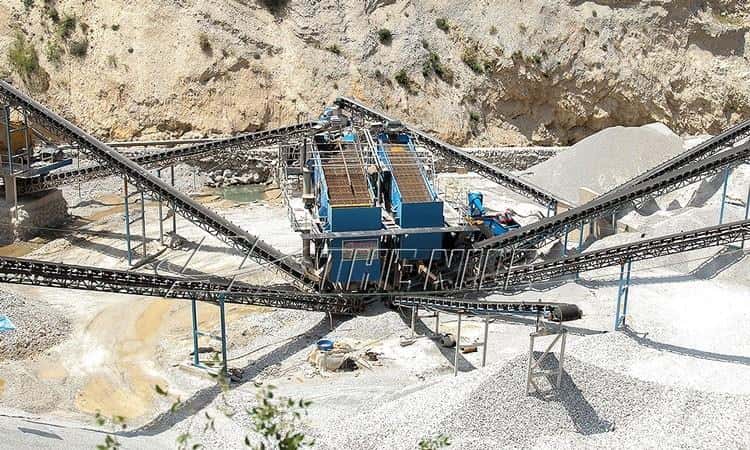

Applied Field: the feeding size of the circular vibrating screen is ≤400 mm and the production capacity is 25-900 m³/h. The circular vibrating screen is widely applied in sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc. It's used for processing quartz stone, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, etc.

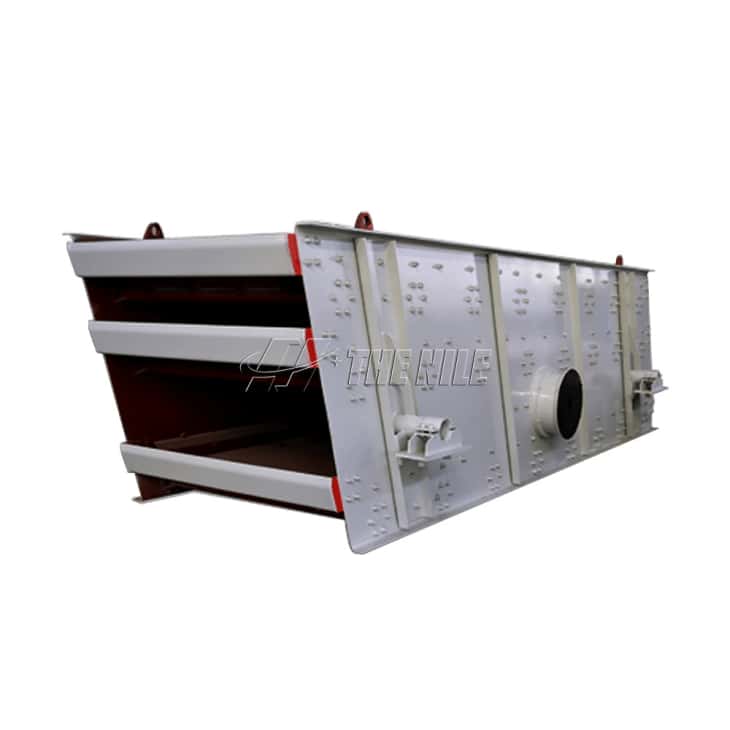

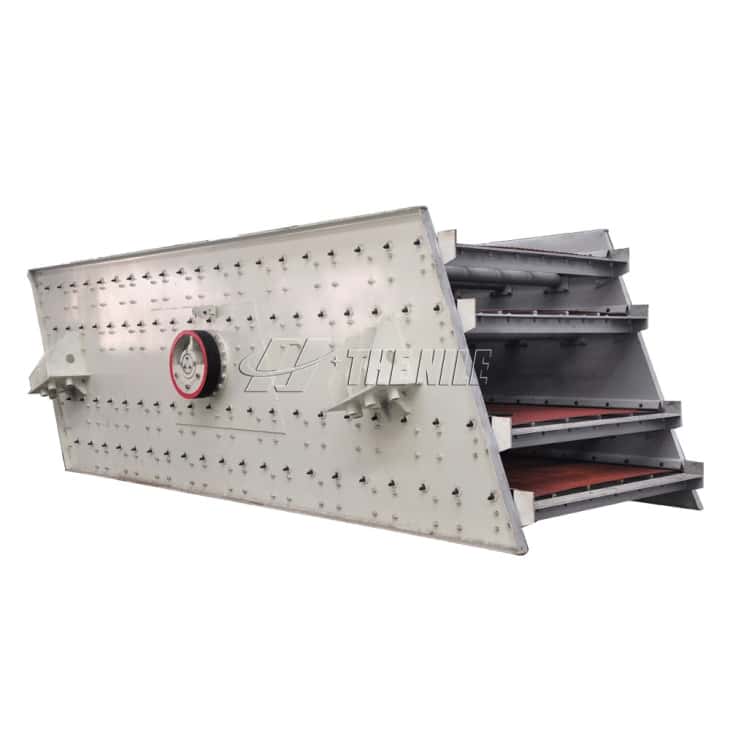

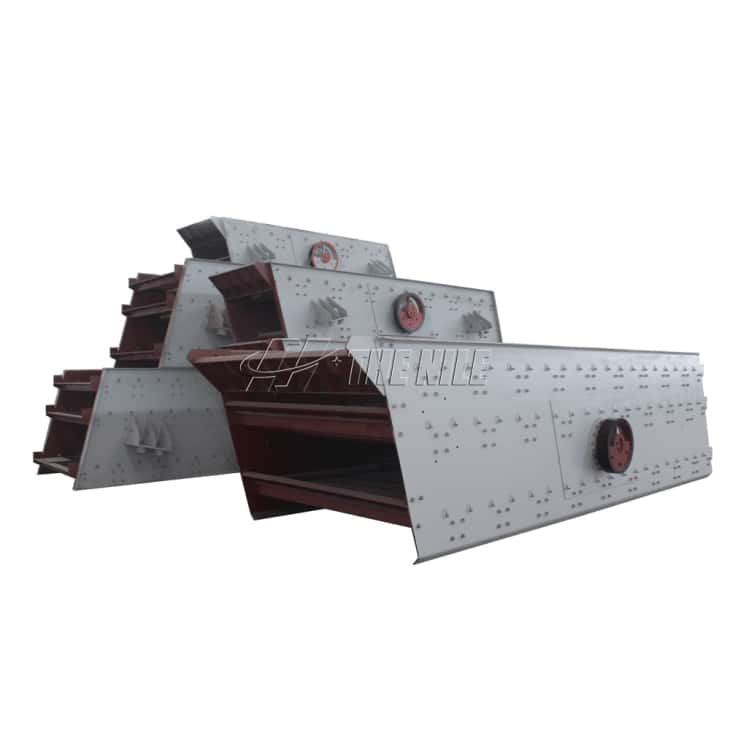

Description of Circular Vibrating Screen
The mesh is not clogged and the powder is not flying. The circular vibrating screen can be sieved to 500 mesh or 0.028 mm. Impurities and coarse materials of circular vibrating screen are automatically discharged and can be operated continuously. Equipped with a unique grid design, a circular vibrating screen is used for a long time, and the screen change is fast only 3-5 minutes. The sieve machine can reach up to five layers, and it is recommended to use three layers.

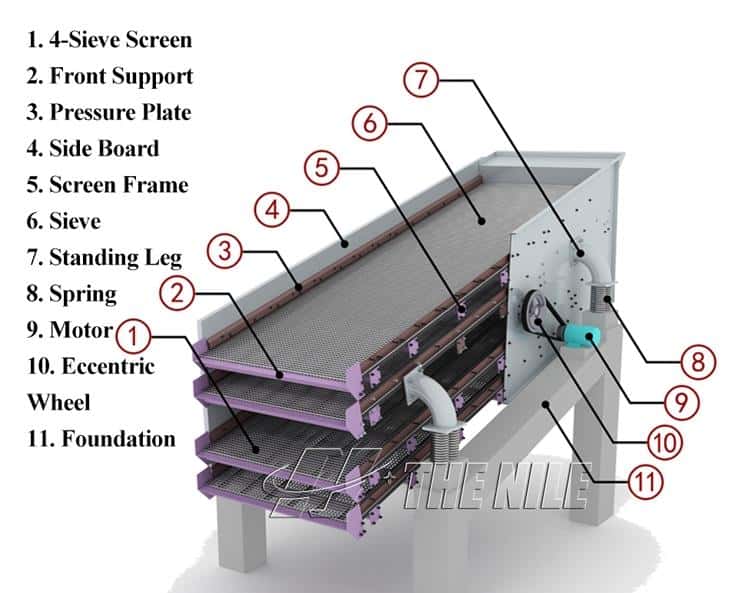

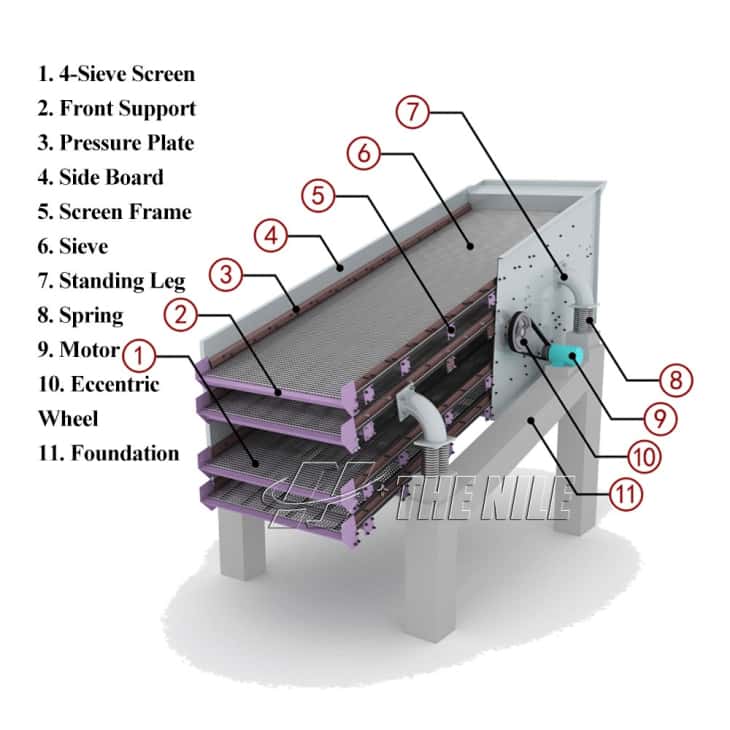

Working Principle of Circular Vibrating Screen The vibrating screen is to drive the vibrator through V-belt under the power of an ordinary motor so that the screen body along the vibrating power direction to make a cyclical reciprocating, the material in the screen surface to make the round movement, so as to make the materials sieved. |
Features of Circular Vibrating Screen 1. Simple and dependable Eccentric type system. 2. High screening capacity and High durability. 3. No transmission of screen panels. 4. Ready changing of screen plates. 5. Rigid and vibrating resistance screen body. |

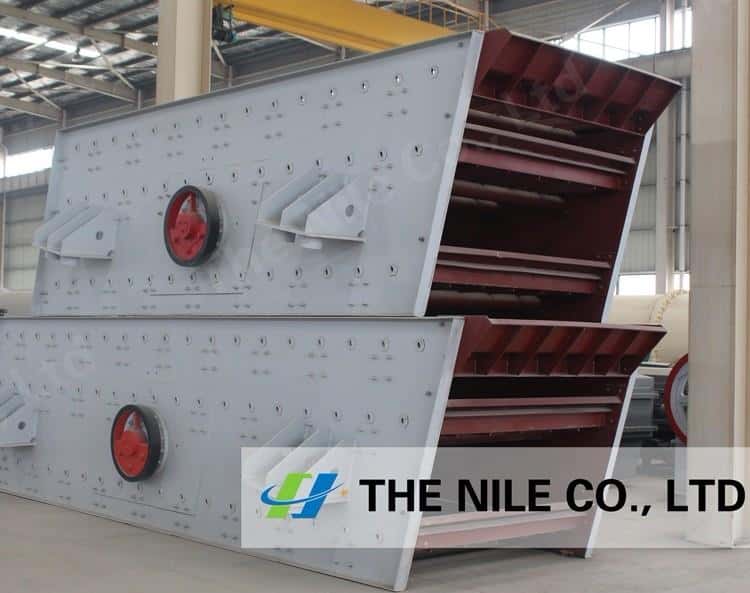

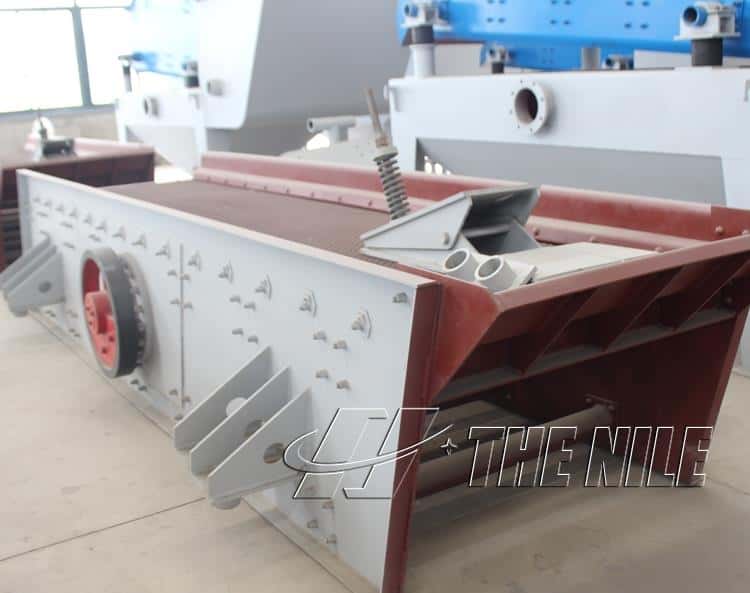

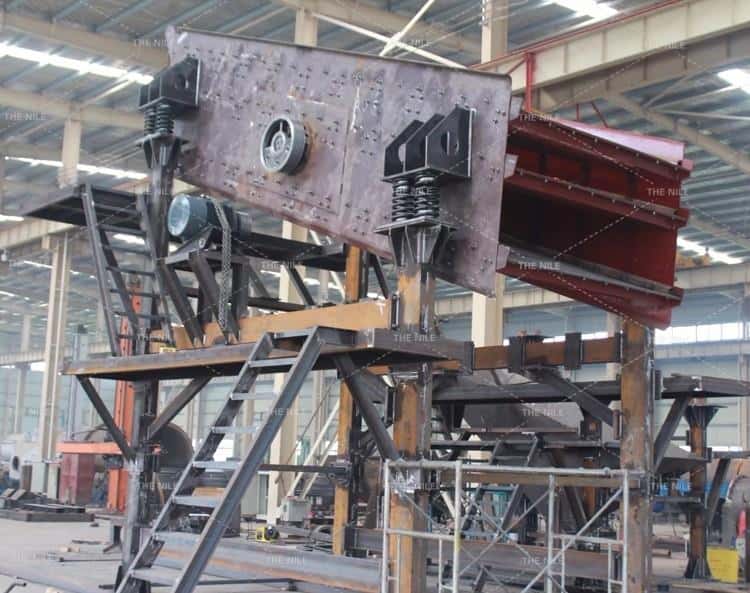

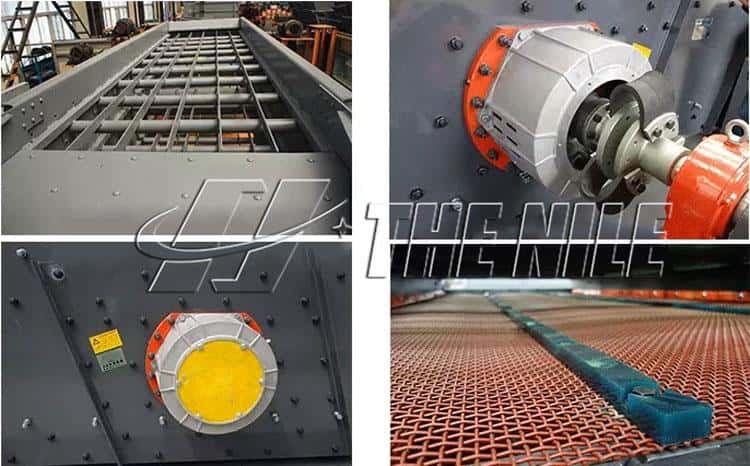

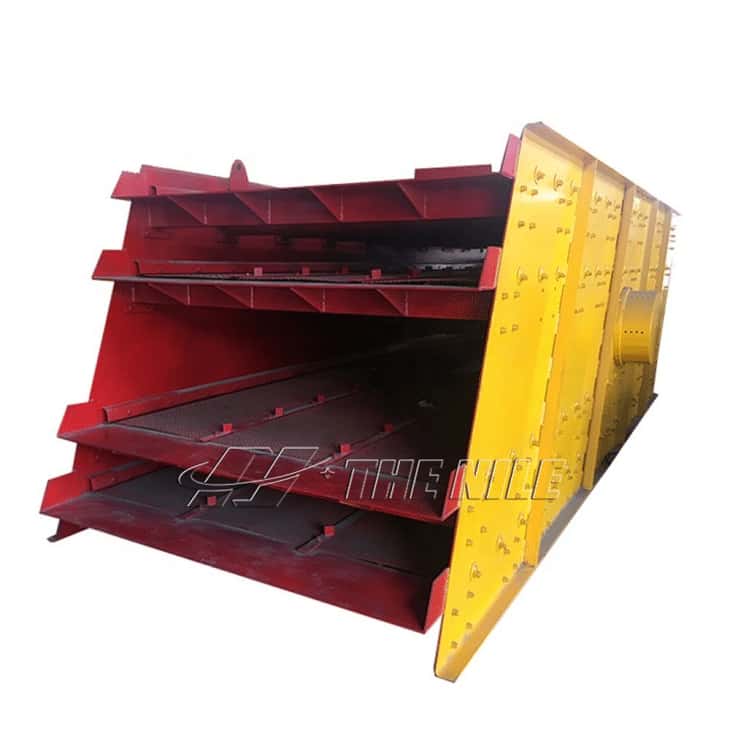

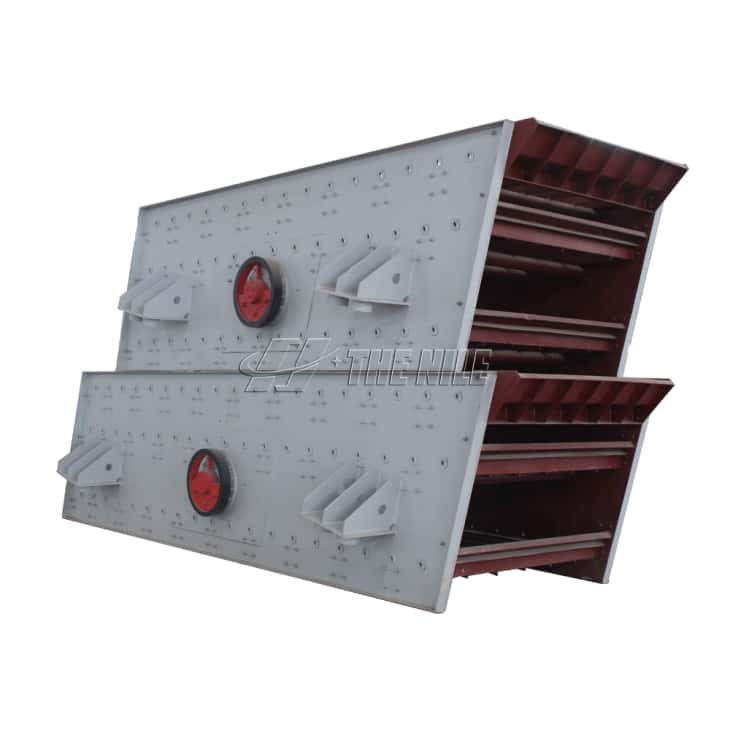

Details ofCircular Vibrating Screen

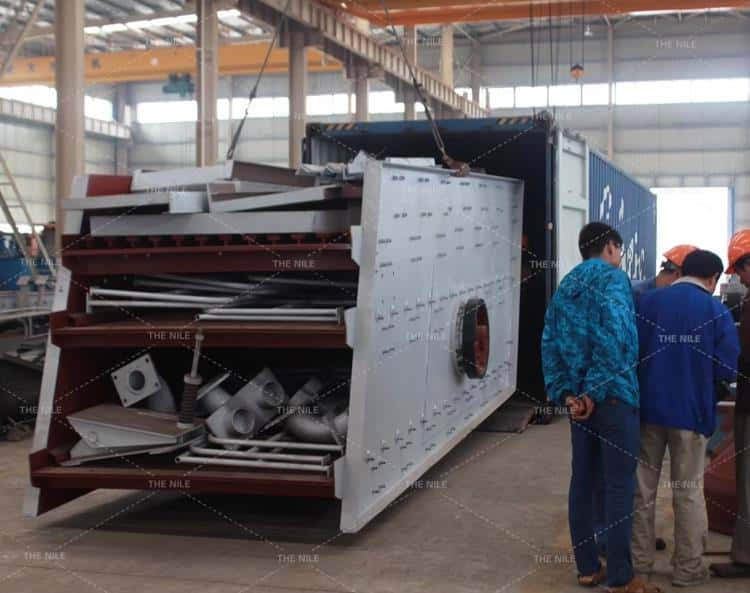

Packing&Shipping ofCircular Vibrating Screen
No more→
Model | Layers | Max Feed | Capacity | Screen Specification | Weight | Dimension |
2YK1225 | 2 | 400 | 8-60 | 1200×2500 | 3500 | 2930×1860×870 |
3YK1225 | 3 | 400 | 10-70 | 1200×2500 | 3850 | 3070×1860×1210 |
2YK1230 | 2 | 400 | 12-78 | 1200×3000 | 4200 | 3430×1860×870 |
3YK1230 | 3 | 400 | 13-80 | 1200×3700 | 4600 | 3570×1860×1210 |
2YK1237 | 2 | 400 | 15-86 | 1200×3700 | 4600 | 4050×1860×870 |
3YK1237 | 3 | 400 | 16-90 | 1500×3500 | 5200 | 4270×1860×1210 |
2YK1535 | 2 | 400 | 20-125 | 1500×3500 | 5890 | 4120×2210×1230 |
3YK1535 | 3 | 400 | 21-125 | 1500×3500 | 6700 | 4360×2210×1610 |
2YK1545 | 2 | 400 | 22-150 | 1500×4500 | 6330 | 5120×2210×1230 |
3YK1545 | 3 | 400 | 22-150 | 1500×4500 | 6800 | 5360×2210×1610 |
4YK1545 | 4 | 400 | 22-155 | 1500×4500 | 7800 | 5930×2210×2060 |
2YK1548 | 2 | 400 | 22.5-162 | 1500×4800 | 6980 | 5420×2210×1230 |
3YK1548 | 3 | 400 | 22.5-162 | 1500×4800 | 7700 | 5660×2210×1610 |
4YK1548 | 4 | 400 | 22.5-162 | 1500×4800 | 8700 | 6230×2210×2060 |
2YK1848 | 2 | 400 | 25-206 | 1800×4800 | 9080 | 5420×2550×1420 |
3YK1848 | 3 | 400 | 32-276 | 1800×4800 | 9600 | 5660×2550×1780 |
4YK1848 | 4 | 400 | 32-285 | 1800×4800 | 11100 | 6290×2550×2160 |
2YK1854 | 2 | 400 | 32-312 | 1800×5400 | 10150 | 5960×2550×1420 |
3YK1854 | 3 | 400 | 32-312 | 1800×5400 | 10840 | 6260×2550×1780 |
4YK1854 | 4 | 400 | 32-336 | 1800×5400 | 12840 | 6830×2550×2160 |
2YK2160 | 2 | 400 | 50-475 | 2100×2600 | 11780 | 6720×2840×1530 |
3YK2160 | 3 | 400 | 50-475 | 2100×2600 | 12800 | 7030×2840×1910 |
4YK2160 | 4 | 400 | 50-497 | 2100×2600 | 14800 | 7300×2840×2380 |
2YK2460 | 2 | 400 | 65-550 | 2400×6000 | 15600 | 7020×3140×1530 |
3YK2460 | 3 | 400 | 70-620 | 2400×6000 | 17600 | 7300×3140×1910 |
4YK2460 | 4 | 400 | 80-680 | 2400×6000 | 19600 | 7600×3140×2380 |
2YK3072 | 2 | 400 | 200-700 | 3000×7200 | 23600 | 7200×4520×4184 |
3YK3072 | 3 | 400 | 230-800 | 3000×7200 | 25500 | 7200×4520×4684 |
