Processing Materials: Round vibrating screen is used for screening operation of copper powder, ore, refractory materials, kaolin, lime, quartz sand, paint, etc, which is suitable for the industries such as Sand and gravel yard, mining, coal development, dry mortar, power plant desulfurization, etc.
Working Principle of Round Vibrating Screen

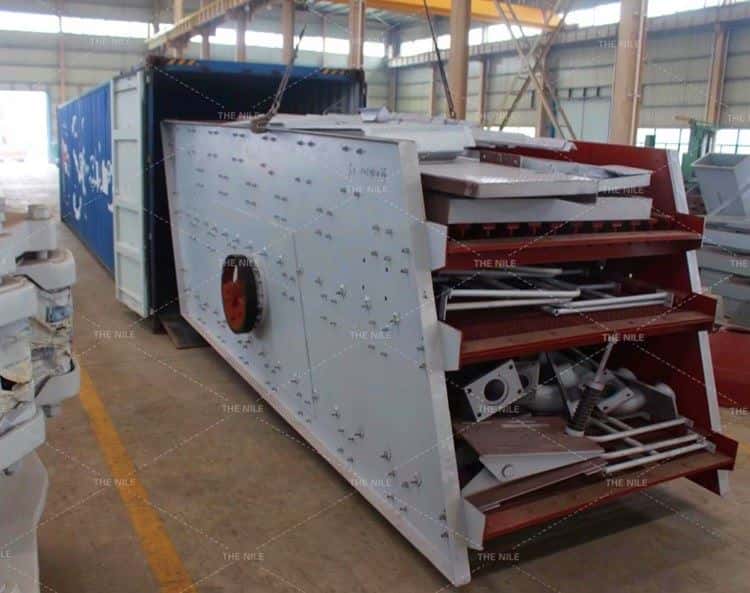

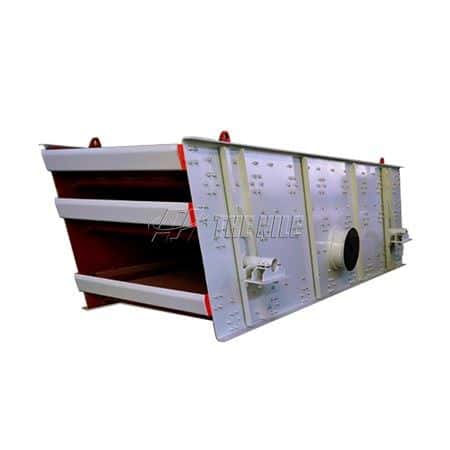

The round vibrating screen uses the common motor to pull the vibrator to make the screen body vibrate periodically along the direction of exciting force, and the materials move around on the screen surface, so as to achieve the screening purpose. It is composed of a vibration source, screen body, screen mesh, vibration reduction device, base, etc, which has a reasonable and durable structure.
Advantages of Round Vibrating Screen
1.Long service life, not easy to plug hole. The round vibrating screen adopts a spring steel woven screen or perforated screen plate, which has a long service life, strong vibration of the screen box, and difficulty in blocking holes.
2.High screening efficiency. Round vibrating screen adopts the new structure, advanced technical parameters, and large processing capacity.
3.Convenient maintenance. The round vibrating screen adopts a cylindrical eccentric shaft vibrator and eccentric block to adjust the amplitude, which is convenient for maintenance.
4. High yield and rapid production. The round vibrating screen can ensure long-term and rapid production, which not only saves the equipment operation cost but also improves the production capacity.
Technical Parameters of Round Vibrating Screen
Model | Layers | Max Feed | Capacity | Screen Specification | Weight | Dimension |
2YK1225 | 2 | 400 | 8-60 | 1200×2500 | 3500 | 2930×1860×870 |
3YK1225 | 3 | 400 | 10-70 | 1200×2500 | 3850 | 3070×1860×1210 |
2YK1230 | 2 | 400 | 12-78 | 1200×3000 | 4200 | 3430×1860×870 |
3YK1230 | 3 | 400 | 13-80 | 1200×3700 | 4600 | 3570×1860×1210 |
2YK1237 | 2 | 400 | 15-86 | 1200×3700 | 4600 | 4050×1860×870 |
3YK1237 | 3 | 400 | 16-90 | 1500×3500 | 5200 | 4270×1860×1210 |
2YK1535 | 2 | 400 | 20-125 | 1500×3500 | 5890 | 4120×2210×1230 |
3YK1535 | 3 | 400 | 21-125 | 1500×3500 | 6700 | 4360×2210×1610 |
2YK1545 | 2 | 400 | 22-150 | 1500×4500 | 6330 | 5120×2210×1230 |
3YK1545 | 3 | 400 | 22-150 | 1500×4500 | 6800 | 5360×2210×1610 |
4YK1545 | 4 | 400 | 22-155 | 1500×4500 | 7800 | 5930×2210×2060 |
2YK1548 | 2 | 400 | 22.5-162 | 1500×4800 | 6980 | 5420×2210×1230 |
3YK1548 | 3 | 400 | 22.5-162 | 1500×4800 | 7700 | 5660×2210×1610 |
4YK1548 | 4 | 400 | 22.5-162 | 1500×4800 | 8700 | 6230×2210×2060 |
2YK1848 | 2 | 400 | 25-206 | 1800×4800 | 9080 | 5420×2550×1420 |
3YK1848 | 3 | 400 | 32-276 | 1800×4800 | 9600 | 5660×2550×1780 |
4YK1848 | 4 | 400 | 32-285 | 1800×4800 | 11100 | 6290×2550×2160 |
2YK1854 | 2 | 400 | 32-312 | 1800×5400 | 10150 | 5960×2550×1420 |
3YK1854 | 3 | 400 | 32-312 | 1800×5400 | 10840 | 6260×2550×1780 |
4YK1854 | 4 | 400 | 32-336 | 1800×5400 | 12840 | 6830×2550×2160 |
2YK2160 | 2 | 400 | 50-475 | 2100×2600 | 11780 | 6720×2840×1530 |
3YK2160 | 3 | 400 | 50-475 | 2100×2600 | 12800 | 7030×2840×1910 |
4YK2160 | 4 | 400 | 50-497 | 2100×2600 | 14800 | 7300×2840×2380 |
2YK2460 | 2 | 400 | 65-550 | 2400×6000 | 15600 | 7020×3140×1530 |
3YK2460 | 3 | 400 | 70-620 | 2400×6000 | 17600 | 7300×3140×1910 |
4YK2460 | 4 | 400 | 80-680 | 2400×6000 | 19600 | 7600×3140×2380 |
2YK3072 | 2 | 400 | 200-700 | 3000×7200 | 23600 | 7200×4520×4184 |
3YK3072 | 3 | 400 | 230-800 | 3000×7200 | 25500 | 7200×4520×4684 |
